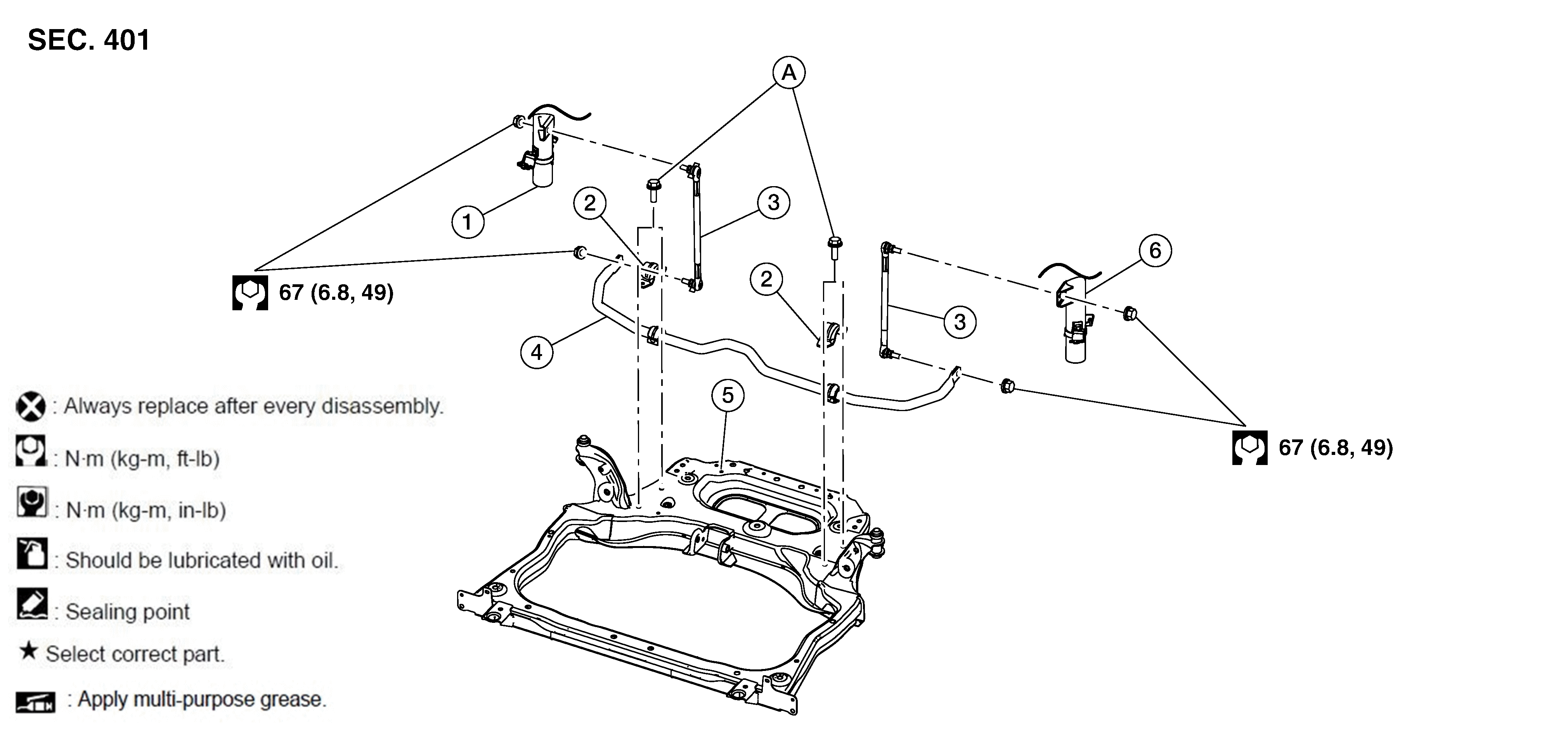

Exploded View
| 1. | Front coil spring and strut (RH) | 2. | Stabilizer bar clamp | 3. | Stabilizer bar connecting rod |
| 4. | Stabilizer bar | 5. | Front suspension member | 6. | Front coil spring and strut (LH) |
| A. | Refer to Removal and Installation . | ||||
| 1. | Front coil spring and strut (RH) | 2. | Stabilizer bar clamp | 3. | Stabilizer bar connecting rod |
| 4. | Stabilizer bar | 5. | Front suspension member | 6. | Front coil spring and strut (LH) |
| A. | Refer to Removal and Installation . | ||||
