Exploded View

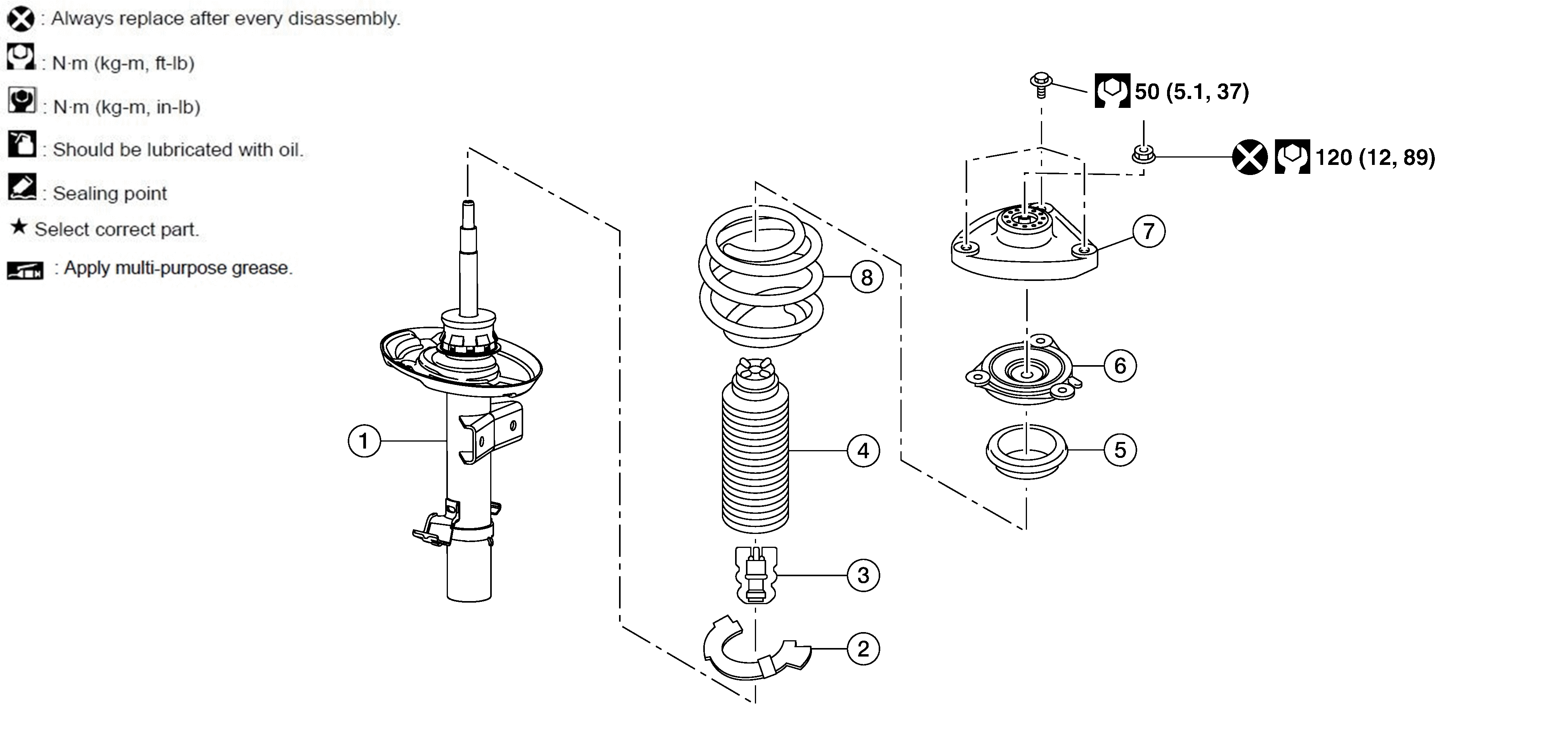

Fig 1: Front Coil Spring And Strut With Torque Specifications
GNSDB59491Courtesy of NISSAN
1. Strut 2. Lower rubber seat 3. Bumper bound
4. Dust cover 5. Upper spring seat 6. Strut mount bearing
7. Strut mounting insulator 8. Spring
