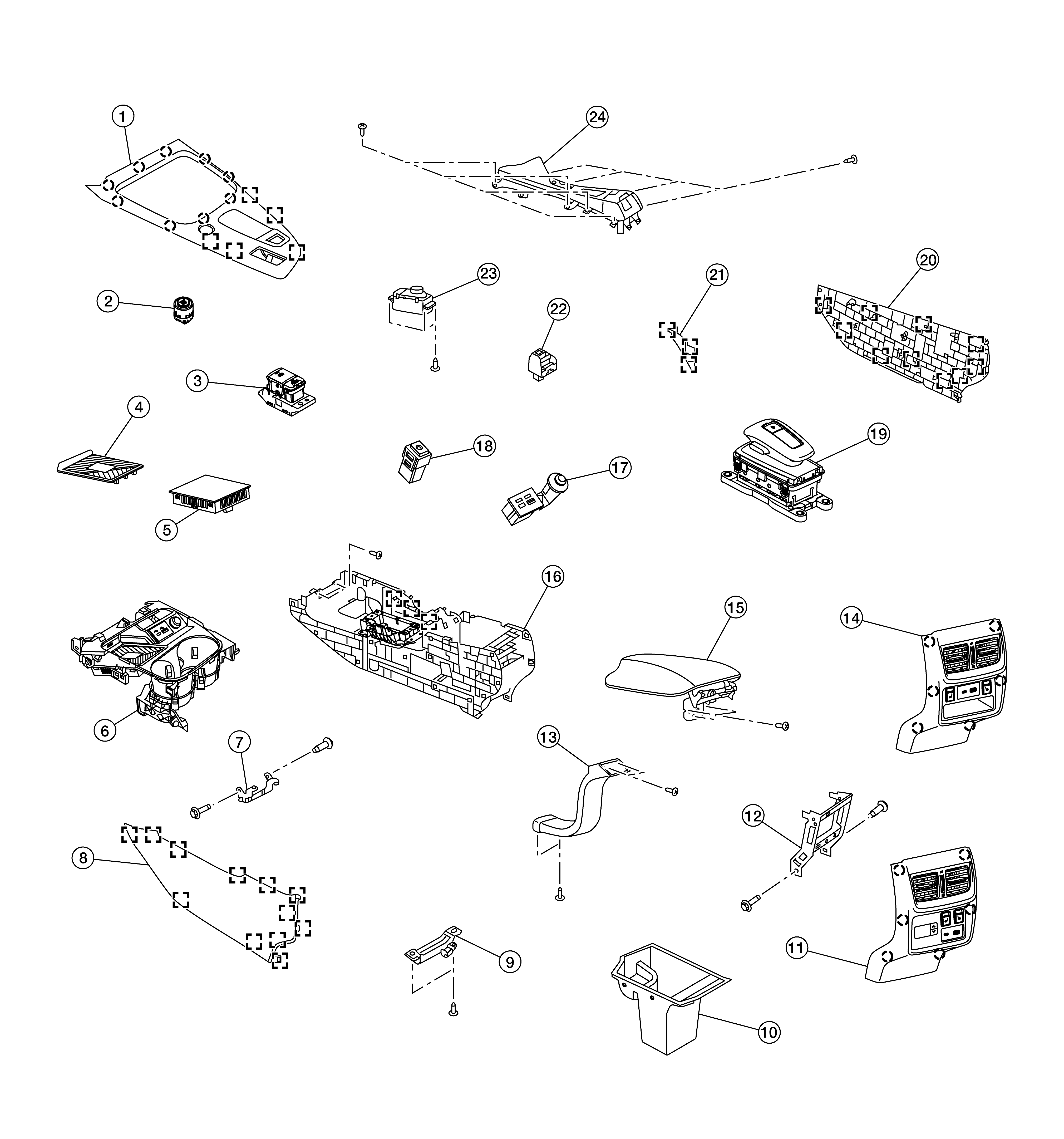

| 1. |
Shift selector finisher |
2. |
Push button ignition switch |
3. |
Electric parking brake switch |
| 4. |
Wireless charger mat |
5. |
Wireless charger unit |
6. |
Center console cup holder |
| 7. |
Center console brace |
8. |
Center console finisher (LH) |
9. |
Inside key antenna (center console) |
| 10. |
Center console bin |
11. |
Center console rear finisher (with rear air control) |
12. |
Center console rear brace |
| 13. |
Rear center ventilator duct |
14. |
Center console rear finisher (without rear air control) |
15. |
Center console lid |
| 16. |
Center console |
17. |
Front Auxiliary input jacks |
18. |
Wireless charger indicator |
| 19. |
Electric shift selector |
20. |
Center console finisher (RH) |
21. |
Center console finisher (upper RH) |
| 22. |
Drive mode switch |
23. |
Multifunction switch |
24. |
Center console finisher (upper) |
 |
Metal clip |
 |
Pawl |
