Exploded View

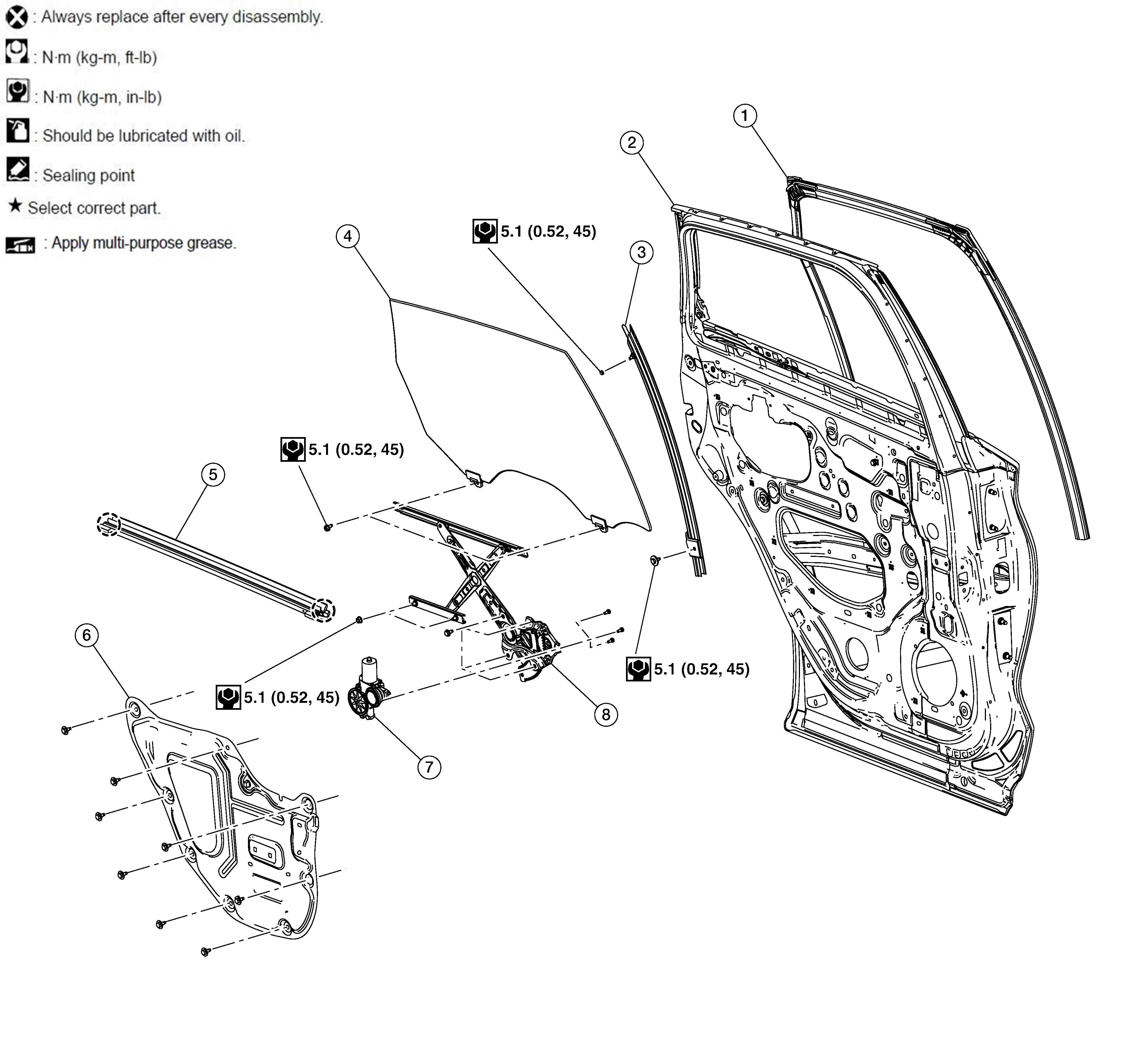

Fig 1: Rear Door With Torque Specifications
GNSDB58365Courtesy of NISSAN
1. Door glass run rubber 2. Door panel 3. Door glass rear run channel
4. Door glass 5. Door inside seal 6. Vapor barrier
7. Rear power window motor 8. Door glass regulator
