Reference Value

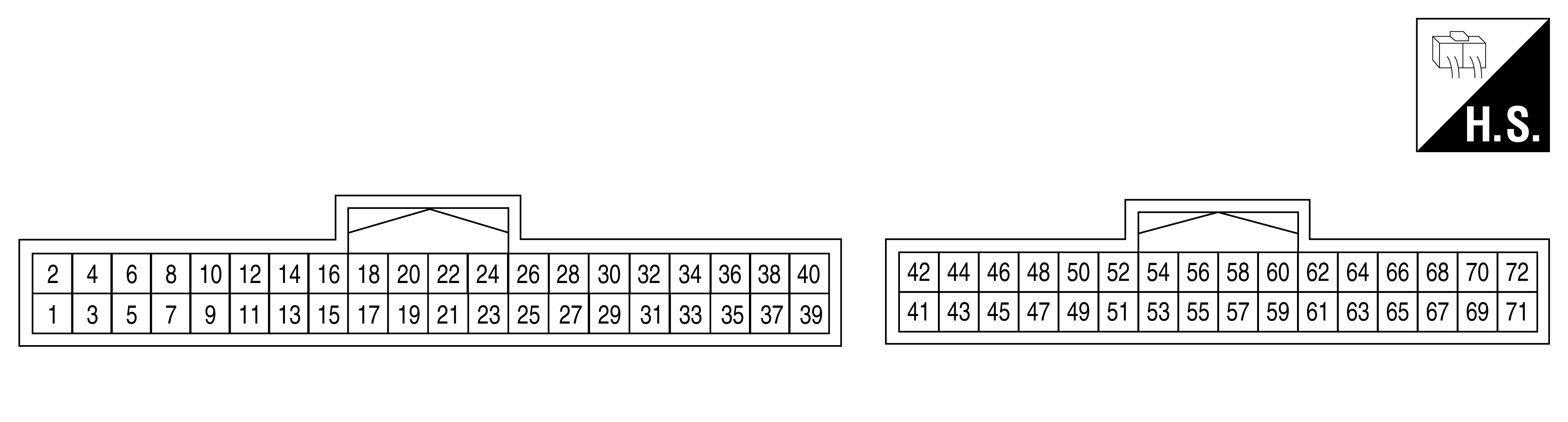

TERMINAL LAYOUT

Courtesy of NISSAN

PHYSICAL VALUES

	Terminal (Wire color)		Description	Condition		Reference value (Approx.)
+	-	Signal name	Input/Output	Ignition switch	Operation	Reference value (Approx.)
1 (B)	Ground	Ground	-	ON	-	0 V
2 (GR)	Ground	Battery power supply	Input	OFF	-	Battery voltage
3 (L)	Ground	Ignition signal	Input	ON	-	Battery voltage
4 (V)	Ground	ACC power supply	Input	ACC	-	Battery voltage
19 (SB)	-	AV communication high	Input/Output	-	-	-
20 (LG)	-	AV communication low	Input/Output	-	-	-
25 (G)	Ground	Reverse signal	Input	ON	R position	Battery voltage
25 (G)	Ground	Reverse signal	Input	ON	Other than R position	0 V
27 (BR)	-	CAN-High	-	-	-	-
28 (R)	-	CAN-Low	-	-	-	-
30 (SB)	-	Mirror close signal	Input	-	-	-
32 (P)	-	Mirror open signal	Input	-	-	-

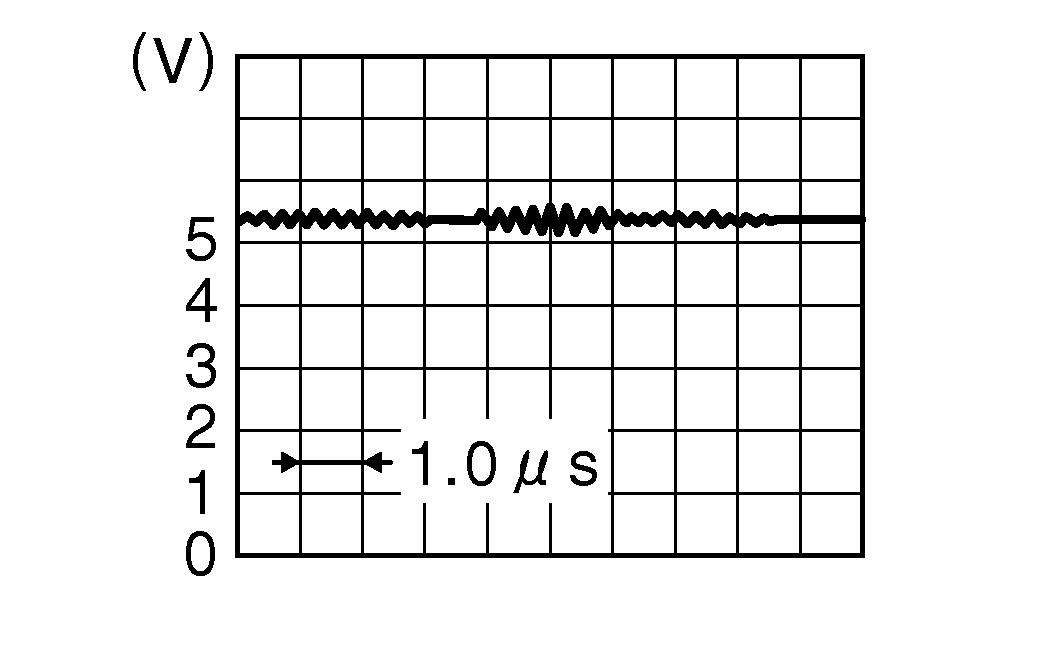

47 (B)	Ground	Camera image signal	Output	ON	At camera image display	Courtesy of NISSAN
48 (Shield)	-	Camera image signal shield	-	-	-	-

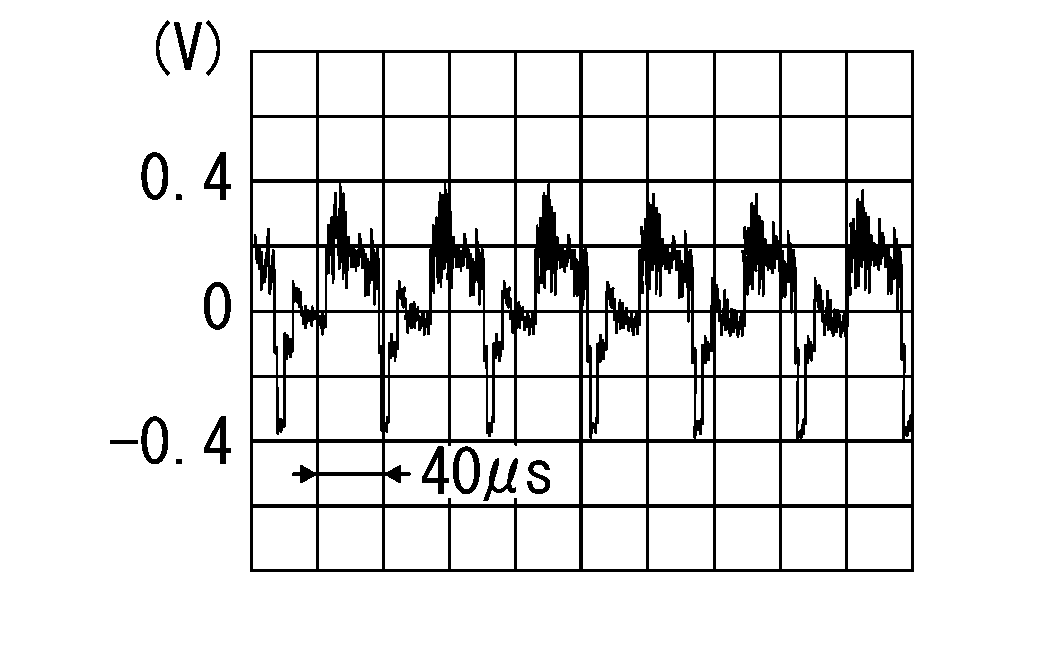

49 (G)	Ground	Rear view camera communication signal	Input/Output	ON	CAMERA switch is ON or shift position is "R".	Courtesy of NISSAN
50 (W)	Ground	Rear view camera power supply	Output	ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
52 (B)	Ground	Rear view camera ground	-	ON	-	0 V
53 (R)	54 (Shield)	Rear view camera image signal	Input	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
55 (B)	Ground	Side camera LH communication signal	Input/Output	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
56 (R)	Ground	Side camera LH power supply	Output	ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
58 (W)	Ground	Side camera LH ground	-	ON	-	0 V
59 (G)	60 (Shield)	Side camera LH image signal	Input	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
61 (W)	Ground	Side camera RH communication signal	Input/Output	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
62 (L)	Ground	Side camera RH power supply	Output	ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
64 (R)	Ground	Side camera RH ground	-	ON	-	0 V
65 (G)	66 (Shield)	Side camera RH image signal	Input	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
67 (B)	Ground	Front camera communication signal	Input/Output	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
68 (W)	Ground	Front camera power supply	Output	ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
70 (G)	Ground	Front camera ground	-	ON	-	0 V
71 (R)	72 (Shield)	Front camera image signal	Input	ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN
