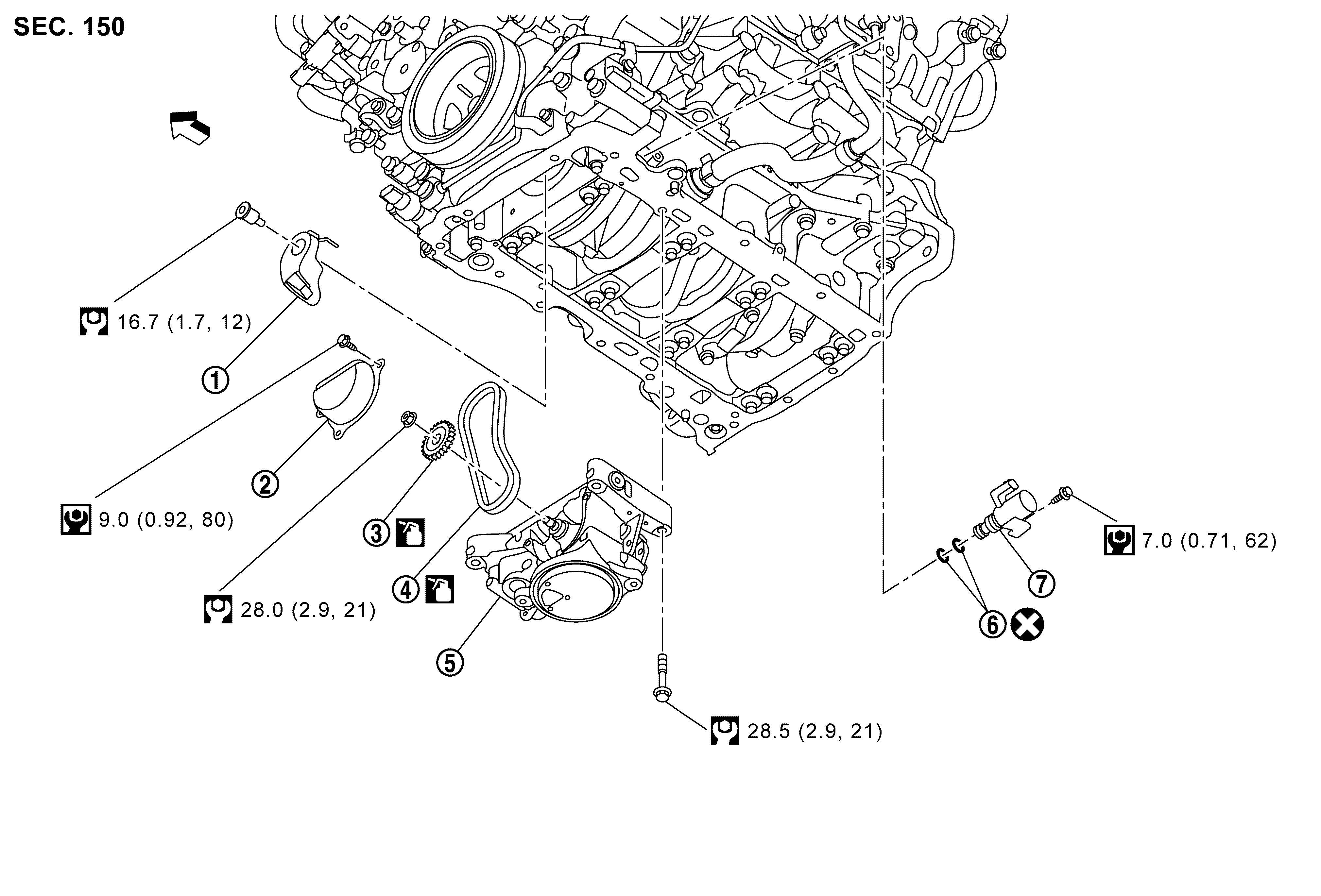

Oil pump drive chain tensioner
Cover
Oil pump sprocket
Oil pump drive chain
Oil pump assembly
O-ring
Engine oil pressure control solenoid valve
: Engine front
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Should be lubricated with oil.
