Component Location

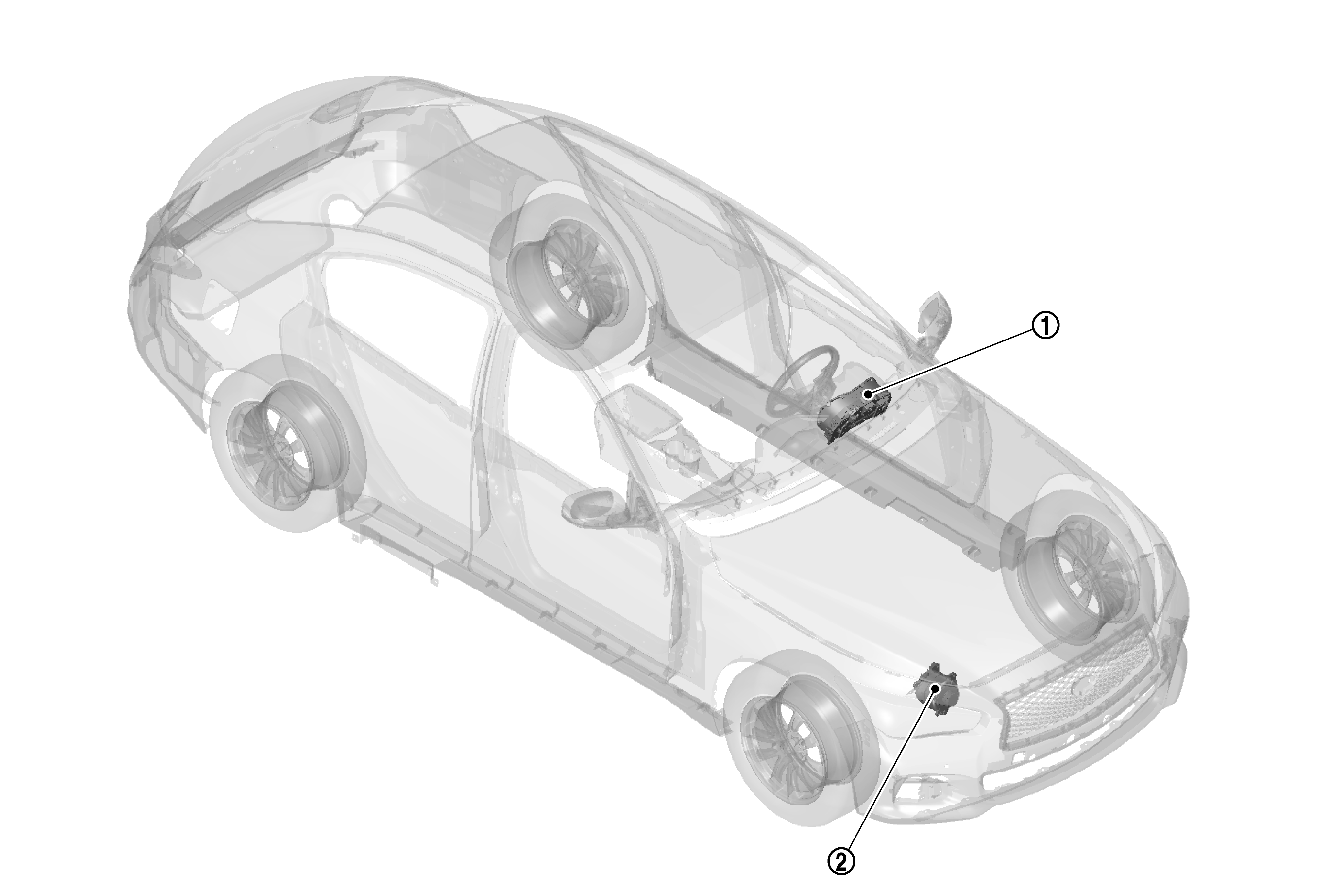

GNSDB40029Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

SYMBOL

Combination meter

(Charge warning lamp)

The IC voltage regulator warning function activates to illuminate the charge warning lamp, if any of the following symptoms occur while alternator is operating:

  • Excessive voltage is produced.
  • No voltage is produced.

SYMBOL

Alternator

Refer to Component Description .
