Multi-Way Control Valve : Exploded View

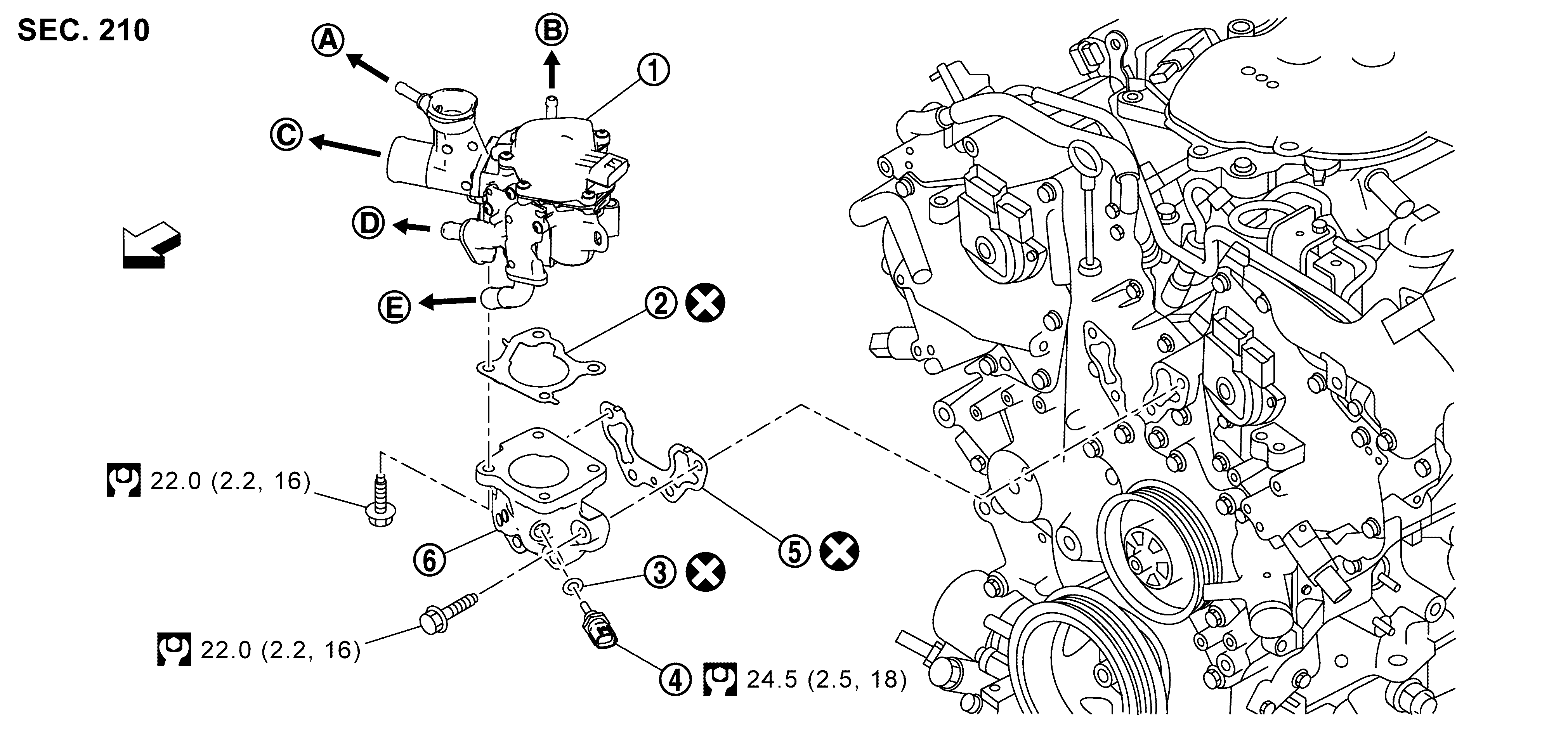

Fig 1: Multi-Way Control Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Multi-way control valve	Gasket	Gasket
Water temperature sensor	Gasket	Water outlet
To reservoir tank Refer to RADIATOR : Exploded View .	To turbocharger assembly Refer to TURBOCHARGER : Exploded View .	To radiator Refer to RADIATOR : Exploded View .
To A/T fluid warmer Refer to A/T FLUID COOLER SYSTEM : Exploded View . To engine oil cooler Refer to OIL COOLER : Exploded View .	To heater Refer to HEATER & COOLING UNIT ASSEMBLY : Exploded View .
: Engine front
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
