Infiniti
>>
2023
>>
Q50 Luxe, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Diagnostics) (1 Of 4)
>>
Description
>>
System
>>
Engine Control System
>>
Circuit Diagram

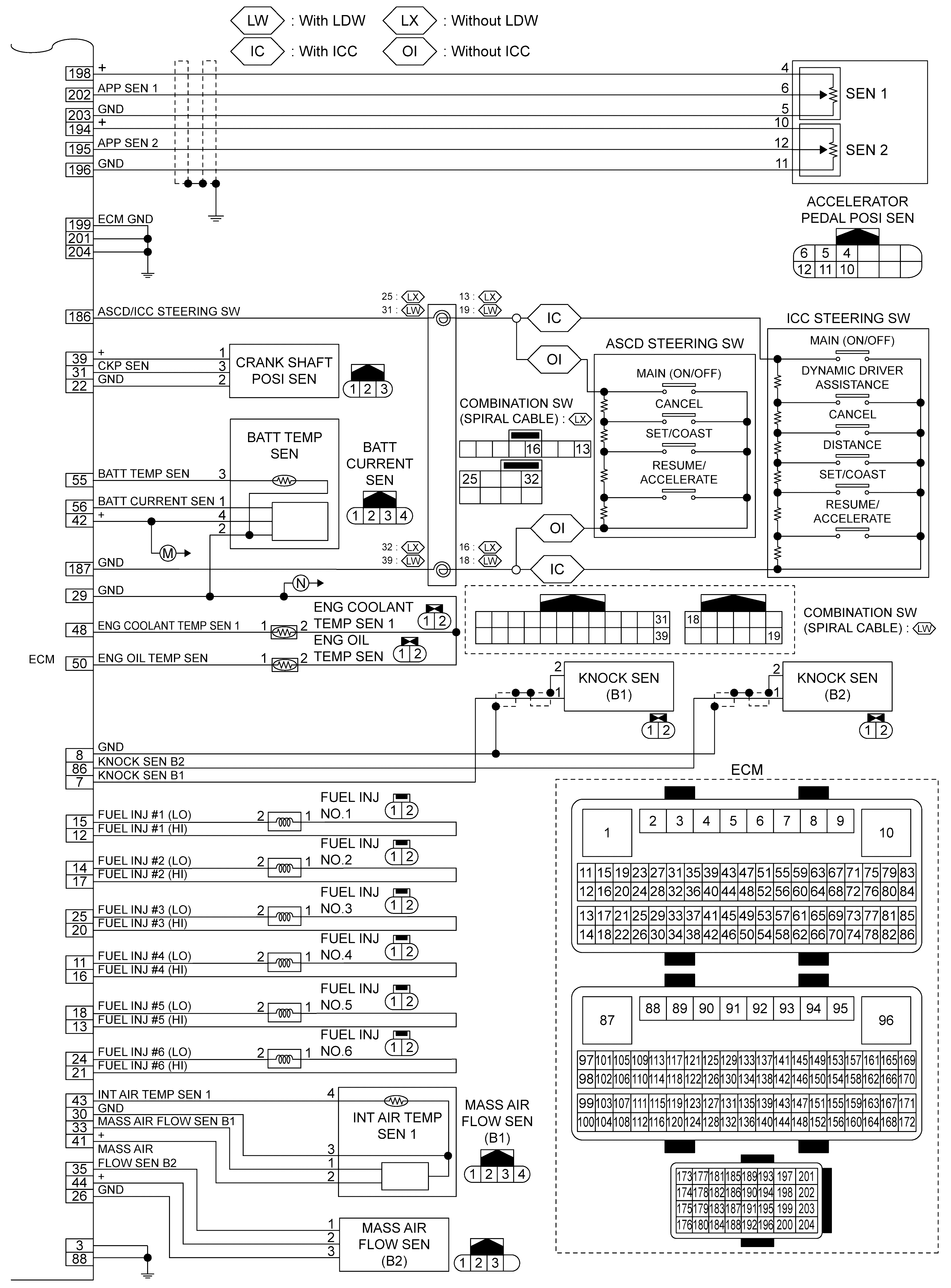

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

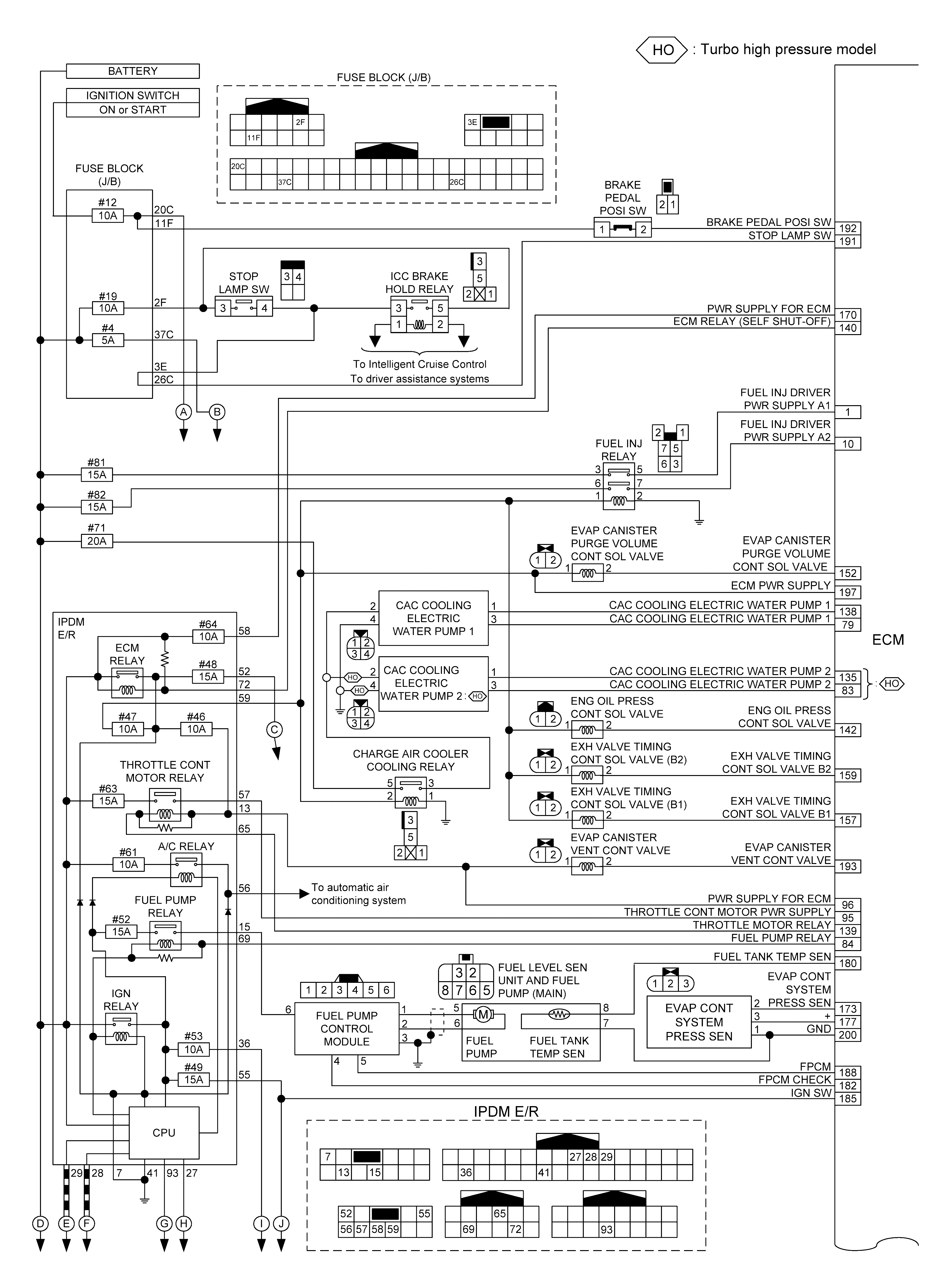

Courtesy of NISSAN NORTH AMERICA, INC.

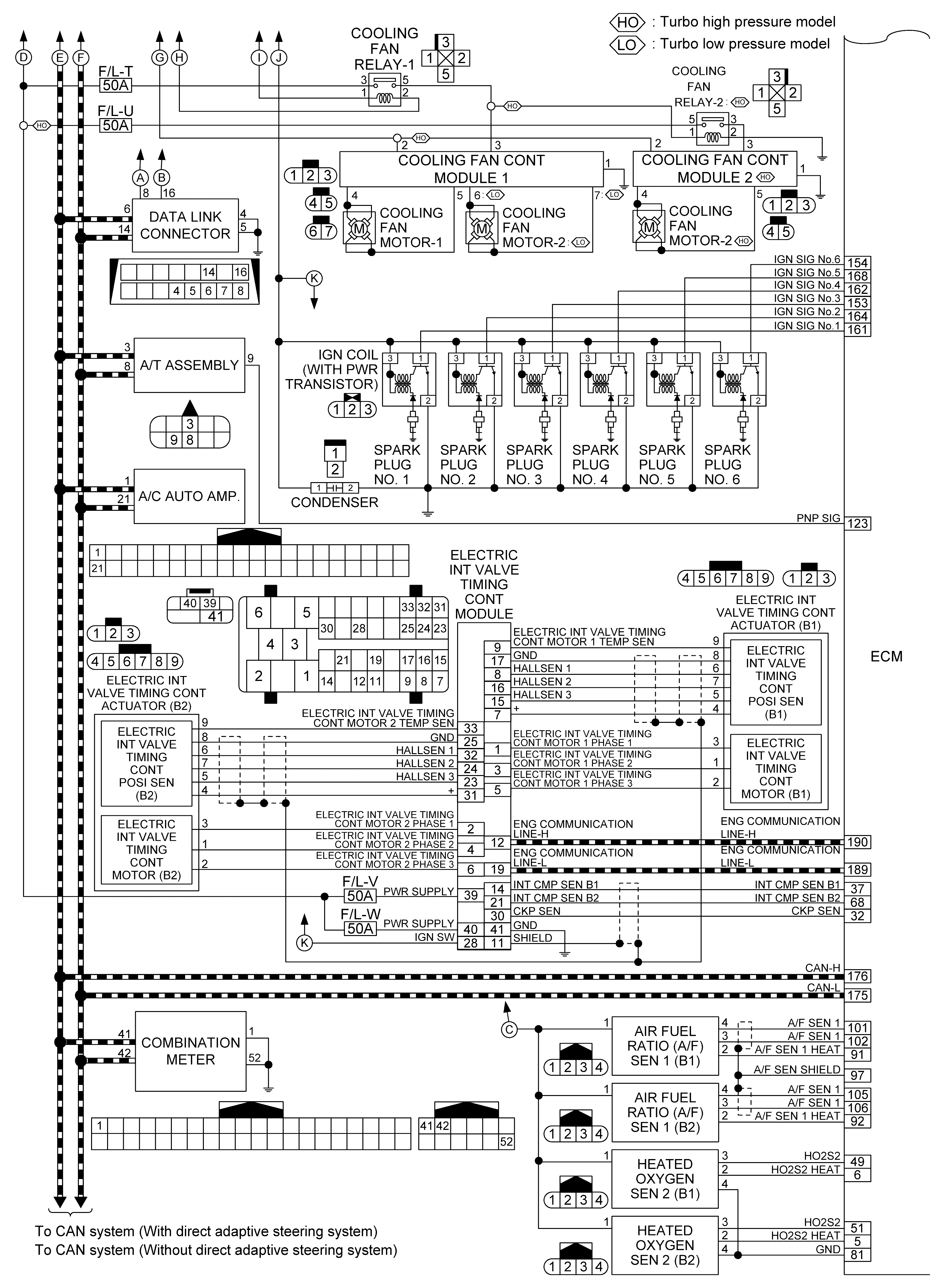

Courtesy of NISSAN NORTH AMERICA, INC.

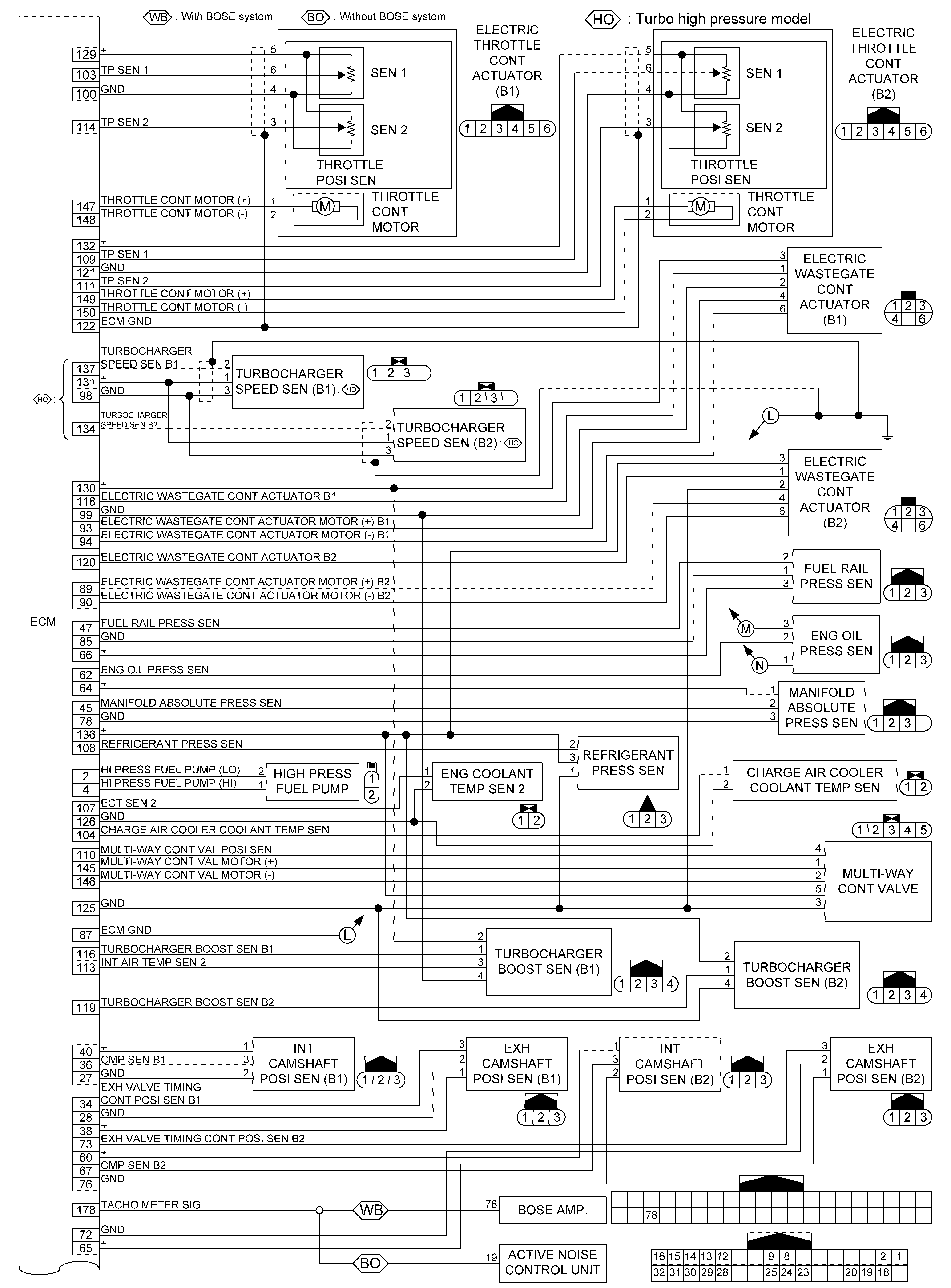

Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
