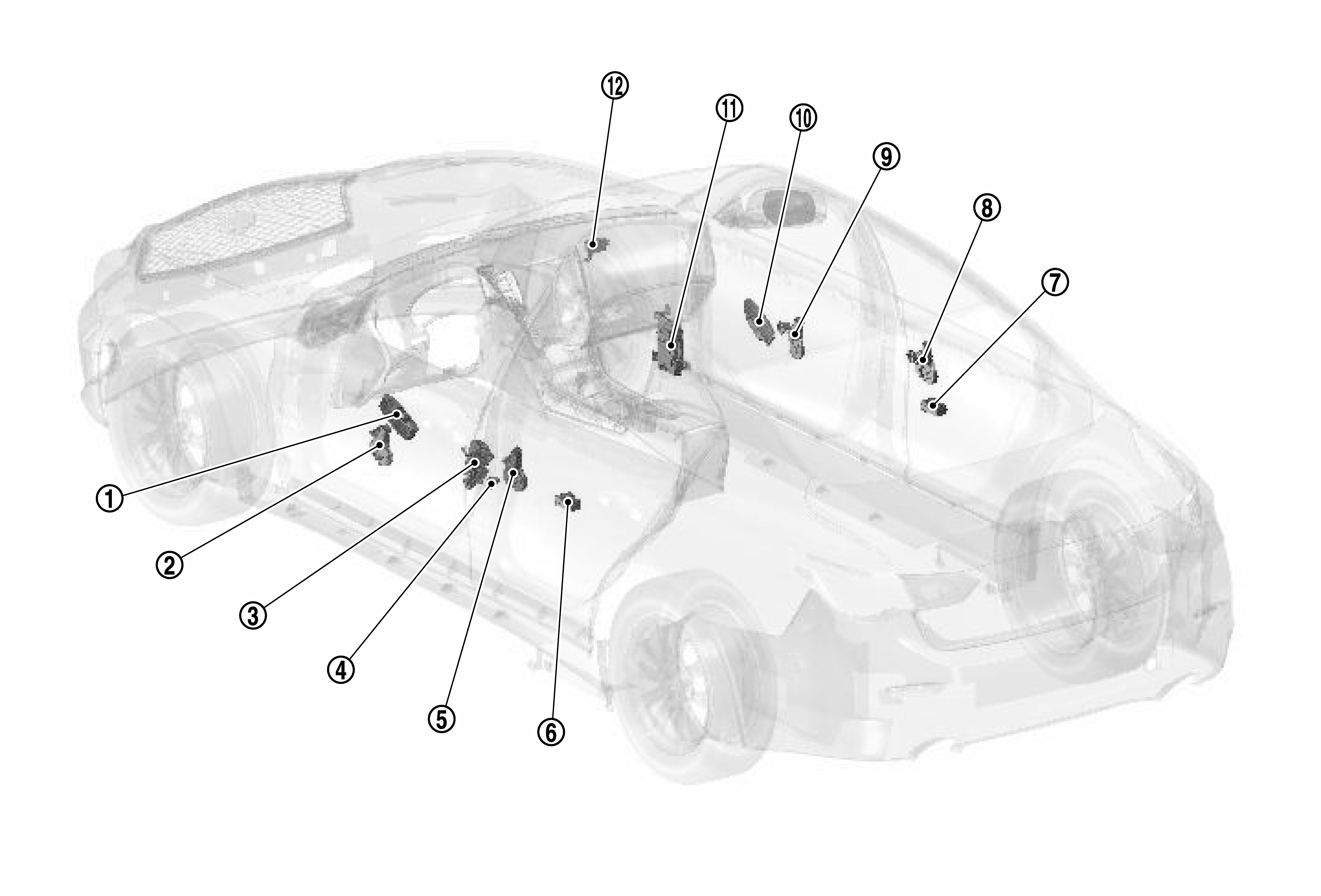

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	Power window main switch	Refer to Component Description .
	Front power window motor (driver side)	Refer to Component Description .
	Front door lock assembly (driver side) (door key cylinder switch) ^*
	Front door switch (driver side)	Detects door open/close condition and transmits to BCM. Refer to Component Description .
	Rear power window motor LH	Refer to Component Description .
	Rear power window switch LH	Refer to Component Description .
	Rear power window switch RH	Refer to Component Description .
	Rear power window motor RH	Refer to Component Description .
	Front power window motor (passenger side)	Refer to Component Description .
	Front power window switch (passenger side)	Refer to Component Description .
	BCM	Supplies power supply to power window switch. Controls retained power. Receives key ID signal from remote keyless entry receiver. Controls keyless power window operation via serial link. Refer to Component Location .
	Remote keyless entry receiver	Receives key ID signal from the Intelligent Key, and then transmits to BCM. Refer to Component Description .

*: Not applicable
