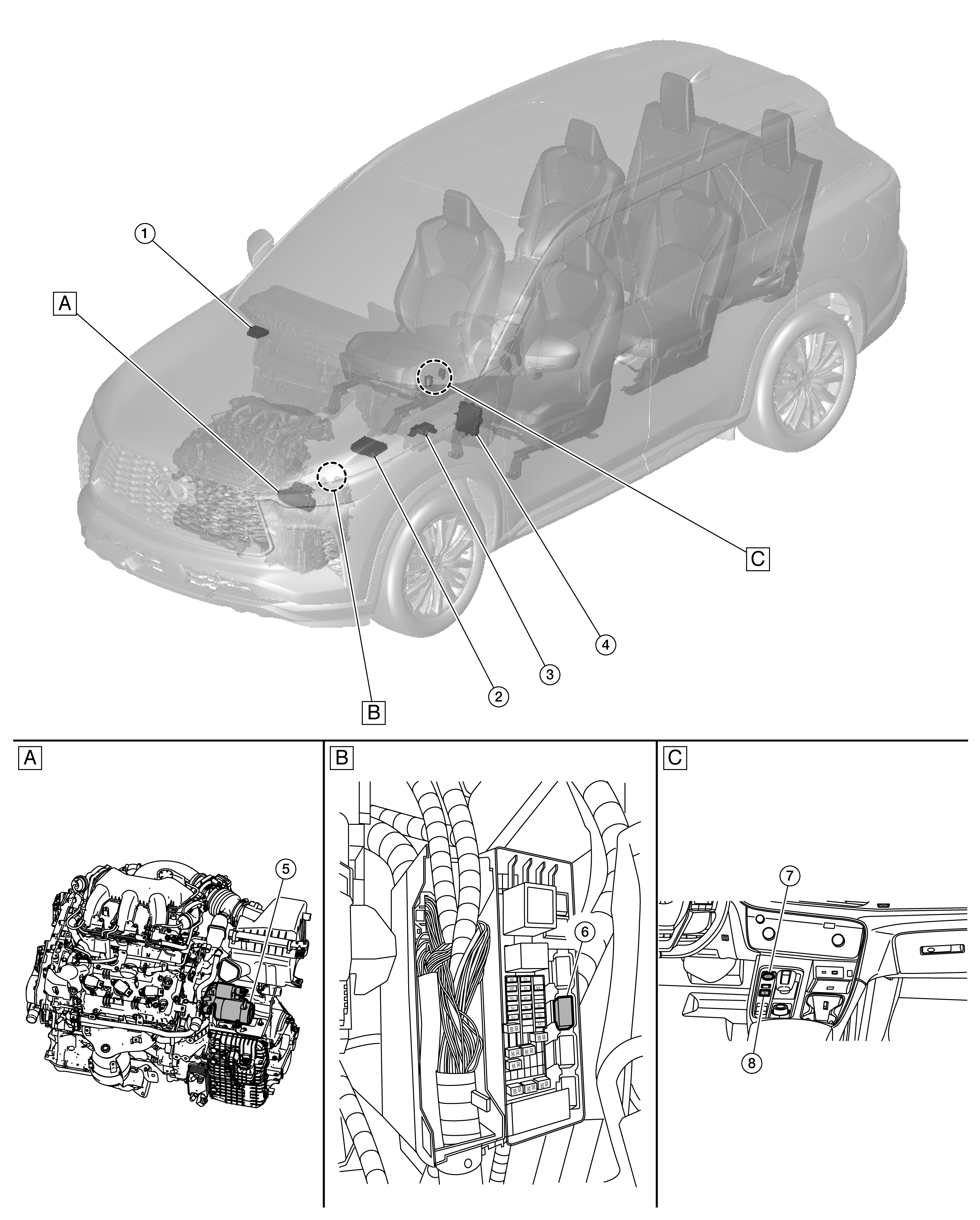

Component Location
|
A. |
View with engine removed |
B. |
Engine room left side |
C. |
Center console |
|
No. |
Component |
Function |
|
1. |
Intelligent Key unit |
Refer to for detailed component location. |
|
2. |
(Intelligent Power Distribution Module Engine Room) |
Refer to Component Location for detailed component location. |
|
3. |
Electronic shift control module |
Refer to Electric Shift Control Module . |
|
4. |
(Body Control Module) |
Refer to Component Location for detailed component location. |
|
5. |
Starter motor |
Refer to Starter Motor . |
|
6. |
Starter cut relay and direct fuel injector relays 1 and 2 |
Power is supplied to the starter cut relay with BCM control. |
|
7. |
Push-button ignition switch |
Supplies ignition switch status to the IPDM E/R. |
|
8. |
(If equipped) |
Refer to Stop/Start Off Switch . |
