Exploded View

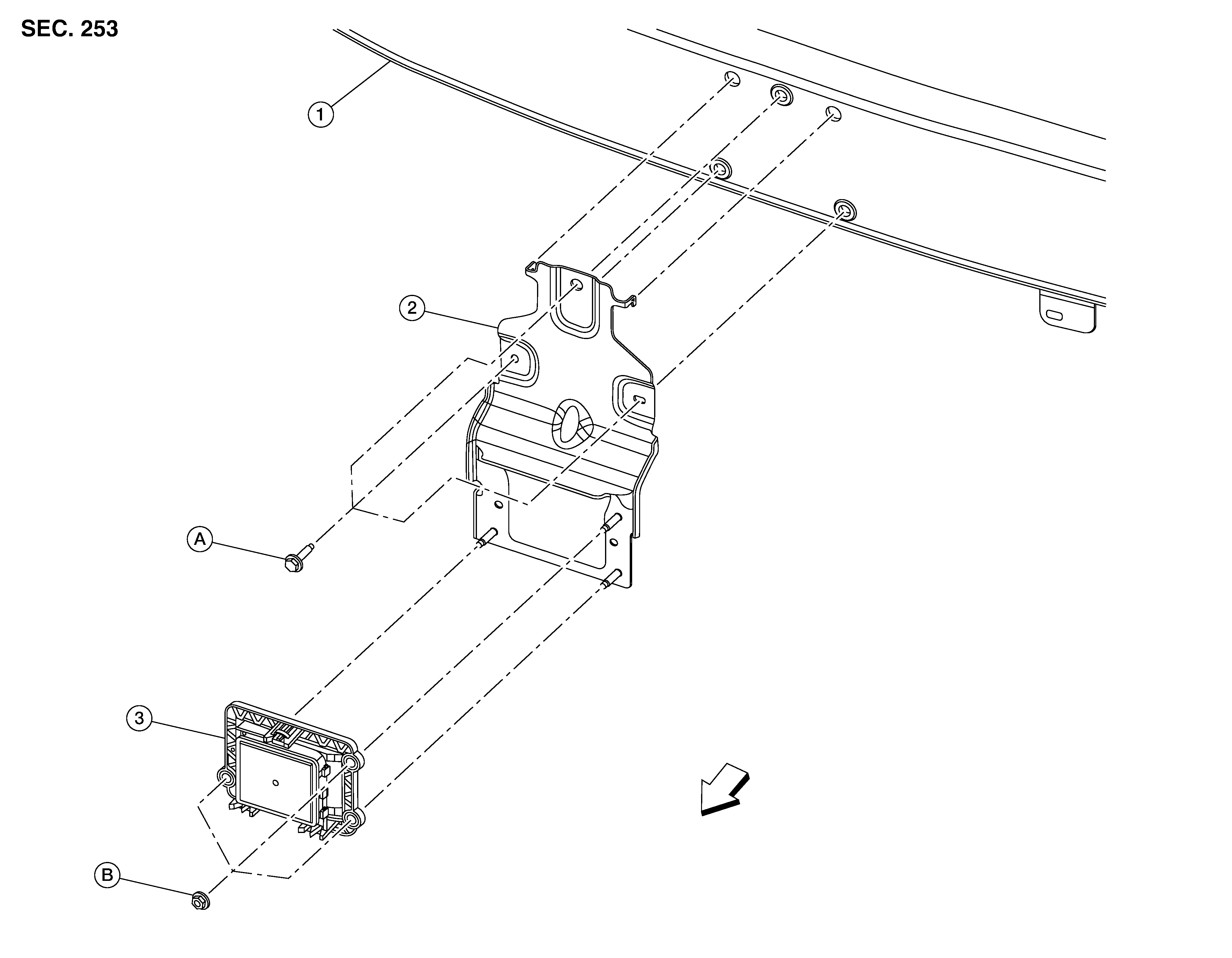

GNSDB122808Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front bumper reinforcement

2.

Distance sensor bracket

3.

Distance sensor

A.

Refer to INSTALLATION .

B.

Refer to INSTALLATION .

SYMBOL

Front
