Infiniti
>>
2022
>>
QX60 Pure, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
ADAS Control Unit
>>
System Description
>>
System
>>
System Description
>>

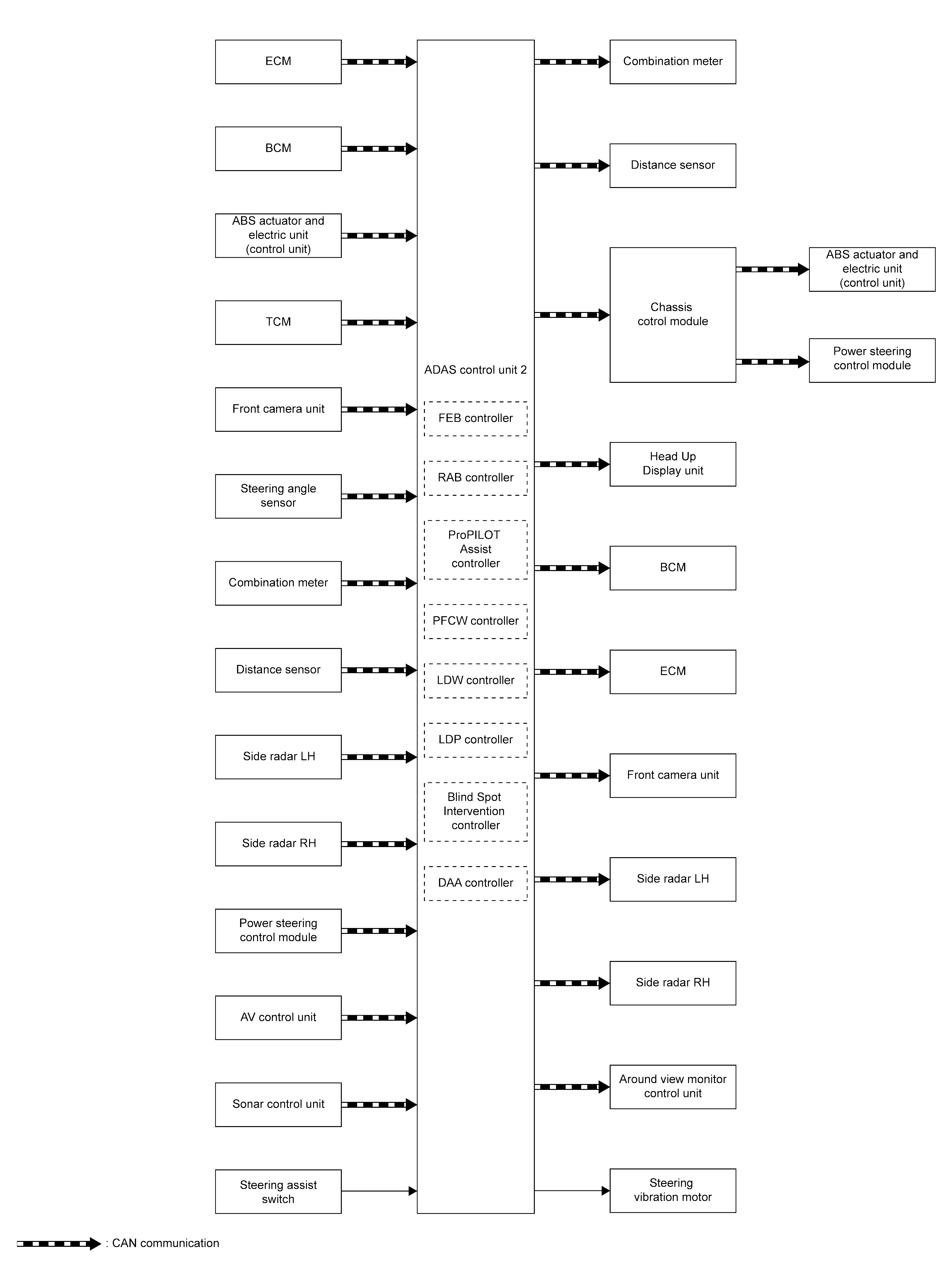

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Component
Description
ADAS control unit 2
Component Location
Courtesy of NISSAN NORTH AMERICA, INC.
