Exploded View

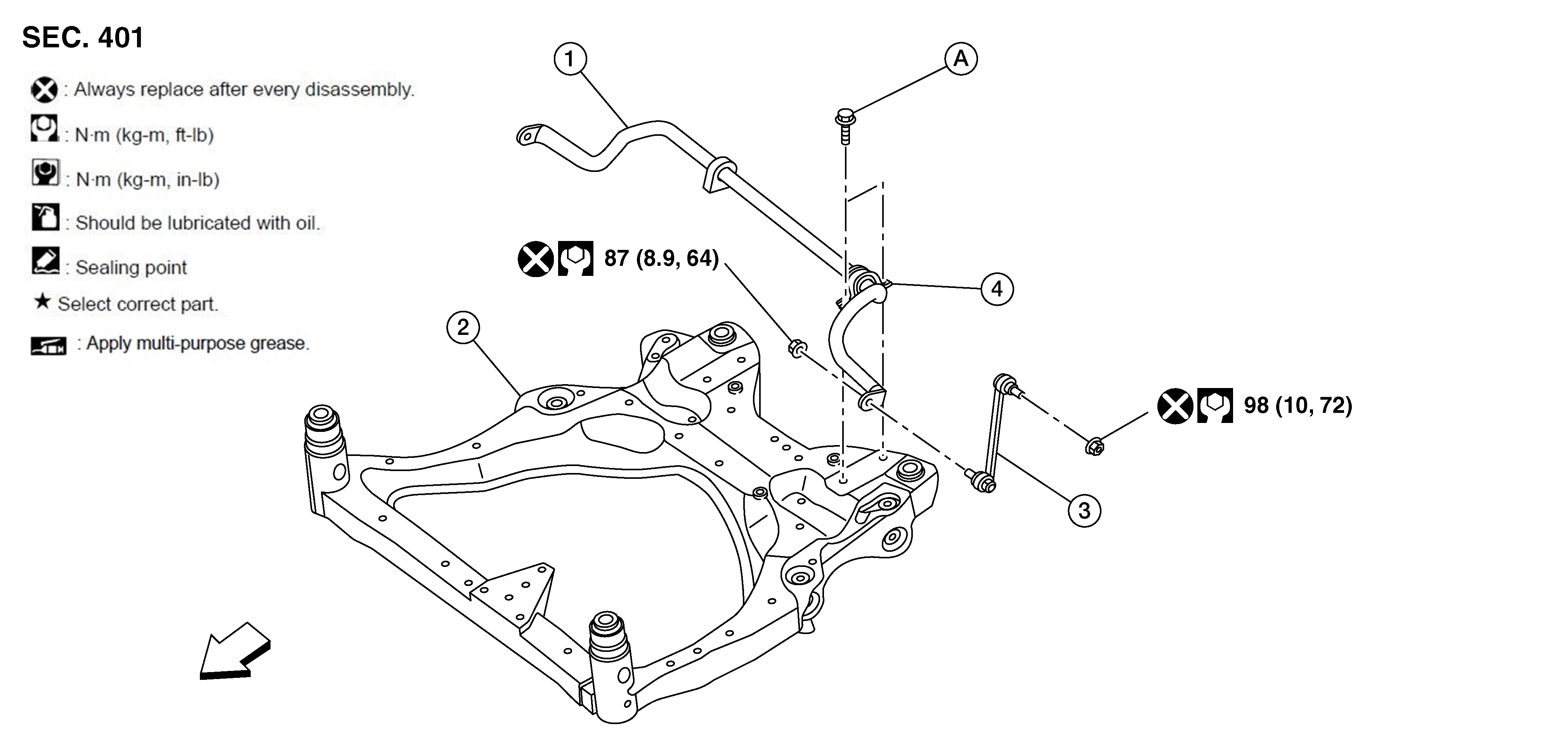

Fig 1: Front Stabilizer With Torque Specifications
GNSDB18169Courtesy of NISSAN NORTH AMERICA, INC.

1.

Stabilizer bar

2.

Front suspension member

3.

Connecting rod

A.

Refer to Removal and Installation .

SYMBOL

Front
