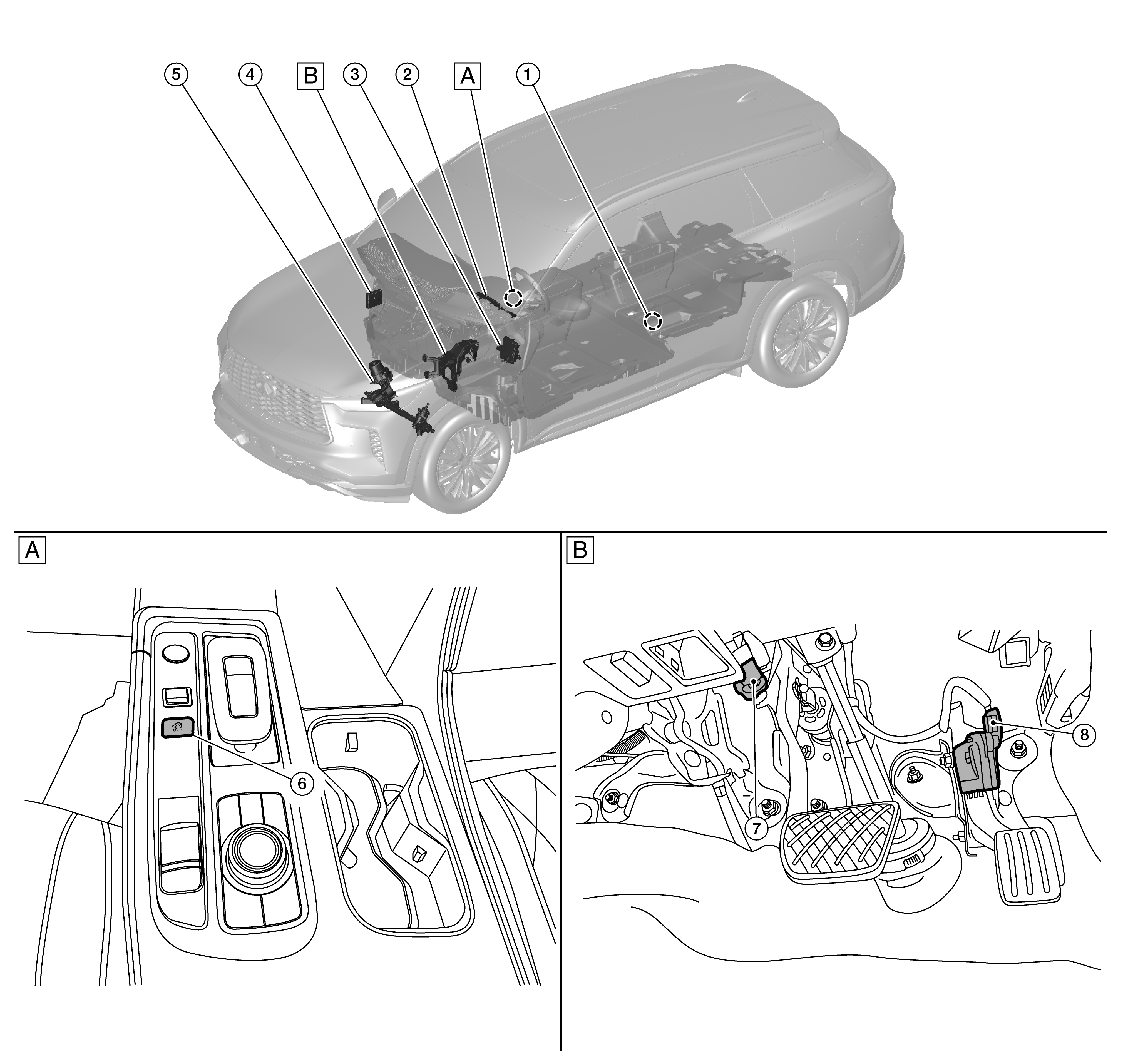

Body Compartment

GNSDB18449Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Center console area

SYMBOL

Pedal periphery

SYMBOL

Door switch (driver side)

SYMBOL

Combination meter

SYMBOL

BCM

SYMBOL

A/C auto amp.

SYMBOL

EPS control unit

SYMBOL

Stop/start OFF switch

SYMBOL

Stop lamp switch

SYMBOL

Accelerator pedal position sensor
