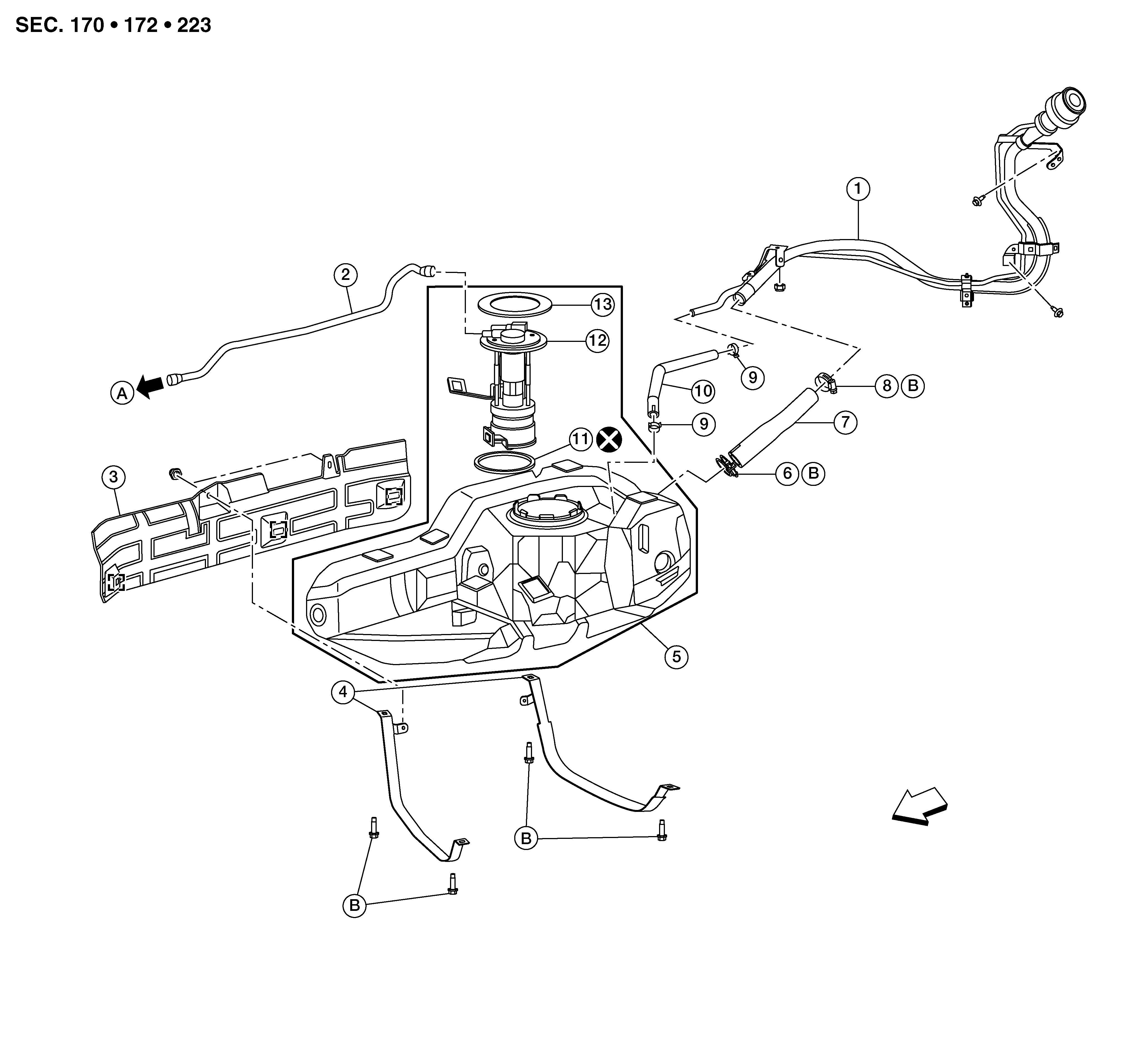

For Mexico
|
1. |
Fuel filler tube |
2. |
EVAP vent tube |
3. |
Fuel tank protector |
|
4. |
Fuel tank mounting straps |
5. |
Fuel tank assembly |
6. |
Clamp |
|
7. |
Fuel filler hose |
8. |
Clamp |
9. |
Clamp |
|
10. |
Vent hose |
11. |
O-ring |
12. |
Fuel level sensor, fuel filer and fuel pump assembly |
|
13. |
Lock ring |
A. |
To EVAP canister. Refer to Exploded View . |
B. |
Refer to Removal and Installation . |
|
|
Front |
