Exploded View

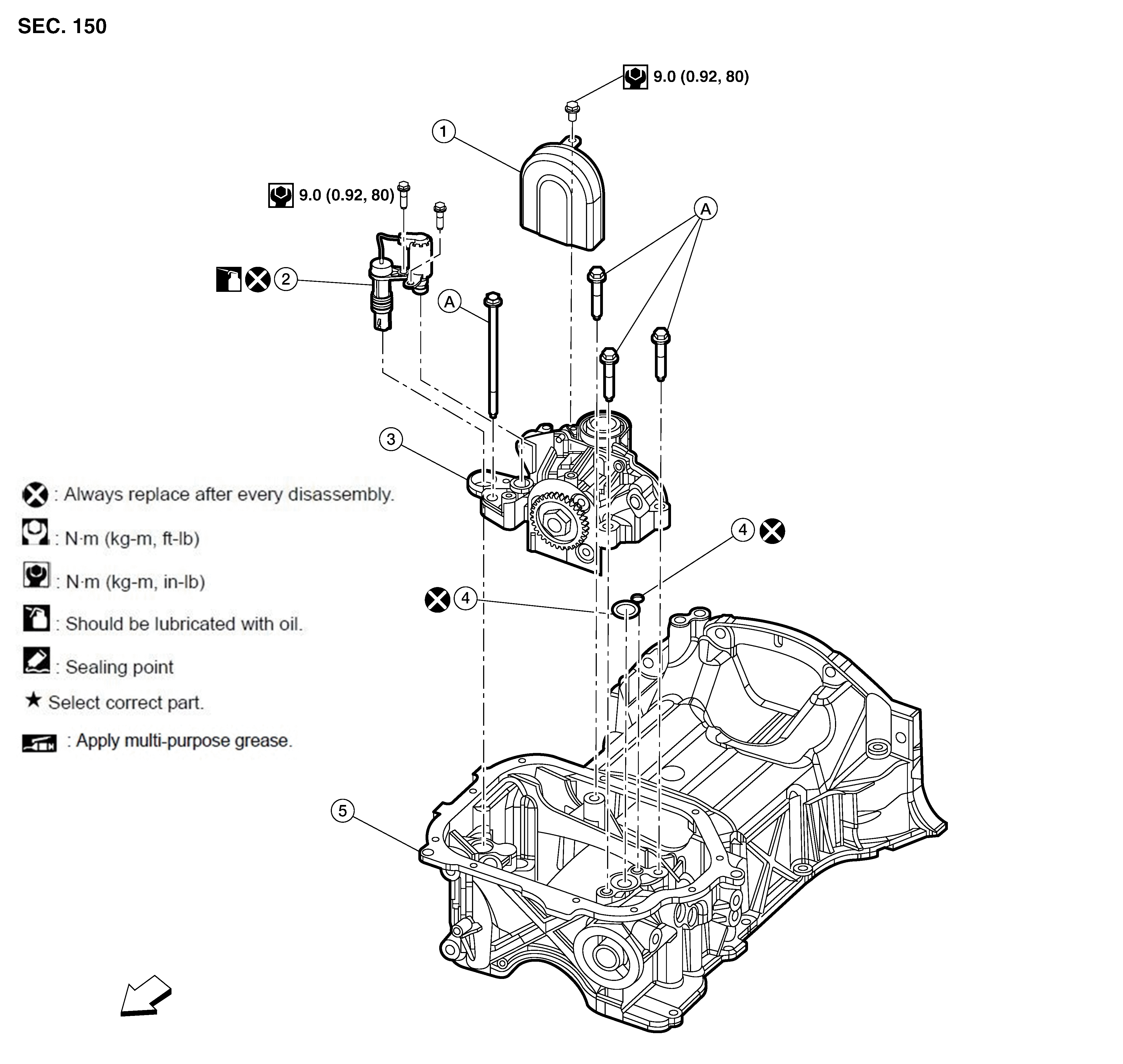

Fig 1: Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump cover	2.	Engine oil pressure control solenoid valve	3.	Oil pump assembly
4.	O ring	5.	Oil pan (upper)	A.	Refer to Removal and Installation .
