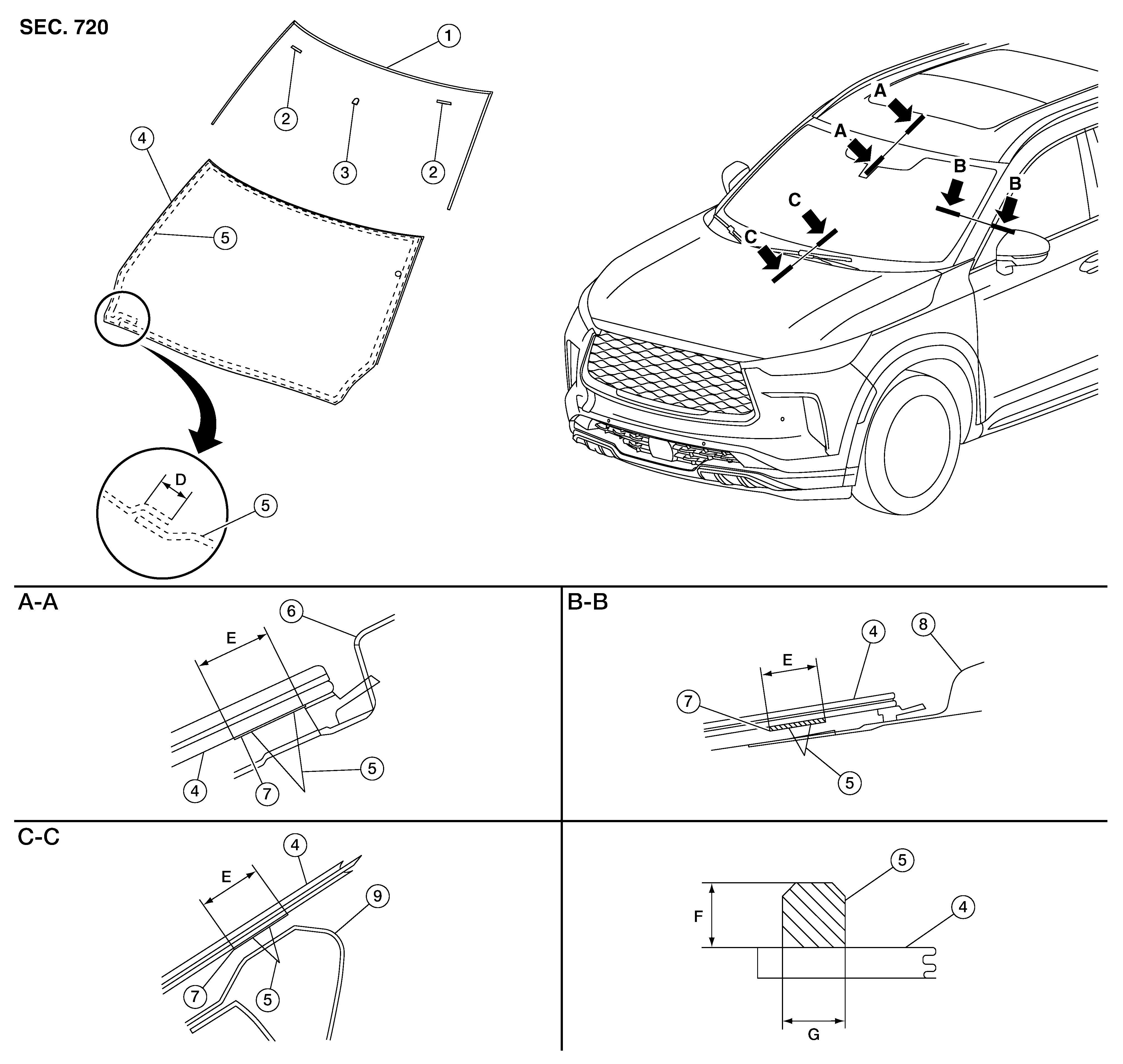

1.
Windshield glass molding
2.
Spacer
3.
Mirror base
4.
Windshield glass
5.
Adhesive
6.
Roof
7.
Glass primer
8.
Body side outer
9.
Cowl top
D.
30 mm (1.18 in)
E.
16 mm (0.63 in)
F.
12 mm (0.47 in)
G.
7 mm (0.28 in)
Courtesy of NISSAN NORTH AMERICA, INC.
