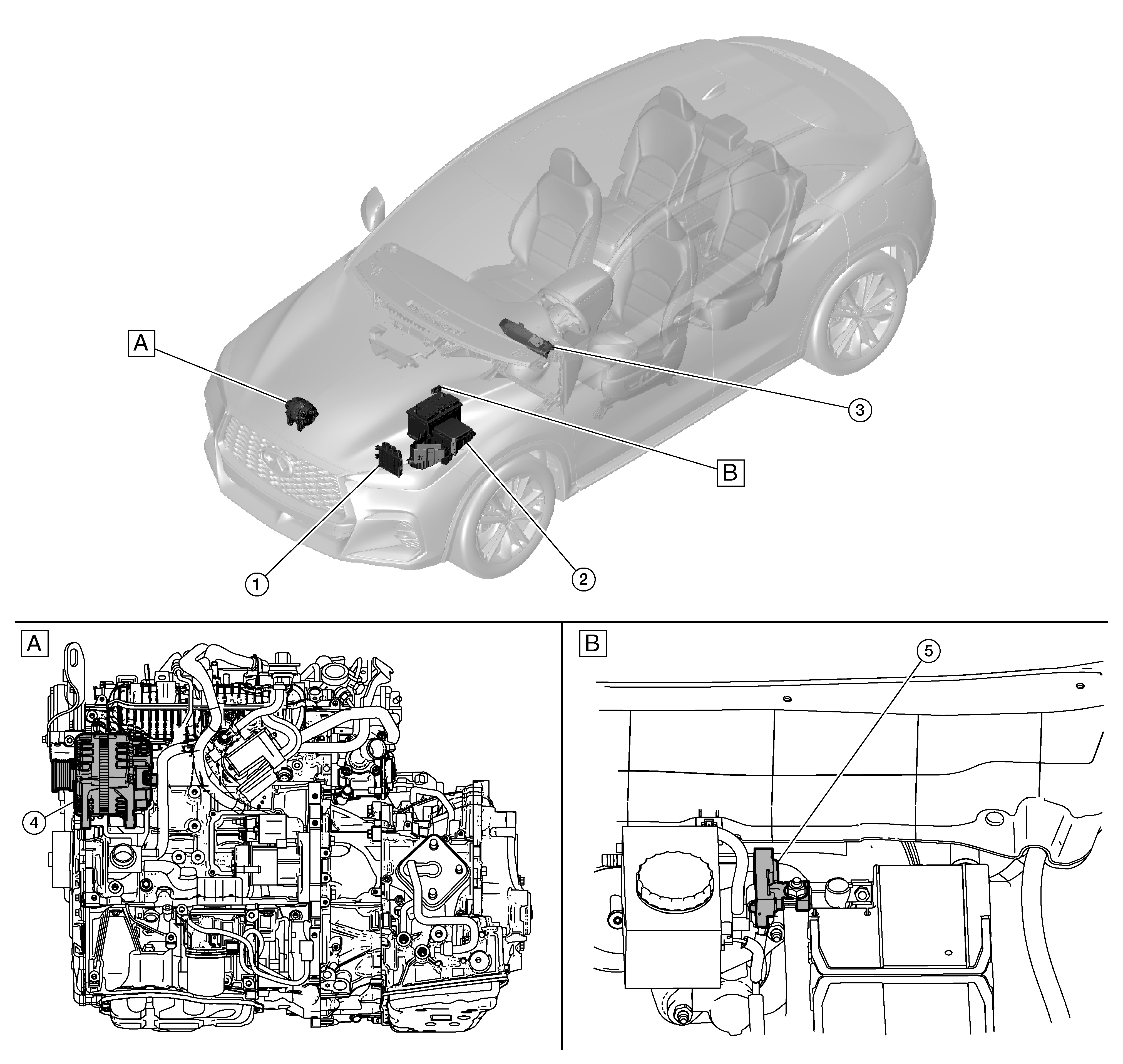

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

View with engine removed

Engine room left side

No.	Component	Function
1.	(Engine Control Module)	Refer to Component Location for detailed component location.
2.	(Intelligent Power Distribution Module Engine Room)	Refer to Component Location for detailed component location.
3.	Combination meter	Excessive voltage is produced No voltage is produced Refer to Component Location for detailed component location.
4.	Generator	Refer to Generator .
5.	Battery current sensor (with battery temperature sensor)	Refer to Battery Current Sensor (With Battery Temperature Sensor) .
