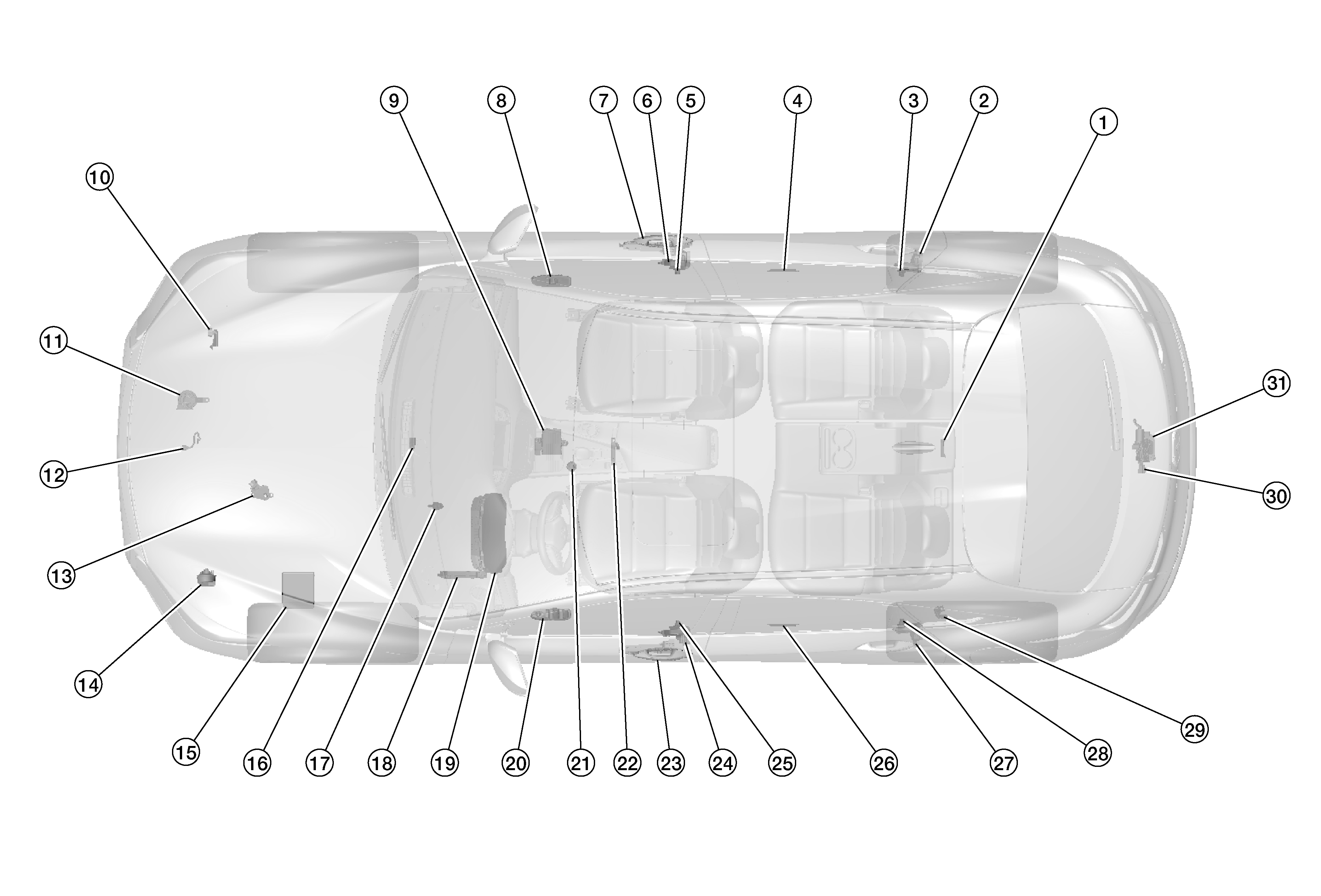

Component Location
|
No. |
Component |
Function |
|
1. |
Rear door lock actuator RH |
Rear door lock actuator locks/unlocks the rear door latch assembly. |
|
2. |
Rear door switch RH |
Refer to Rear Door Switch . |
|
3. |
Outside key antenna RH |
Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle or not and then transmits the signal to the BCM. Refer to Outside Key Antenna RH . |
|
4. |
Front door switch RH |
Refer to Front Door Switch . |
|
5. |
Front door lock actuator RH |
Front door lock actuator locks/unlocks the front door latch assembly. |
|
6. |
Front door request switch RH |
Refer to Front Door Request Switch (RH) . |
|
7. |
Power window and door lock/unlock switch RH |
Door lock and unlock switch transmits door lock/unlock operation signal to BCM. |
|
8. |
Electric shift control module |
Electric shift control module detects the shift lever status, transmits park position signal to the BCM. |
|
9. |
Intelligent Key warning buzzer |
Intelligent Key warning buzzer warns the user, who is outside the vehicle, of operation confirmation according to Intelligent Key operation and door request switch operation, or of an inappropriate operation. |
|
10. |
Horn (low) |
Horns are operated when the panic button on the Intelligent Key is pressed or the alarm is activated. |
|
11. |
Hood switch |
Refer to Hood switch . |
|
12. |
Transmission range switch |
Refer to Transmission range switch . |
|
13. |
Horn (high) |
Horns are operated when the panic button on the Intelligent Key is pressed or the alarm is activated. |
|
14. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Refer to Component Location . |
|
15. |
Dongle unit (if equipped) |
Refer to Dongle Unit . |
|
16. |
Stop lamp switch |
Refer to Stop Lamp Switch . |
|
17. |
BCM (Body Control Module) |
BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS [IVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is placed in the ON position, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Location for detailed component location. |
|
18. |
Combination meter |
Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS [IVIS (NATS)] is on board. Refer to Component Location . |
|
19. |
Main power window and door lock/unlock switch |
Door lock and unlock switch is integrated into the main power window and door lock/unlock switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. |
|
20. |
Push-button ignition switch (NATS antenna amp.) |
Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed, and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated. Refer to NATS Antenna Amp. . |
|
21. |
Inside key antenna (console) |
Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to Inside Key Antenna (Console) . |
|
22. |
Front door request switch LH |
Refer to Front Door Request Switch (LH) . |
|
23. |
Front door lock assembly LH |
Door key cylinder switch is integrated into front door lock assembly (driver side). Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and then transmits the operation signal to BCM. Refer to Front Door Lock Assembly LH . |
|
24. |
Front door switch LH |
Door switch detects door open/close condition and then transmits ON/OFF signal to BCM. |
|
25. |
Outside key antenna LH |
Outside key antenna LH detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna LH . |
|
26. |
Rear door lock actuator LH |
Rear door lock actuator locks/unlocks the rear door latch assembly. |
|
27. |
Rear door switch LH |
Refer to Rear Door Switch . |
|
28. |
Inside key antenna (luggage room) |
Inside key antenna (luggage room) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. |
|
29. |
Remote keyless entry receiver |
Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM. Refer to Remote Keyless Entry Receiver . |
|
30. |
Outside key antenna (rear bumper) |
Outside key antenna (Rear bumper) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (Rear Bumper) . |
|
31. |
Back door lock assembly |
Back door lock actuator locks/unlocks the back door latch assembly. |
