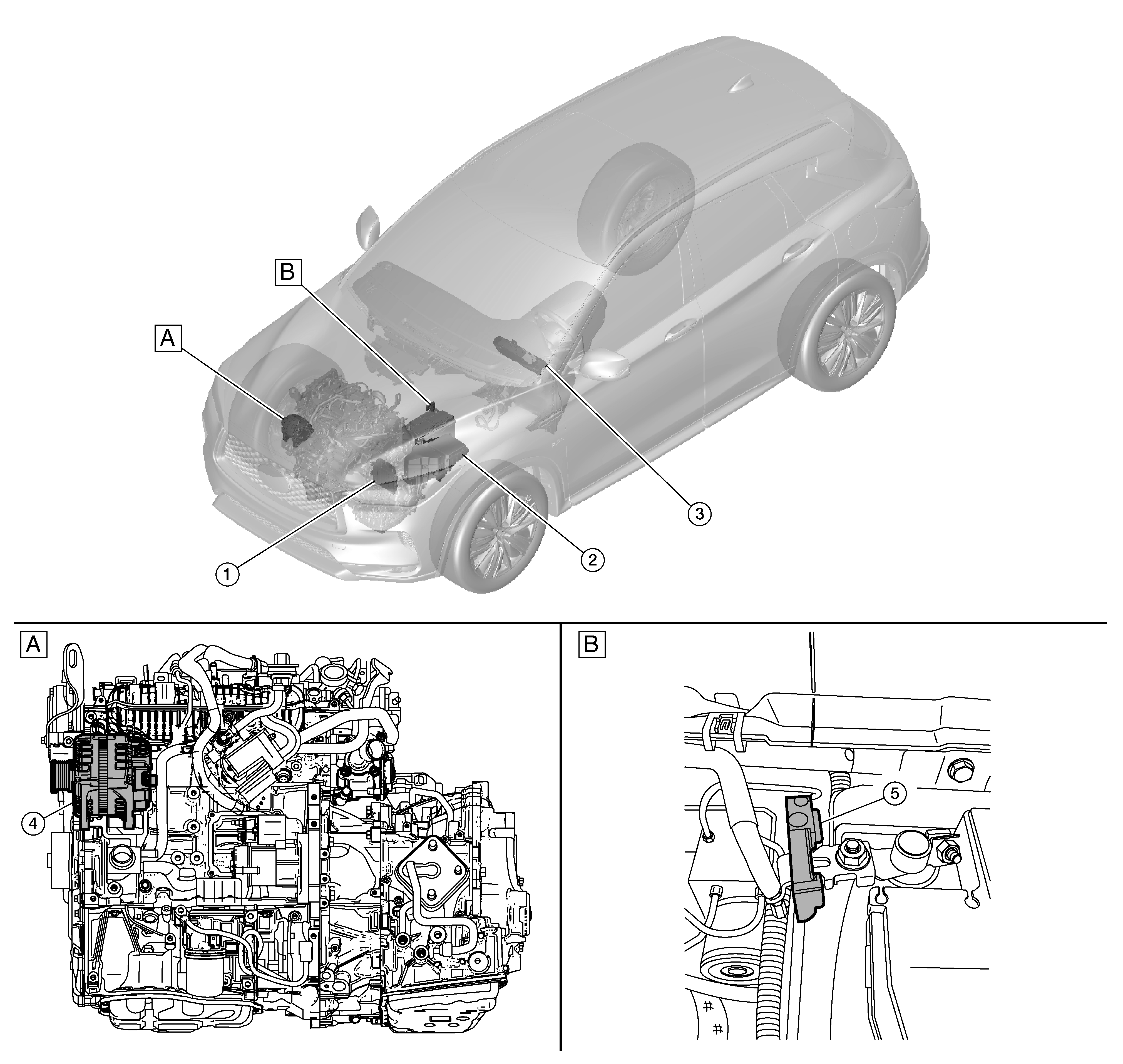

Component Location
|
A. |
View with engine removed |
B. |
Engine room left side |
|
No. |
Component |
Function |
|
1. |
ECM (Engine Control Module) |
Refer to Component Location for detailed component location. |
|
2. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Refer to Component Location for detailed component location. |
|
3. |
Combination meter |
Refer to Component Location for detailed component location. |
|
4. |
Generator |
Refer to Generator . |
|
5. |
Battery current sensor (with battery temperature sensor) |
Refer to Battery Current Sensor (With Battery Temperature Sensor) . |
