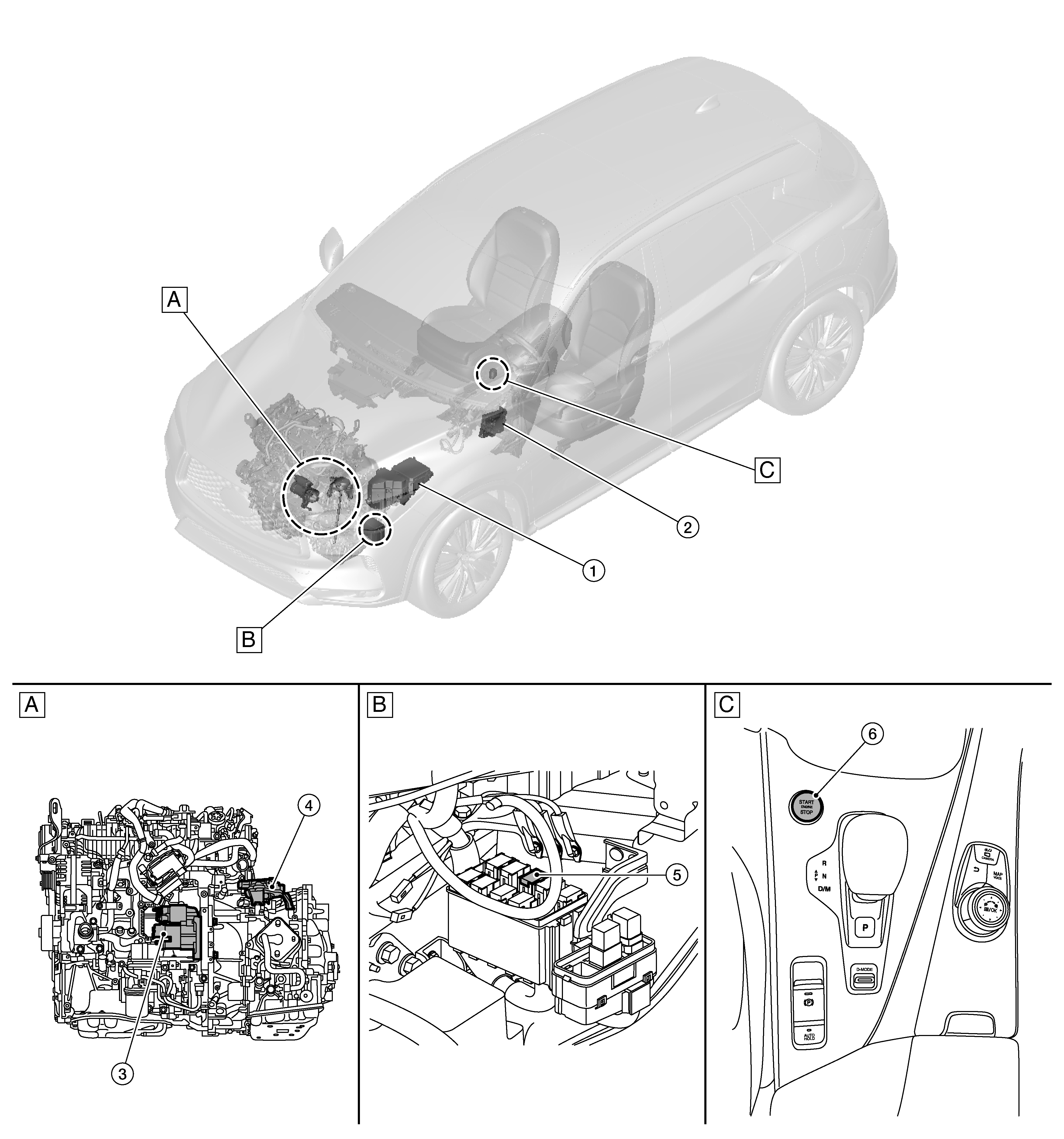

Component Location
|
A. |
View with engine and transmission removed |
B. |
Engine room left side |
|
C. |
Center console |
|
No. |
Component |
Function |
|
1. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
CPU inside IPDM E/R controls starter relay. Starter relay is built into the IPDM E/R. Refer to System Description . |
|
2. |
BCM (Body Control Module) |
BCM controls high pressure fuel pump and starter cut relay. Refer to System Description . |
|
3. |
Starter motor |
Refer to Starter Motor . |
|
4. |
Transmission range switch |
Transmission range switch supplies power to the starter relay inside IPDM E/R when the lever is shifted to the "P" or "N" position. Refer to Transmission Range Switch . |
|
5. |
High pressure fuel pump relay and starter cut relay |
Power is supplied to the starter cut relay with BCM control. |
|
6. |
Push-button ignition switch |
Supplies ignition switch status to the IPDM E/R. |
