Information Display (Combination Meter): Design/Purpose

WARNING: This page is about a different car, the 2021 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

The warning message is displayed on the information display when "Chassis Control" detected the system malfunction.
Each chassis control system information is displayed on the information display.
NOTE:
- hill start assist function: Refer to Chassis Control Display .
- Automatic brake hold function: Refer to Chassis Control Display .

Warning Message

Design

Warning Message

Chassis Control

System Error

See Owner's Manual

System Information

Active trace control

Design	Description

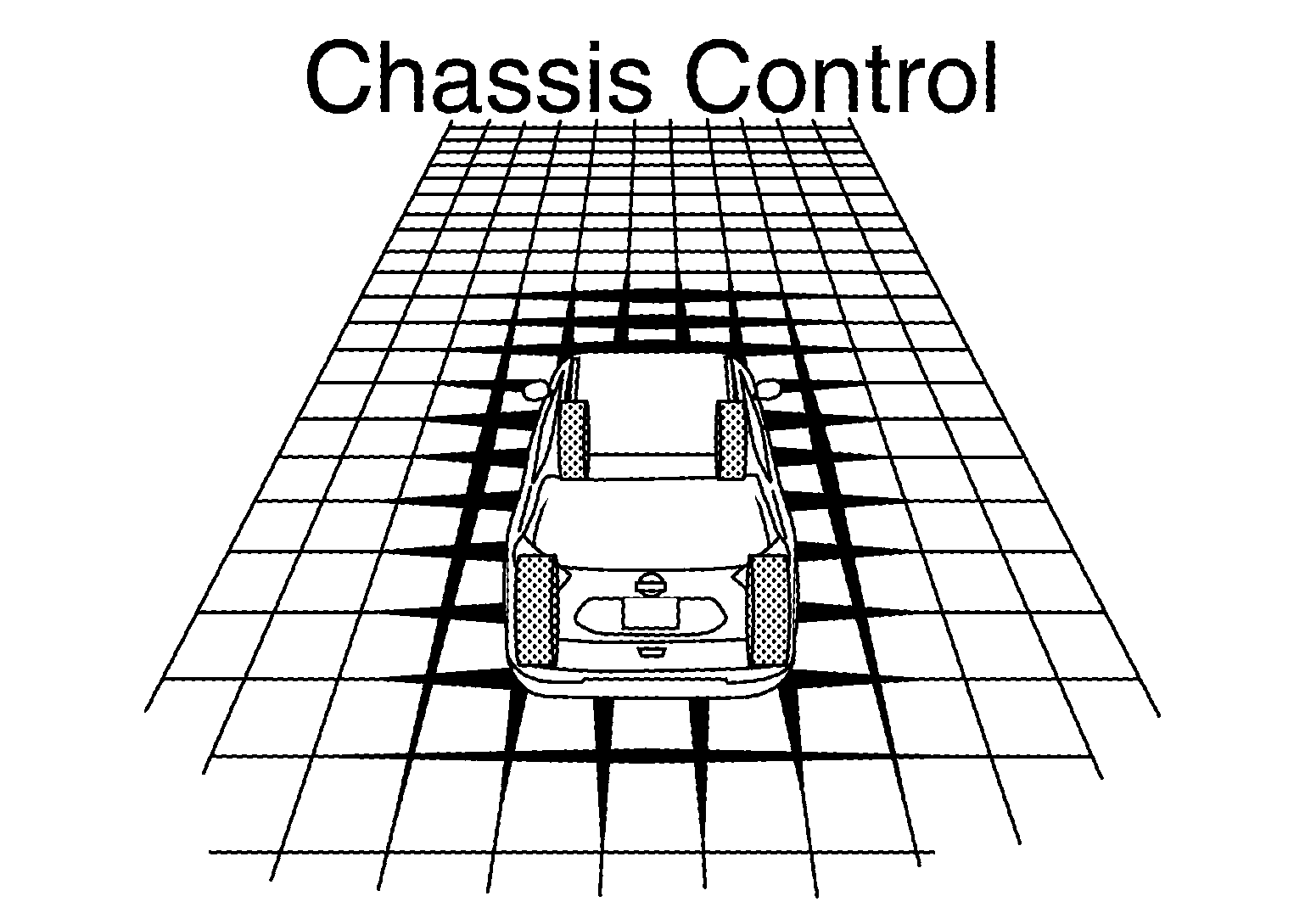

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control function inactive.

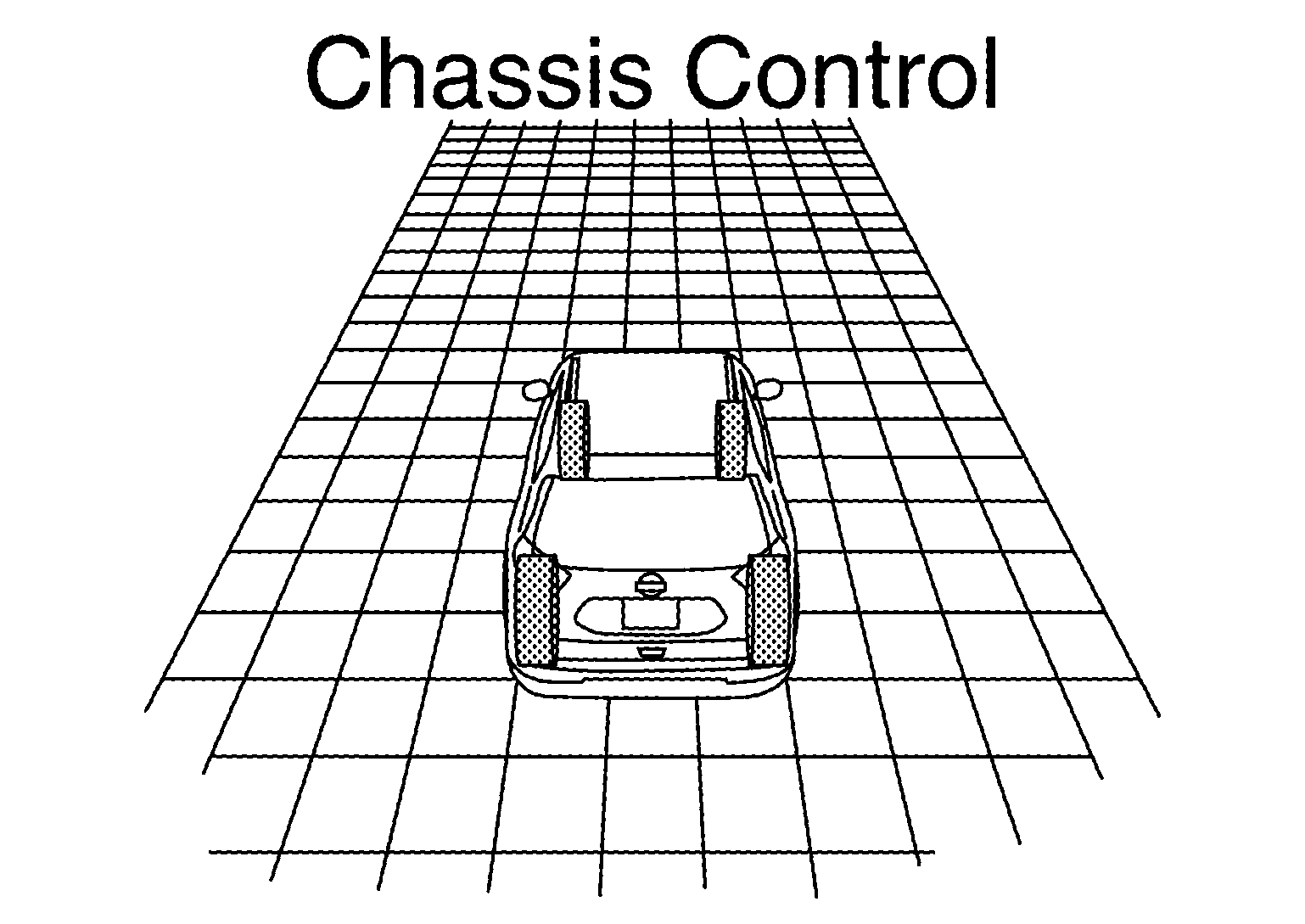

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control function is active. (Steering angle is less than the specified angle.)

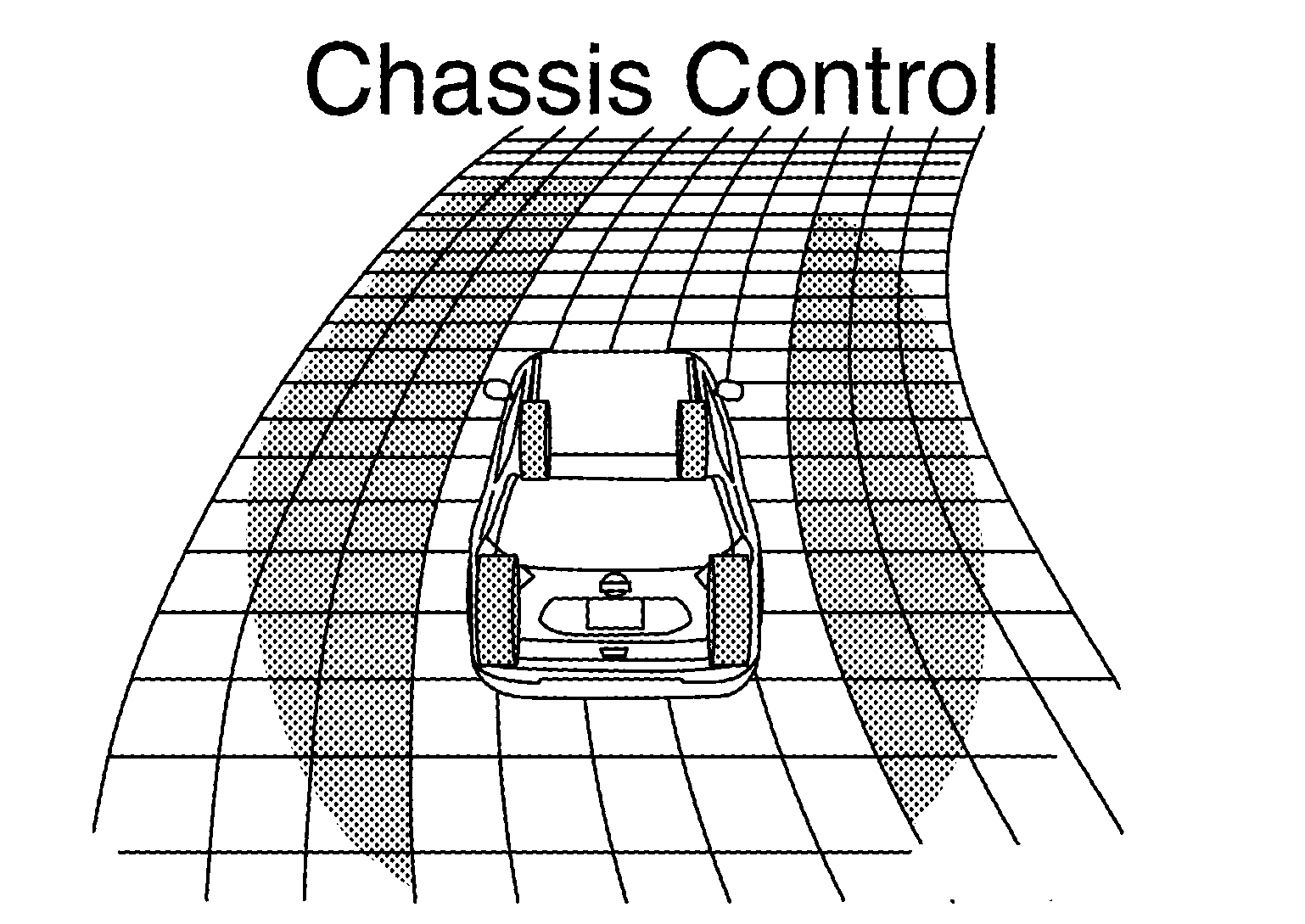

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control function is active. (Steering angle is the specified angle or more in the leftward direction.)

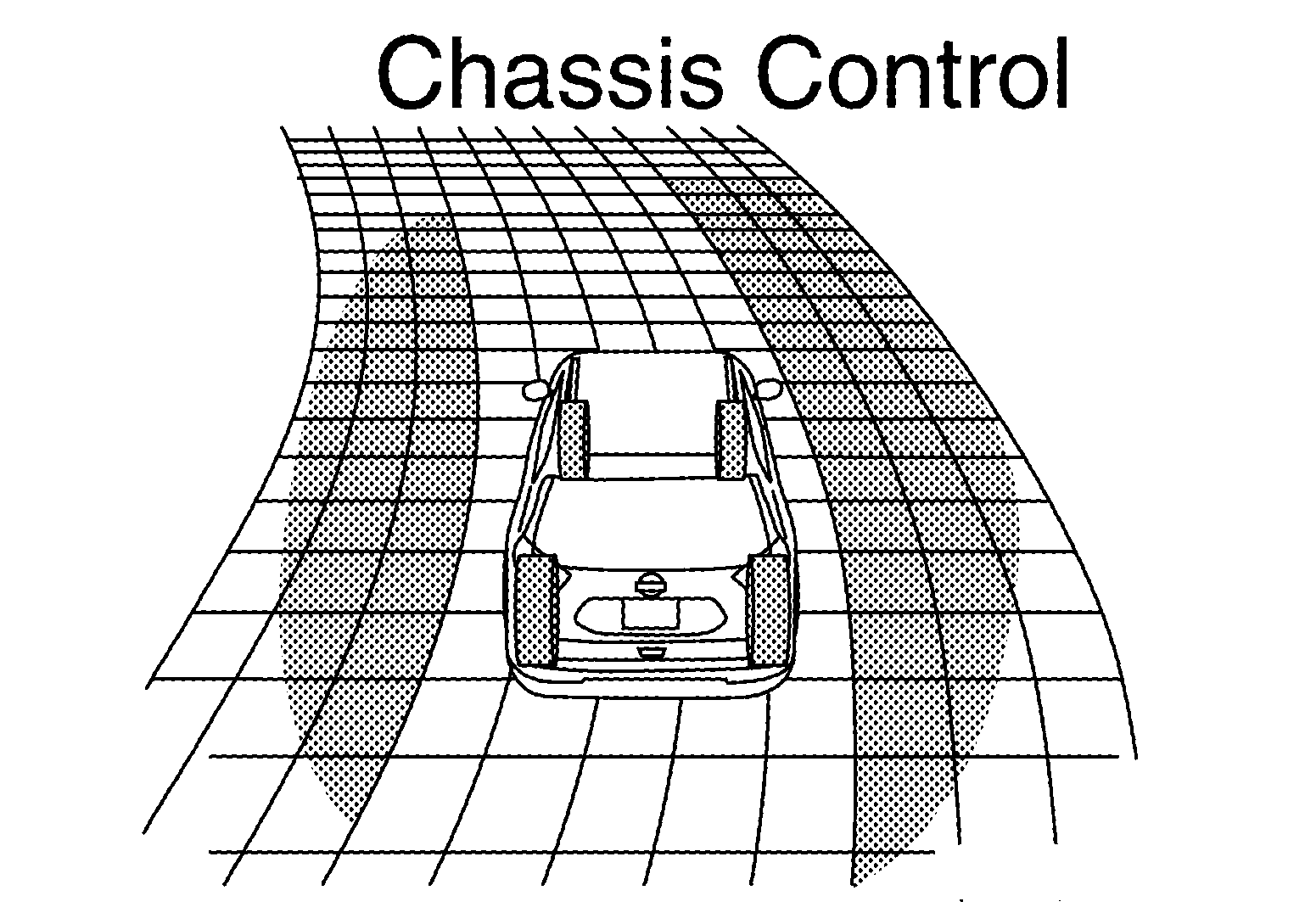

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control function is active. (Steering angle is the specified angle or more in the rightward direction.)

Active engine brake function

Design	Description
Courtesy of NISSAN NORTH AMERICA, INC.	Active engine brake (cornering control) function inactive.
Courtesy of NISSAN NORTH AMERICA, INC.	Active engine brake (cornering control) function is active. (Steering angle is less than the specified angle.)
Courtesy of NISSAN NORTH AMERICA, INC.	Active engine brake (cornering control) function is active. (Steering angle is the specified angle or more in the leftward direction.)
Courtesy of NISSAN NORTH AMERICA, INC.	Active engine brake (cornering control) function is active. (Steering angle is the specified angle or more in the rightward direction.)

Active ride control function

Design	Description
Courtesy of NISSAN NORTH AMERICA, INC.	Active ride control (brake control) function inactive.
Courtesy of NISSAN NORTH AMERICA, INC.	Active ride control (brake control) function is active.
