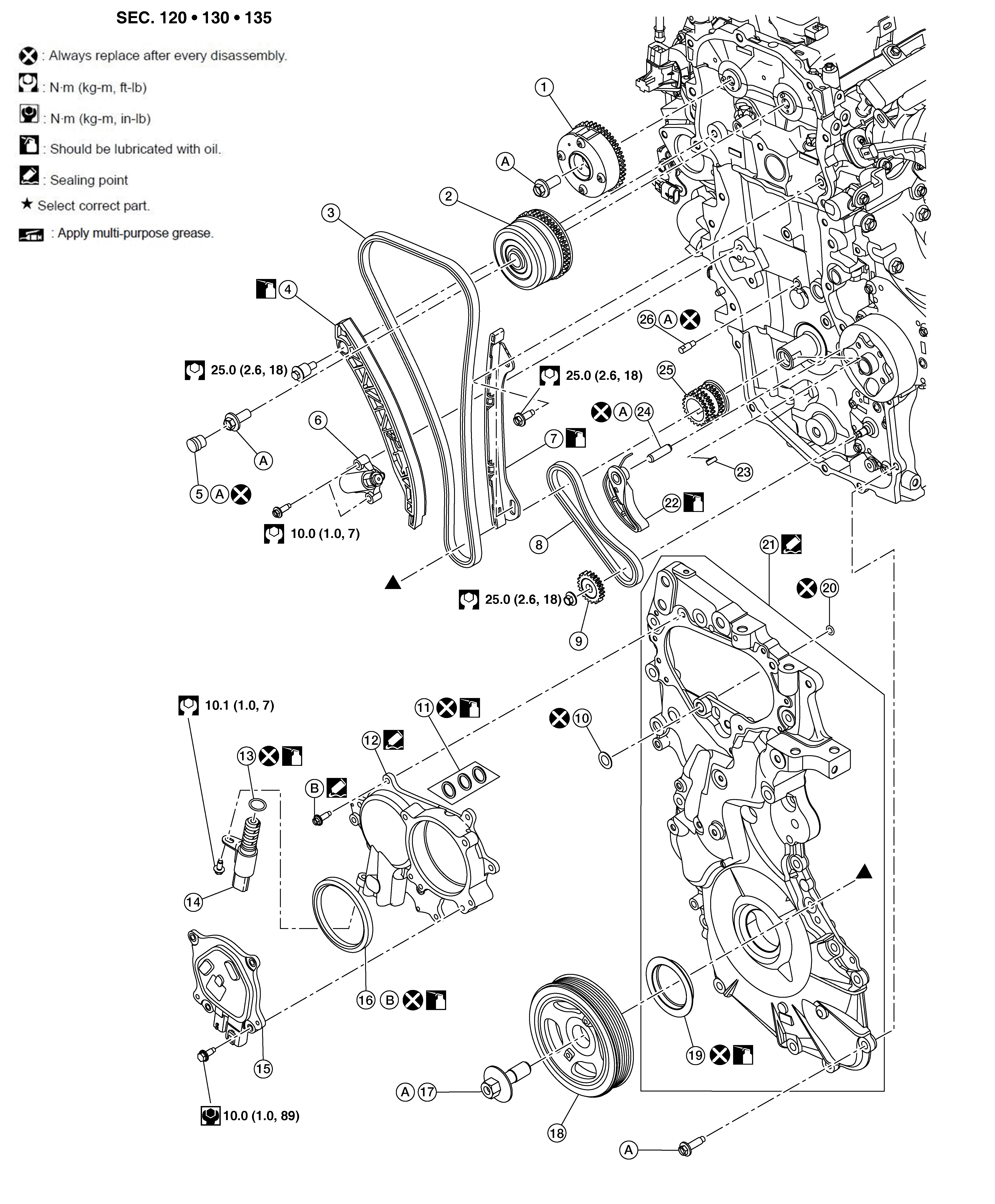

Exploded View
|
1. |
Camshaft sprocket (EXH) |
2. |
Camshaft sprocket (INT) |
3. |
Timing chain |
|
4. |
Slack guide |
5. |
Electric intake valve timing control actuator target |
6. |
Timing chain tensioner |
|
7. |
Tension guide |
8. |
Oil pump drive chain |
9. |
Oil pump sprocket |
|
10. |
Filter |
11. |
O-ring |
12. |
Valve timing control cover |
|
13. |
O-ring |
14. |
Exhaust valve timing control solenoid valve |
15. |
Electric intake valve timing control actuator |
|
16. |
Camshaft sprocket (INT) oil seal |
17. |
Crankshaft pulley bolt |
18. |
Crankshaft pulley |
|
19. |
Front oil seal |
20. |
O-ring |
21. |
Front cover |
|
22. |
Oil pump drive chain tensioner |
23. |
Crankshaft key |
24. |
Oil pump drive chain tensioner shaft |
|
25. |
Crankshaft sprocket |
26. |
Timing chain oil jet |
A. |
Refer to Removal and Installation . |
|
B. |
Refer to Removal and Installation . |
: Indicates that the part is connected at points with the same symbol in actual vehicle.
