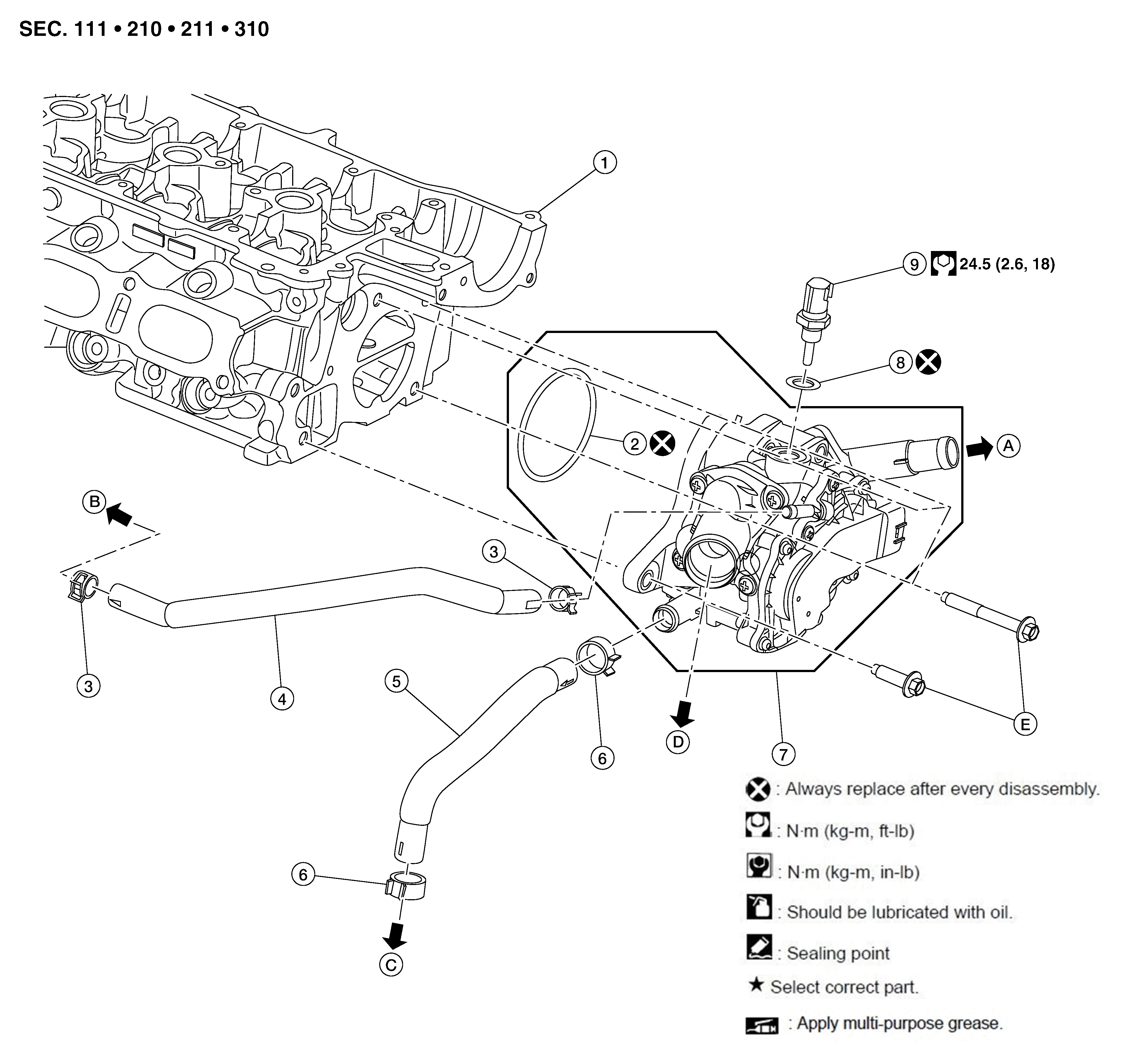

Exploded View
|
1. |
Cylinder head |
2. |
O-ring |
3. |
Clamp |
|
4. |
Water hose A |
5. |
Water hose B |
6. |
Clamp |
|
7. |
Multi-way control valve |
8. |
Copper sealing washer |
9. |
Engine coolant temperature sensor 1 |
|
A. |
To heater core. . |
B. |
To electronic throttle control actuator. Refer to Exploded View . |
C. |
To CVT water hose A. Refer to Exploded View . |
|
D. |
To radiator hose (upper). Refer to Exploded View . |
E. |
Refer to Removal and Installation . |
