System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition

Display on ICC system display

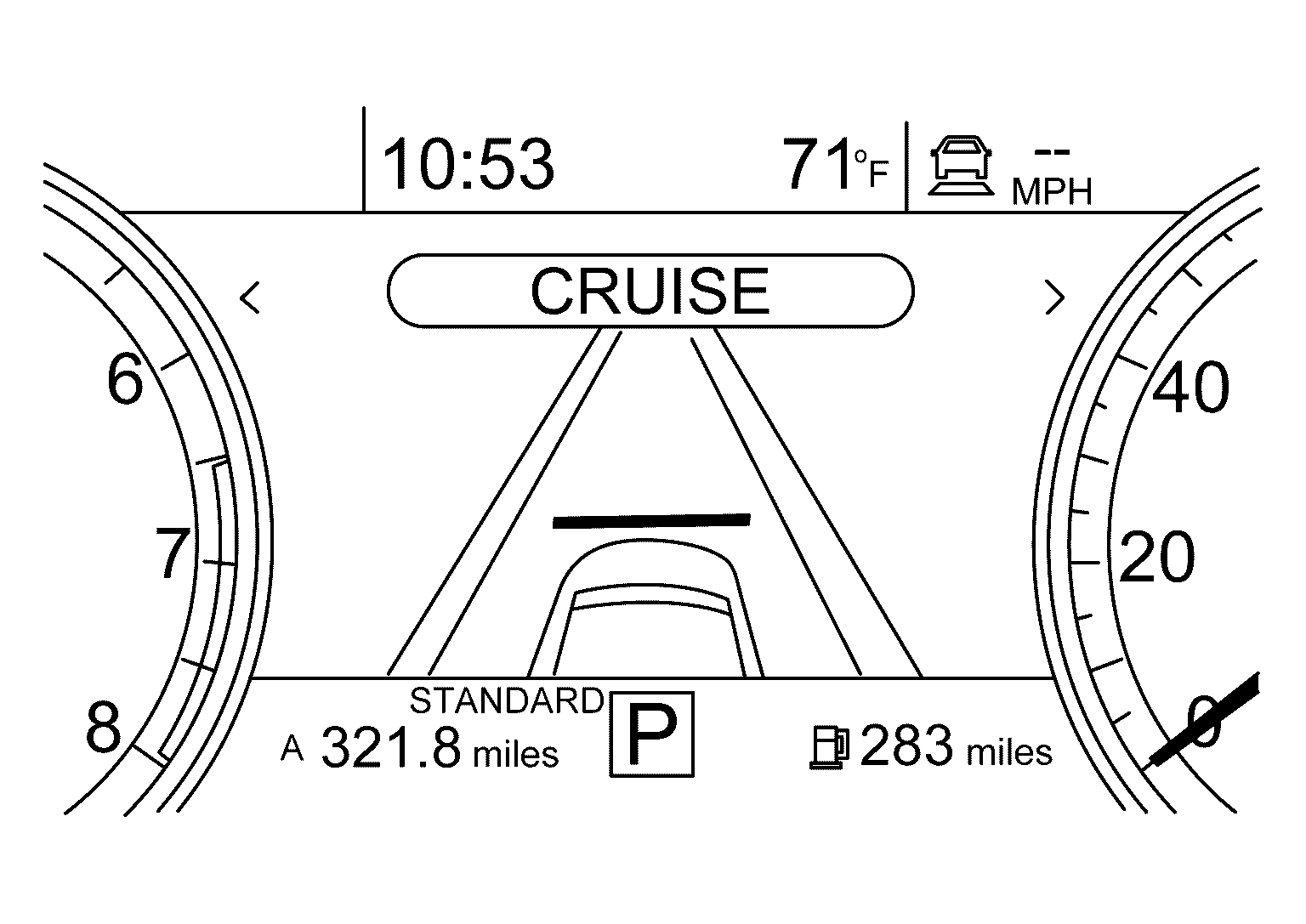

Standby mode

GNSILL0311875Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

Without a vehicle ahead

Set vehicle distance (Long)

GNSALOIA0045Z-045Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Middle)

GNSALOIA0046Z-046Courtesy of NISSAN NORTH AMERICA, INC.

Set vehicle distance (Short)

GNSALOIA0047Z-047Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle speed exceeds the set speed

GNSALOIA0048Z-048Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

With a vehicle ahead

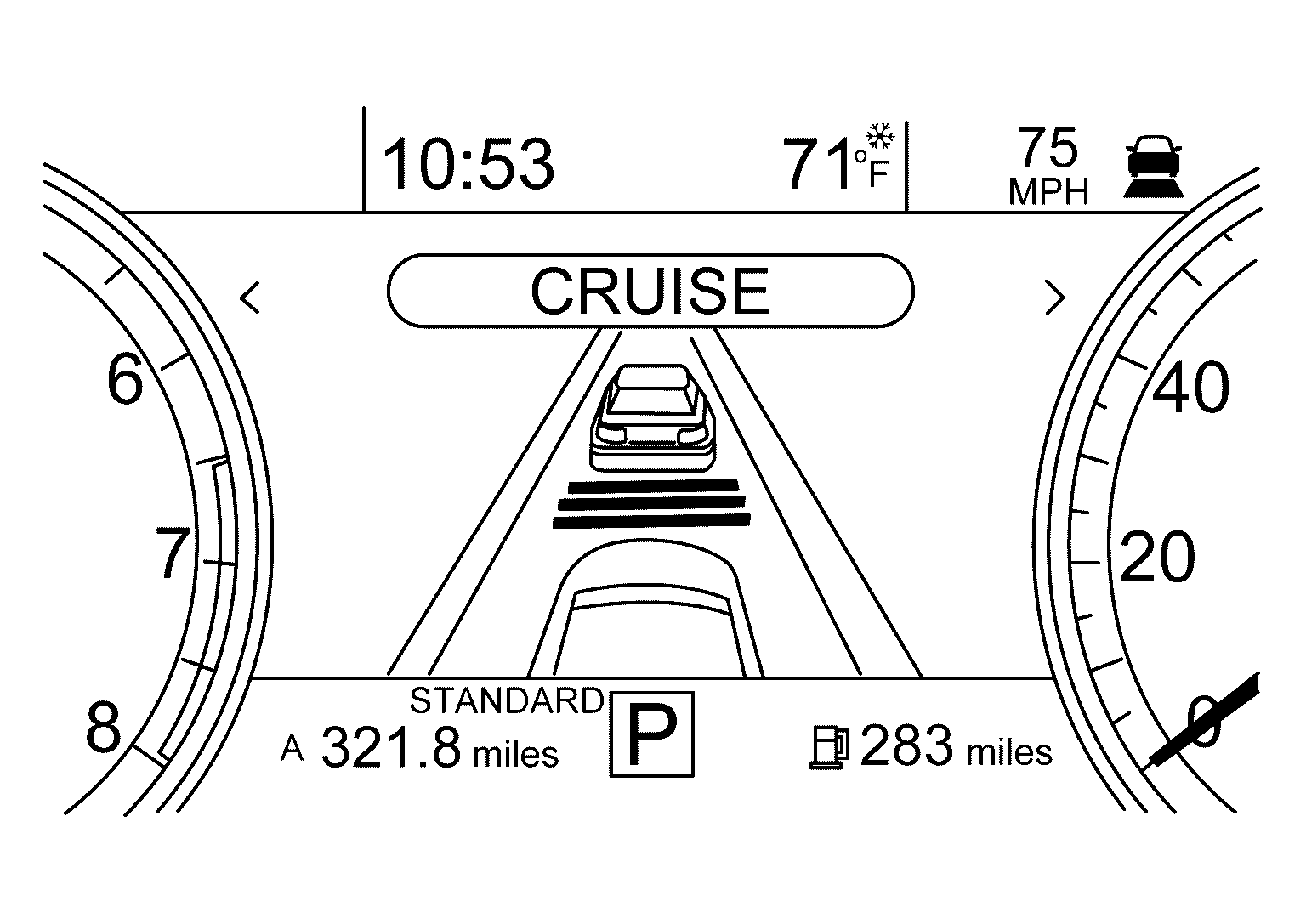

Set vehicle distance (Long)

GNSILL0311876Courtesy of NISSAN NORTH AMERICA, INC.

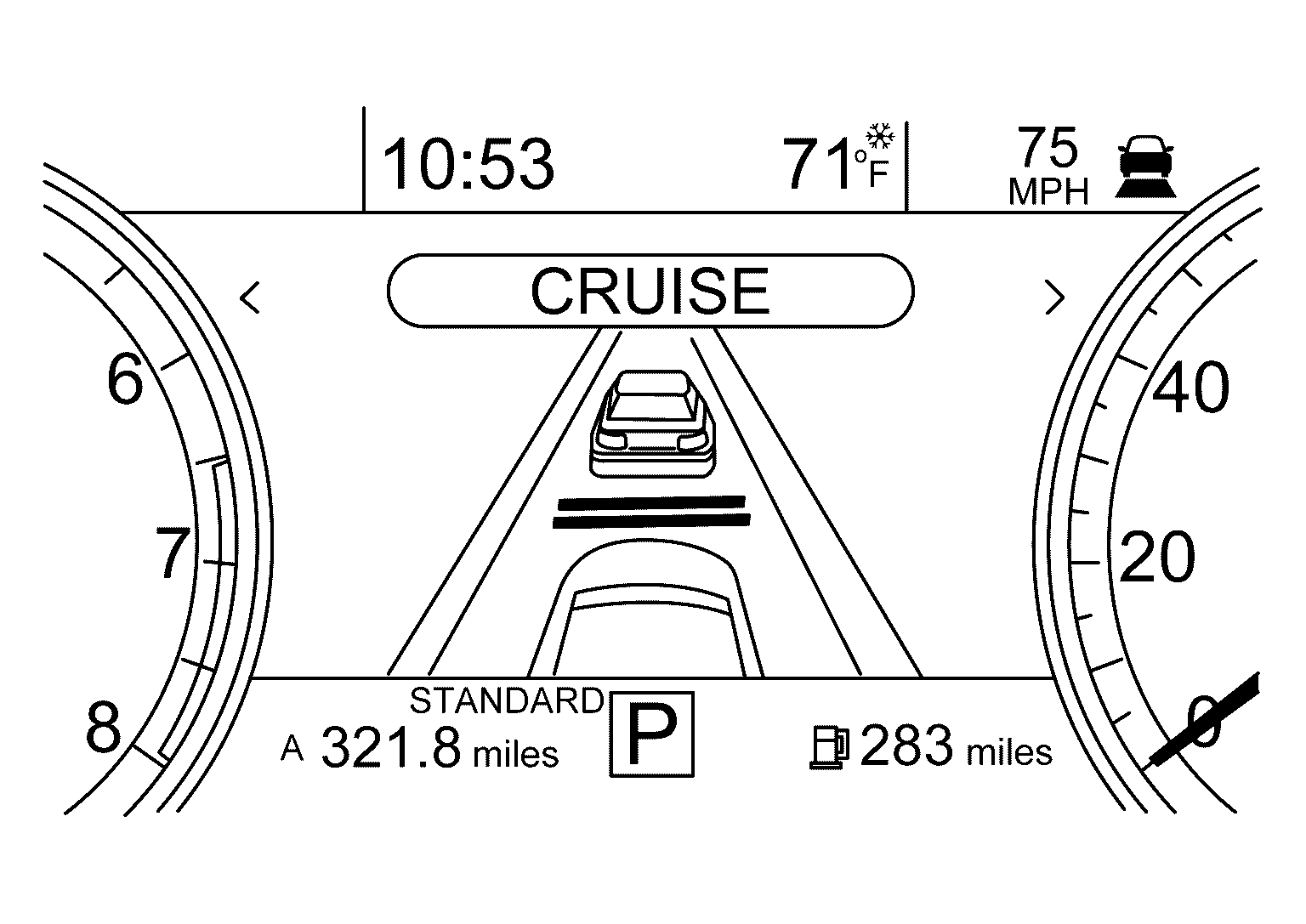

Set vehicle distance (Middle)

GNSILL0311877Courtesy of NISSAN NORTH AMERICA, INC.

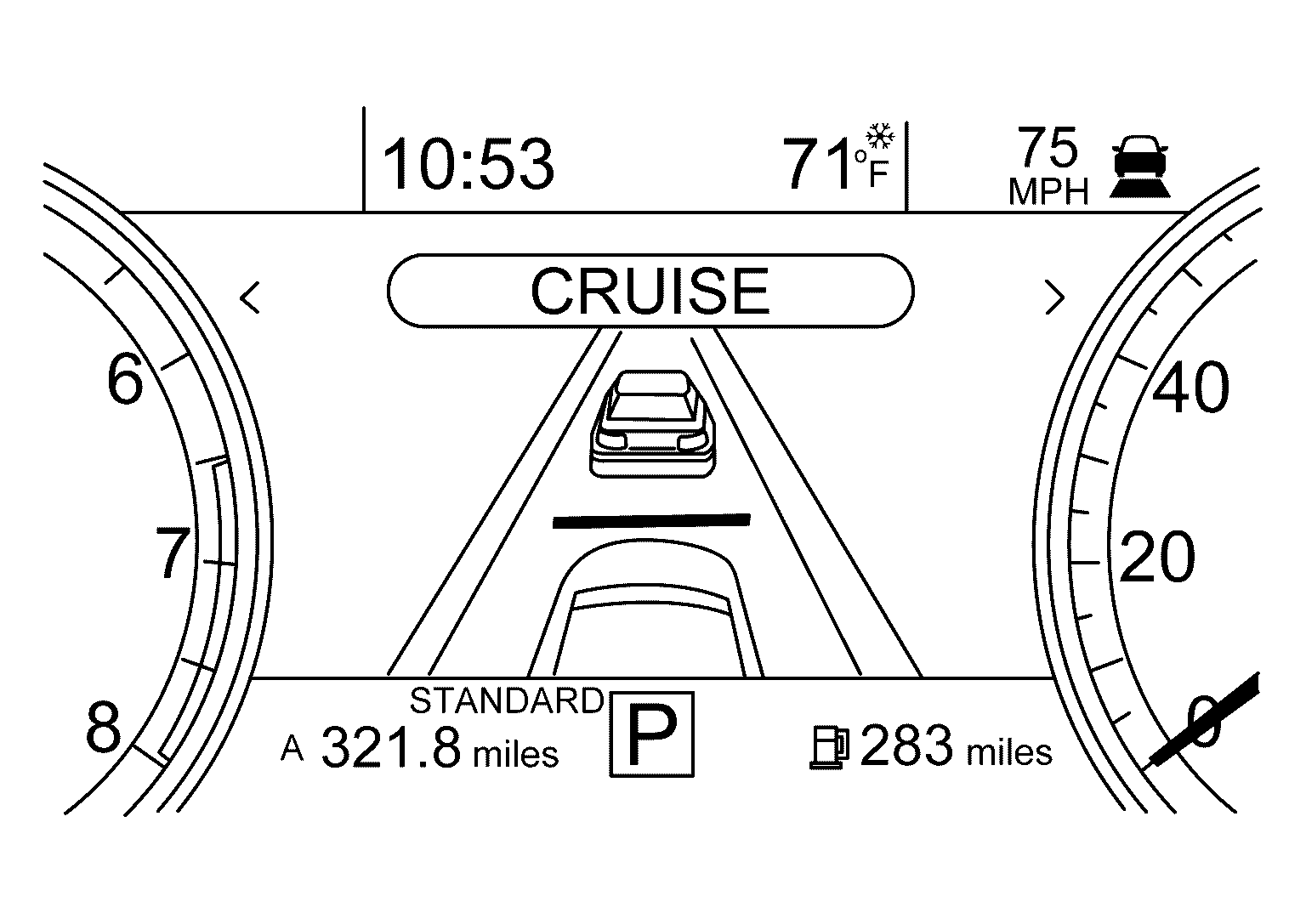

Set vehicle distance (Short)

GNSILL0311878Courtesy of NISSAN NORTH AMERICA, INC.

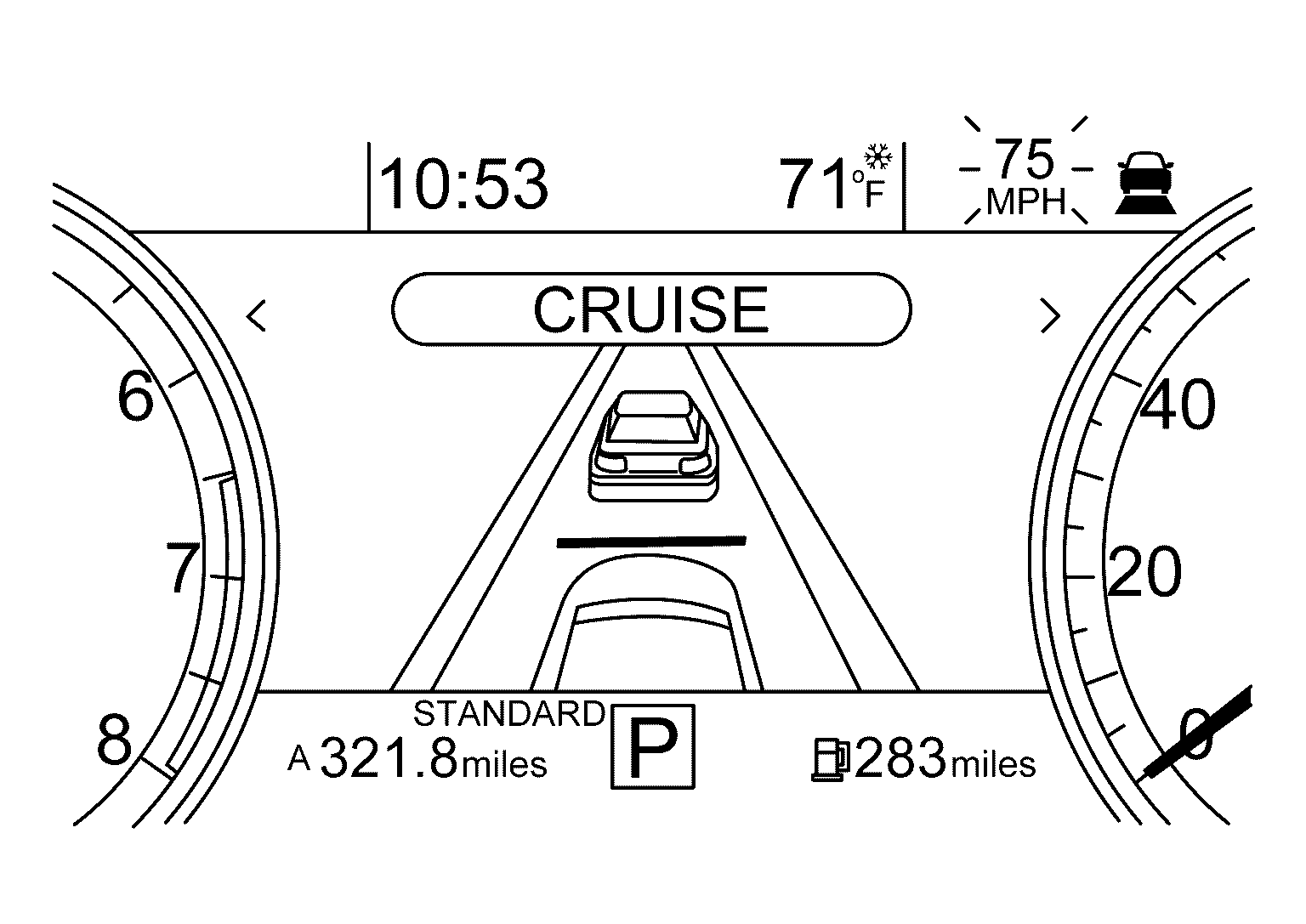

When the vehicle speed exceeds the set speed

GNSILL0311879Courtesy of NISSAN NORTH AMERICA, INC.
