Turbo High Pressure Models

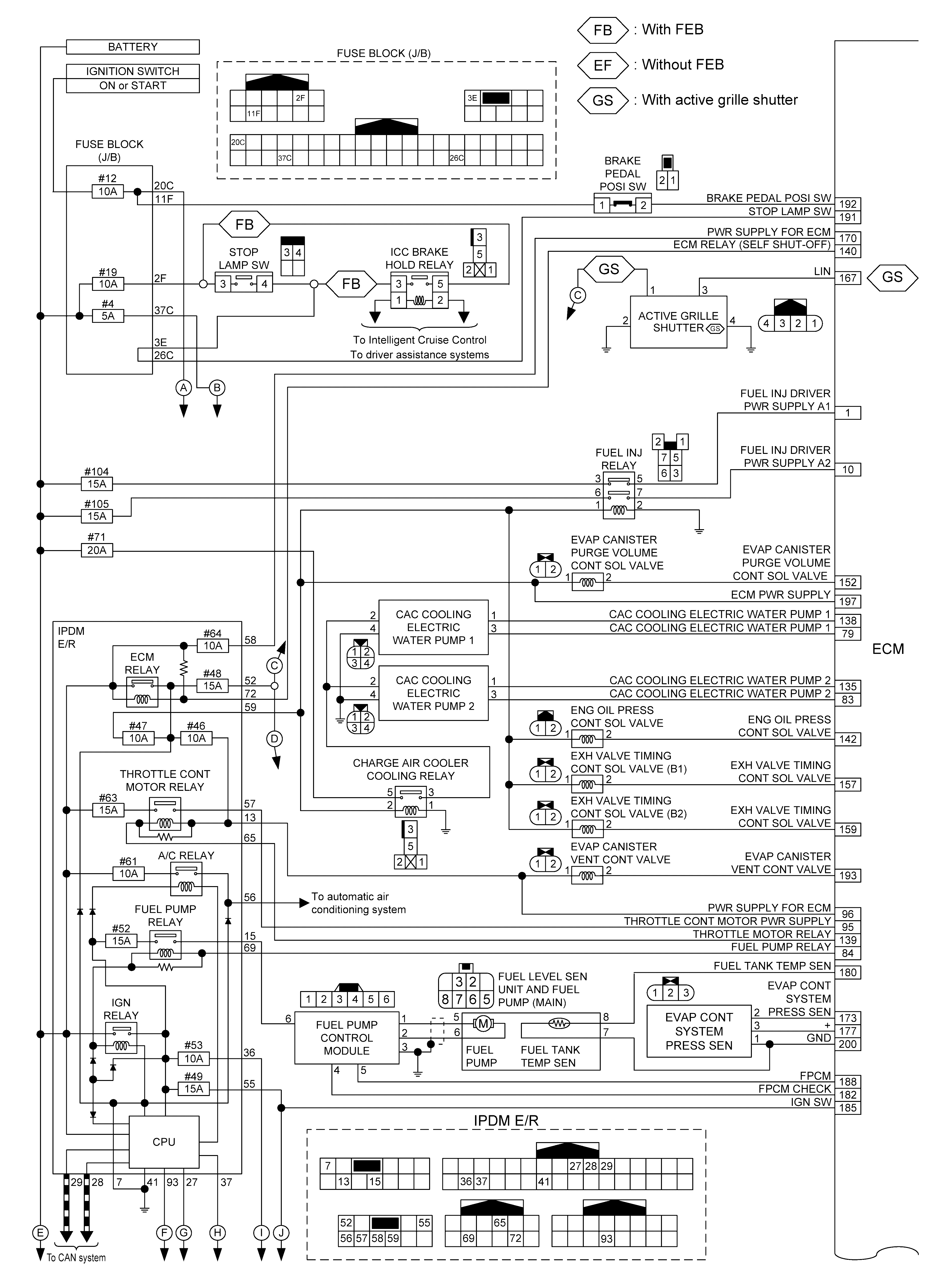

GNSILL0341031

Courtesy of NISSAN NORTH AMERICA, INC.

GNSILL0319019

Courtesy of NISSAN NORTH AMERICA, INC.

GNSILL0332994

Courtesy of NISSAN NORTH AMERICA, INC.

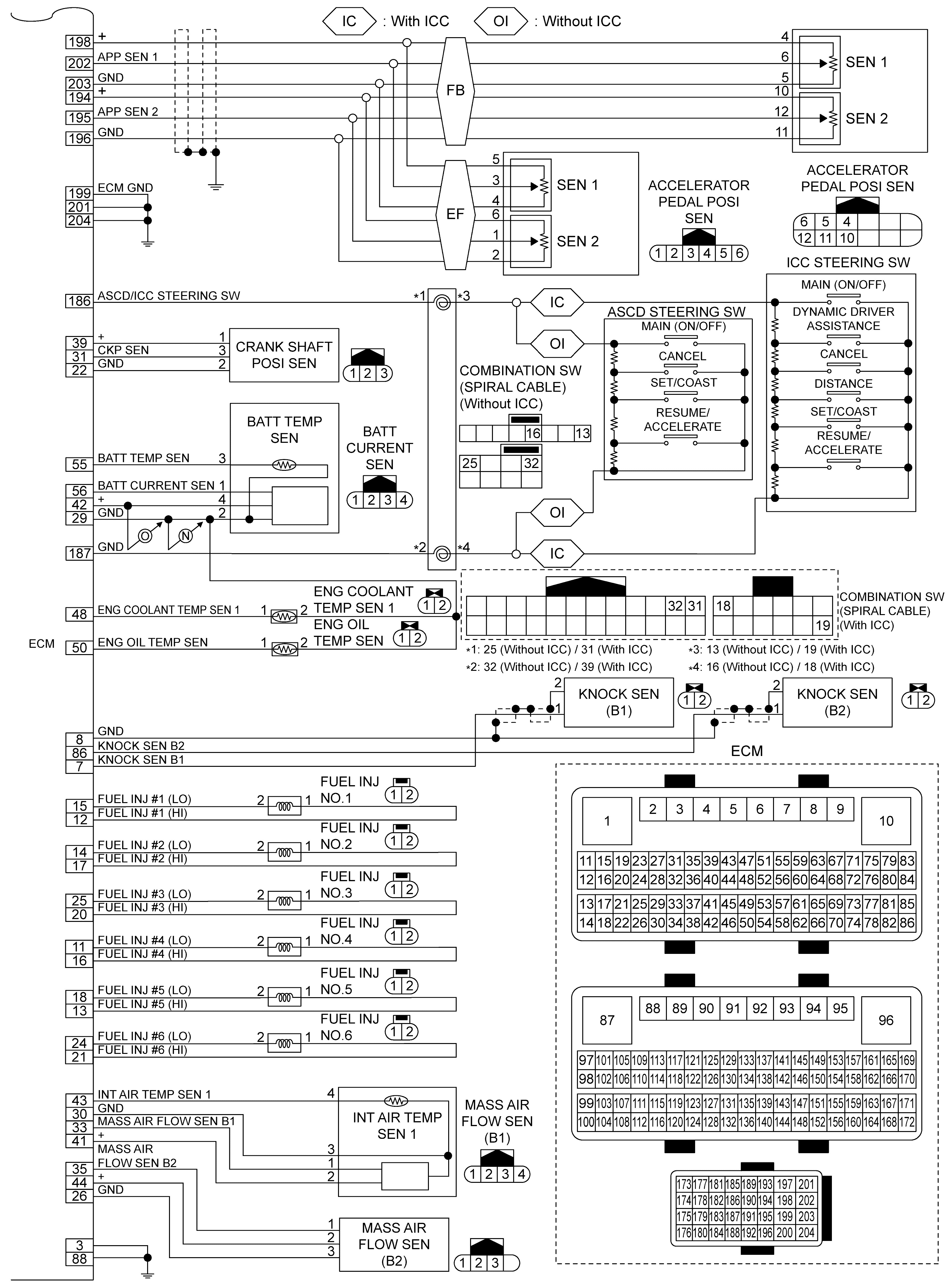

GNSILL0341029

Courtesy of NISSAN NORTH AMERICA, INC.
