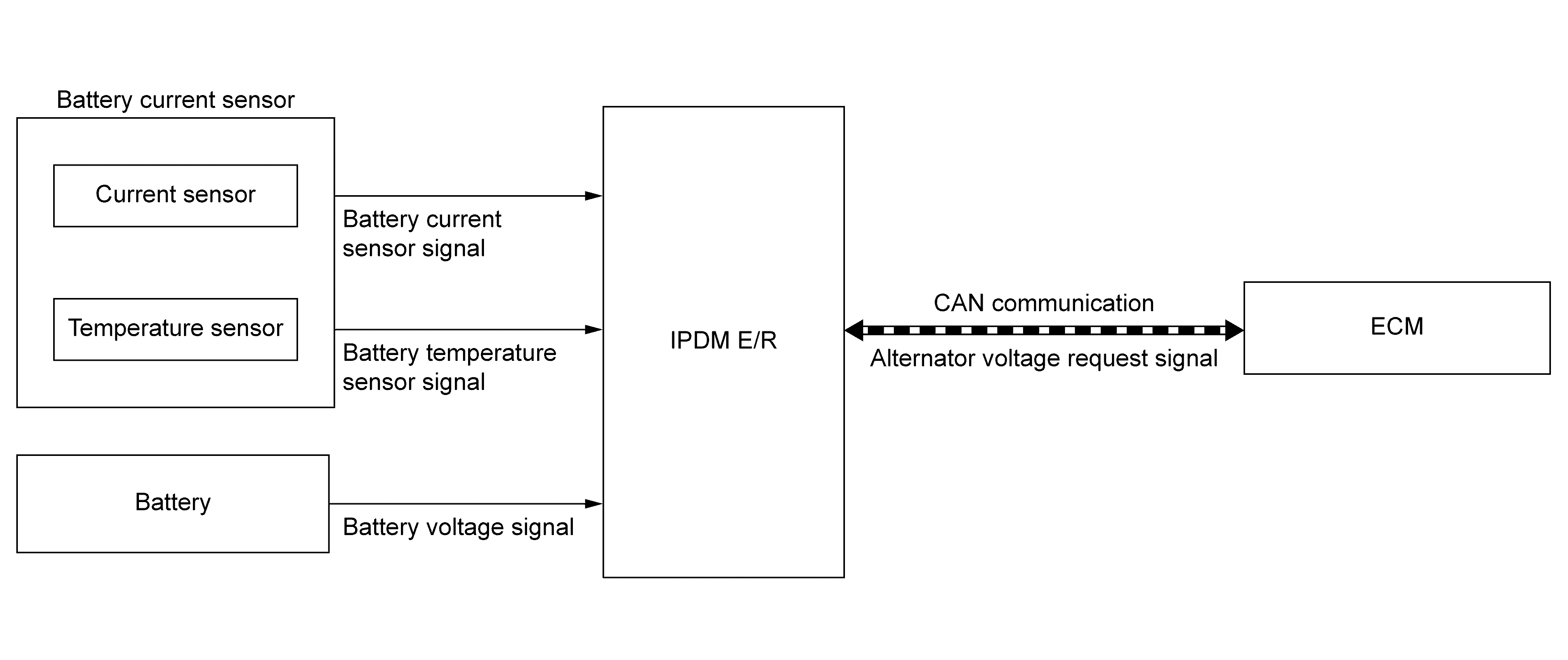

System Diagram
WARNING: This page is about a different car, the 2022 Nissan Rogue Sport. However, it is still accessible from the selected car via links, so may be relevant.
IPDM E/R has an energy management system that recognizes the battery status from the battery current signal from the battery current sensor, the battery temperature sensor signal, and the battery voltage from the battery and maintains normal battery status. Refer to the following for details.
Charging system control: Refer to System Description .
