System Diagram

WARNING: This page is about a different car, the 2022 Nissan Rogue Sport. However, it is still accessible from the selected car via links, so may be relevant.

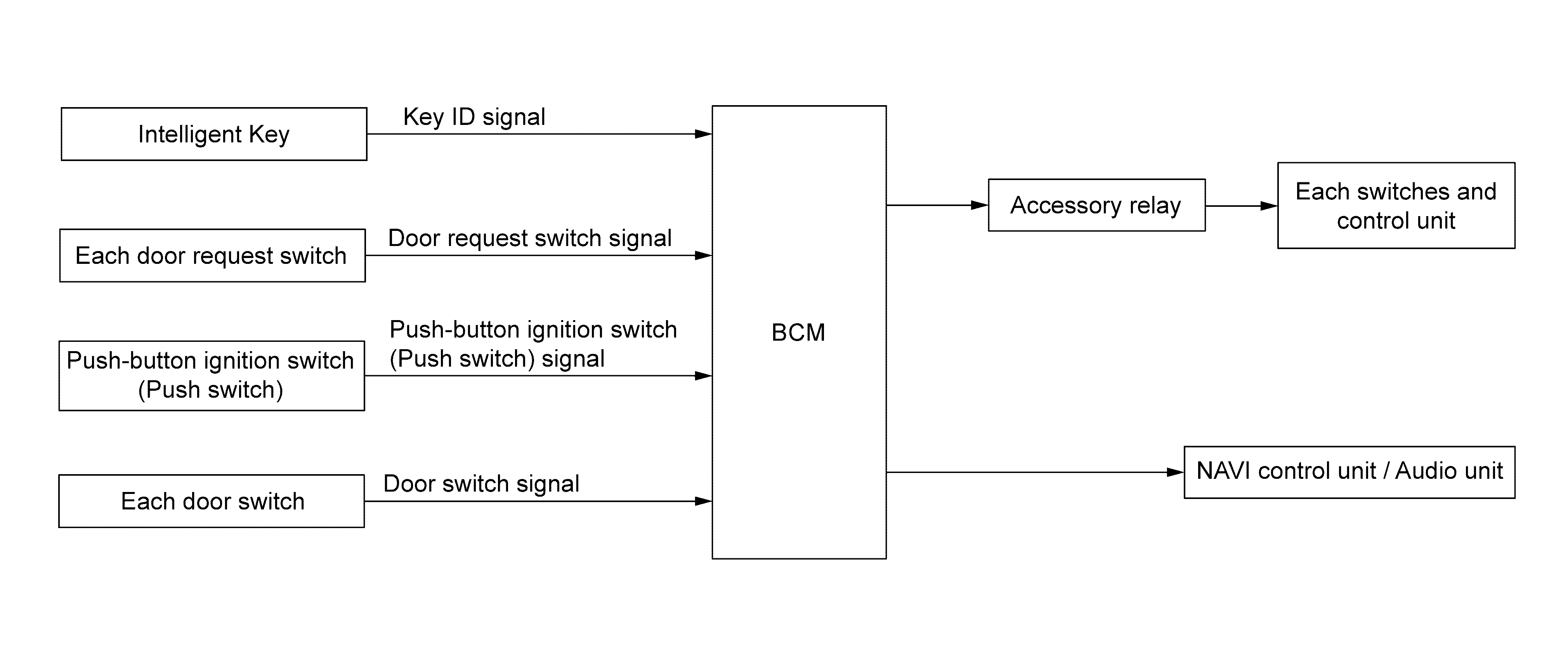

With Intelligent Key

GNSJMMIA2681GB-681Courtesy of NISSAN NORTH AMERICA, INC.

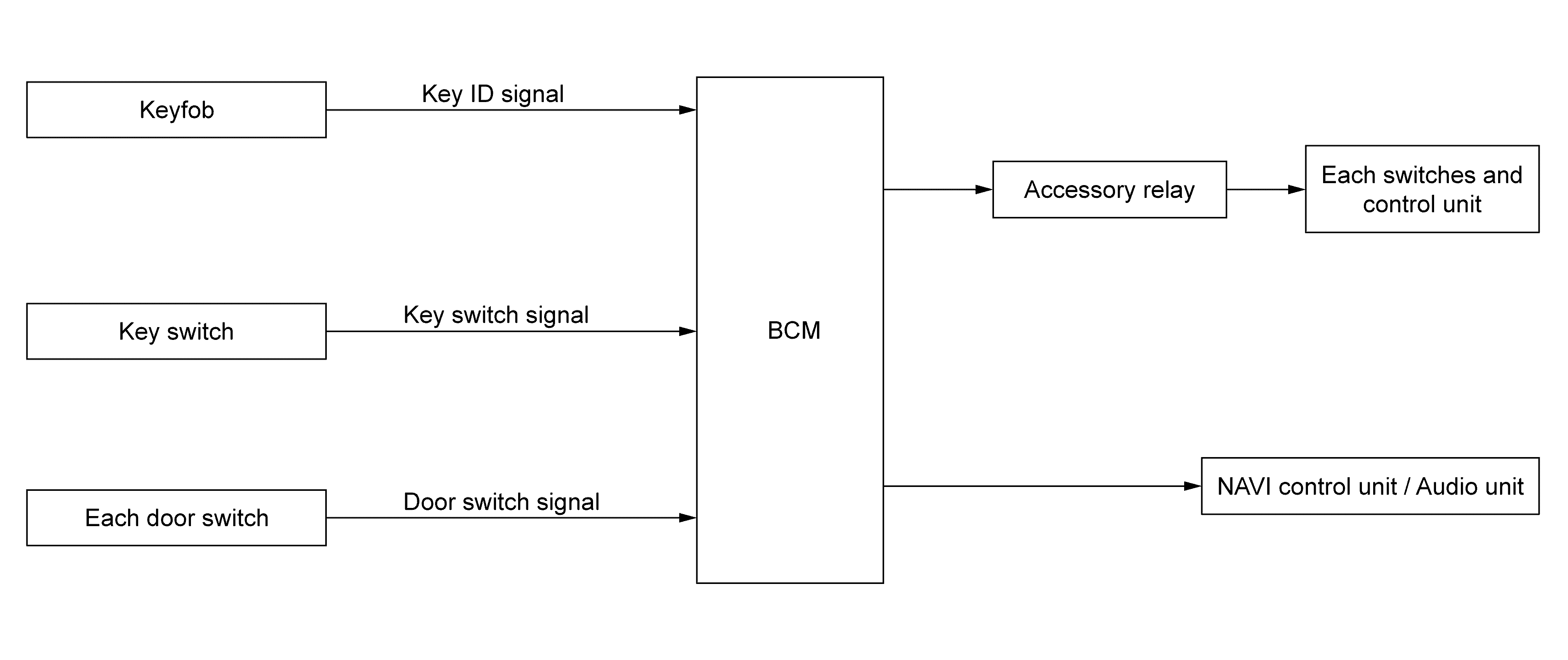

Without Intelligent Key

GNSJMMIA2682GB-682Courtesy of NISSAN NORTH AMERICA, INC.
