Combination Switch Matrix
WARNING: This page is about a different car, the 2022 Nissan Rogue Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LIGHT OFF is not applicable

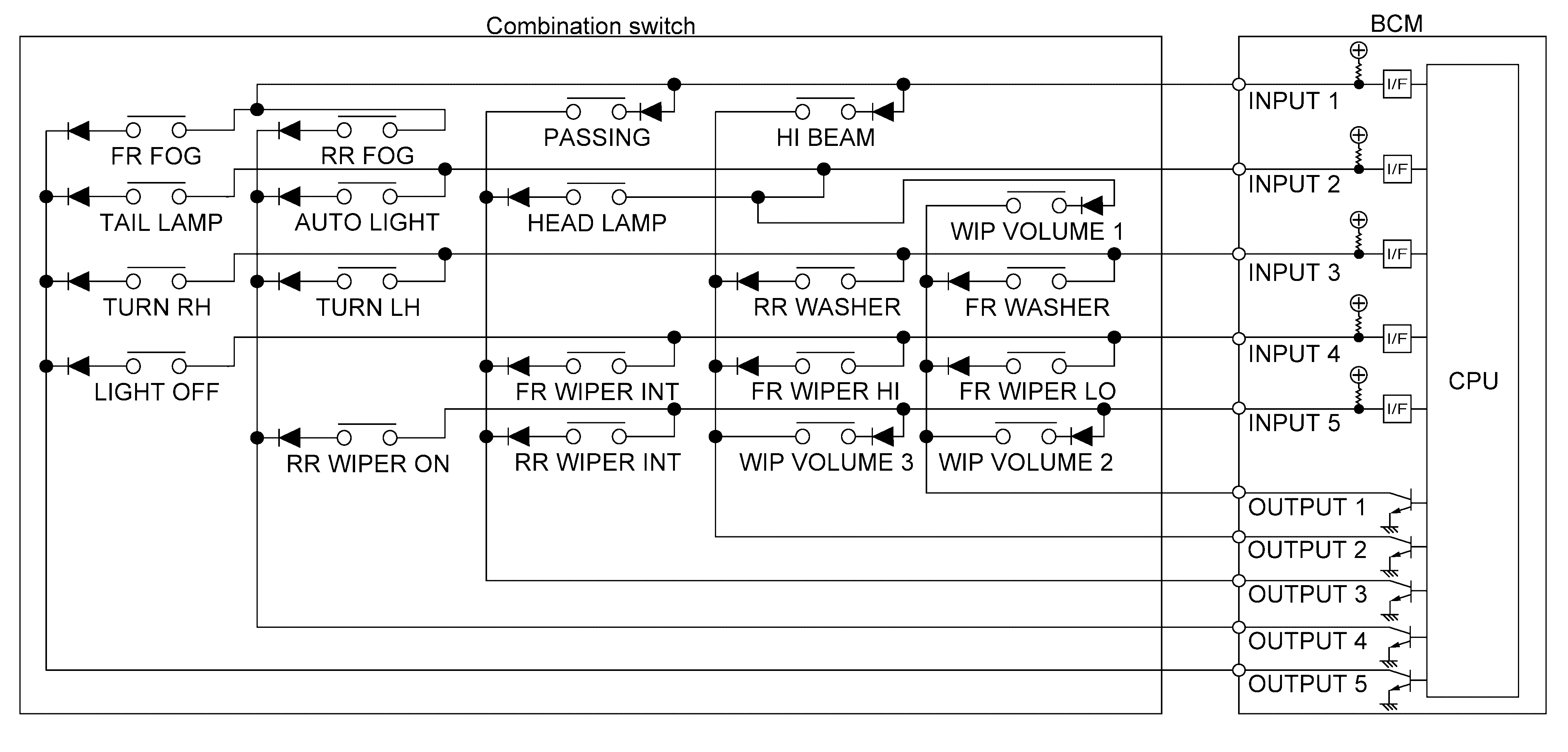

Combination switch INPUT-OUTPUT system list
|
System |
OUTPUT 1 |
OUTPUT 2 |
OUTPUT 3 |
OUTPUT 4 |
OUTPUT 5 |
|
INPUT 1 |
-- |
HI BEAM |
PASSING |
RR FOG |
FR FOG |
|
INPUT 2 |
WIP VOLUME 1 |
-- |
HEADLAMP |
AUTO LIGHT |
TAIL LAMP |
|
INPUT 3 |
FR WASHER |
RR WASHER |
-- |
TURN LH |
TURN RH |
|
INPUT 4 |
FR WIPER LO |
FR WIPER HI |
FR WIPER INT/AUTO |
-- |
-- |
|
INPUT 5 |
WIP VOLUME 2 |
WIP VOLUME 3 |
RR WIPER INT |
RR WIPER ON |
-- |
