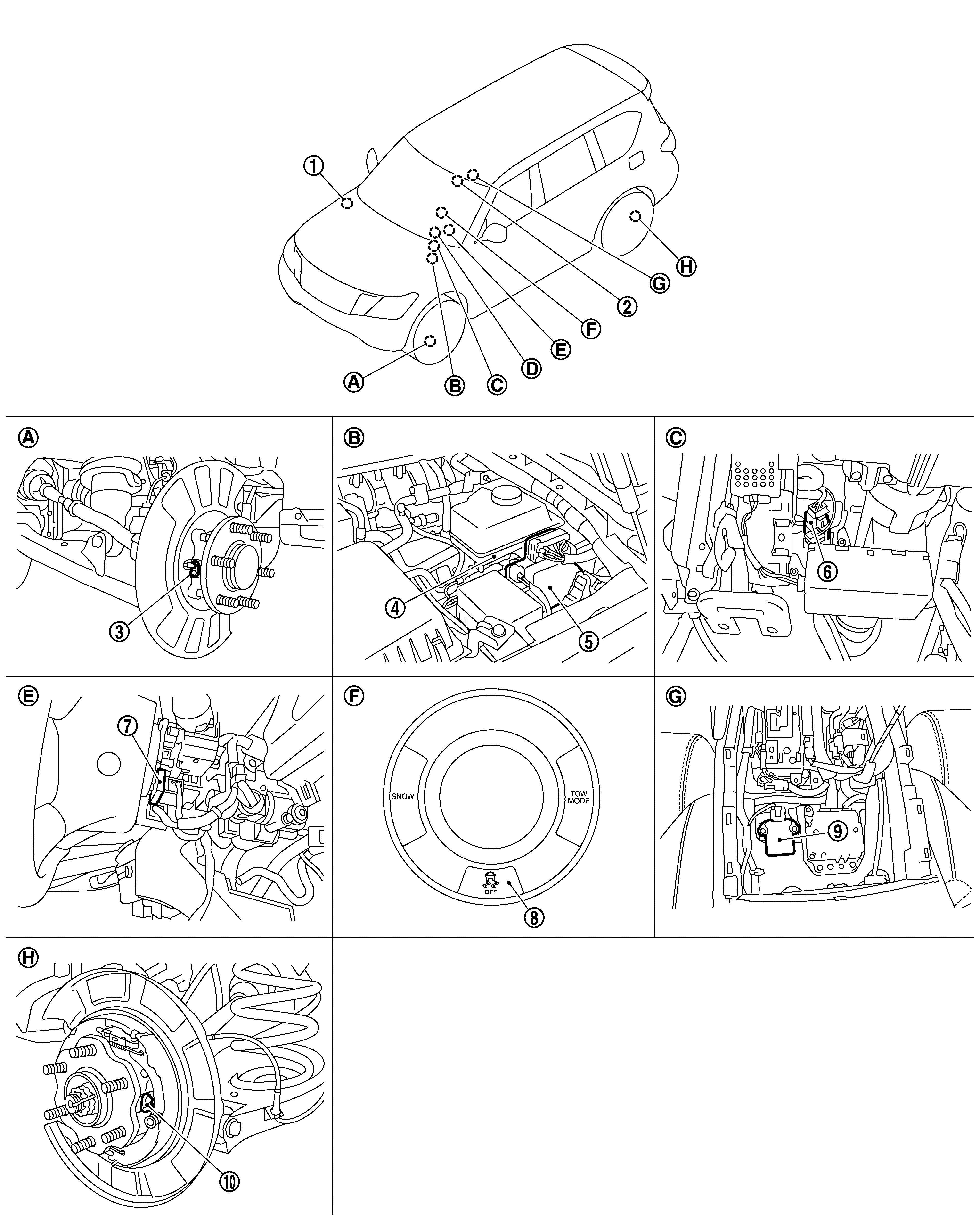

Component Location: 2WD
|
1. |
ECM Refer to Component Location . |
2. |
Control valve & TCM Refer to Component Location . |
3. |
Front wheel sensor Refer to Component Description . |
|
4. |
Brake fluid level switch Refer to Component Description . |
5. |
ABS actuator and electric unit (control unit) Refer to Component Description . |
6. |
Stop lamp switch Refer to Component Description . |
|
7. |
Steering angle sensor Refer to Component Description . |
8. |
VDC OFF switch Refer to Component Description . |
9. |
Yaw rate/side/decel G sensor Refer to Component Description . |
|
10. |
Rear wheel sensor Refer to Component Description . |
||||
|
A. |
Front wheel hub and bearing assembly |
B. |
Inside engine room |
C. |
Brake pedal |
|
D. |
ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp |
E. |
Back of spiral cable assembly |
F. |
Center console assembly |
|
G. |
Under center console assembly |
H. |
Rear wheel hub and bearing assembly |
