Work Procedure

WARNING:

Always check the piping for loose connections, damage, or twists before starting operation, since pressure in hydraulic circuit becomes high during operation.
When repairing or replacing a malfunctioning part, always release pressure from hydraulic circuit, since dangerous conditions may be created when oil leakage occurs during air bleeding operation.

CAUTION:

Clean surrounding areas of oil injection jack and air bleeder using steam before starting operation, since there may be mud on it.
Clean suspension oil pump (SST: KV40107700) jack with steam before use.
Check system pressure again 1 day or more after bleeding operation is complete, since system pressure may decrease when air bleeding is insufficient.

NOTE: Air bleeding requires more suspension fluid than specified amount.

Lift up the vehicle.
Remove protector of PPMU.
Remove cap of oil injection jack.

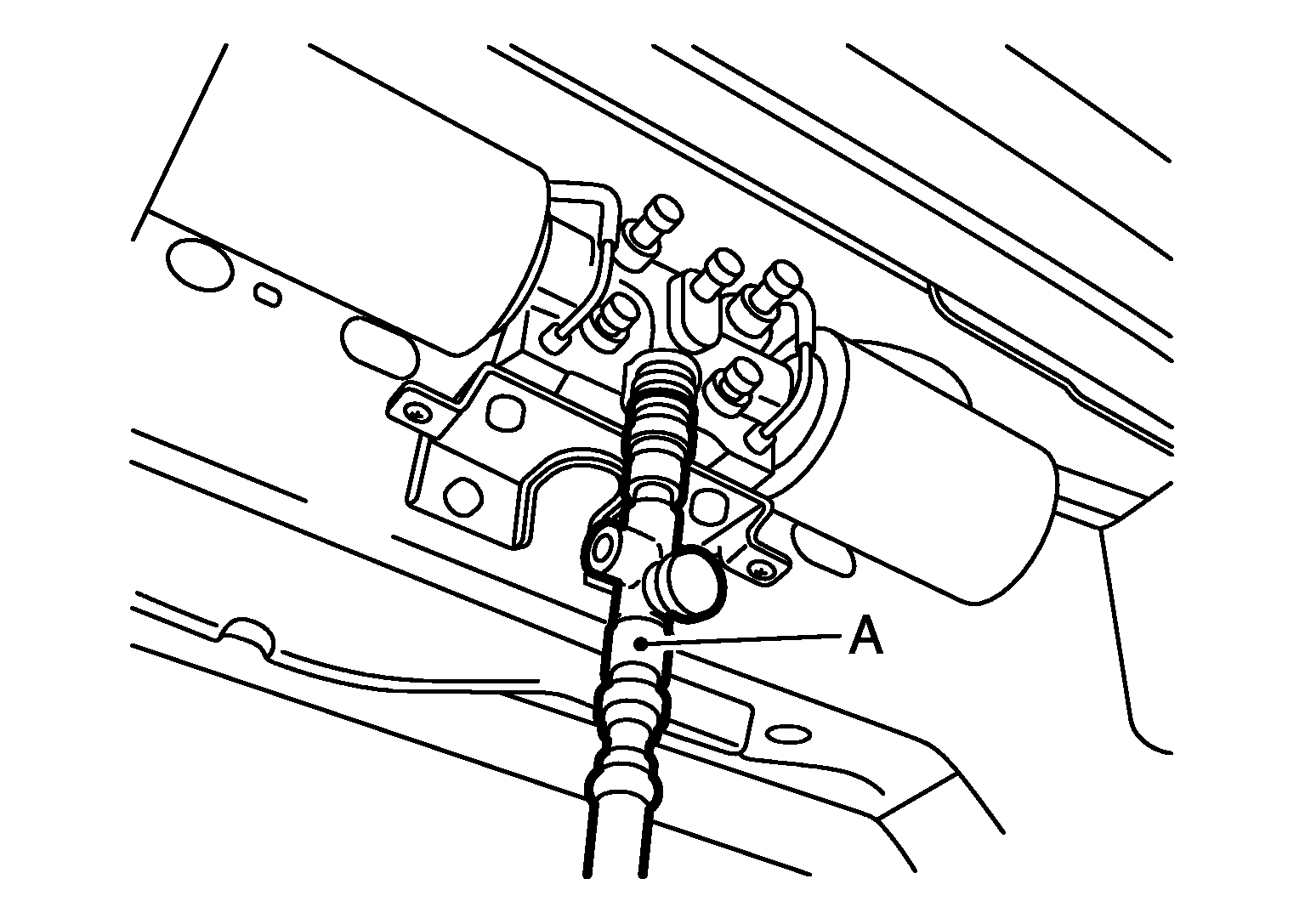

Install hose (A) of a suspension oil pump (SST: KV40107700) to oil injection jack.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Jack must be securely inserted until a click sound can be heard.

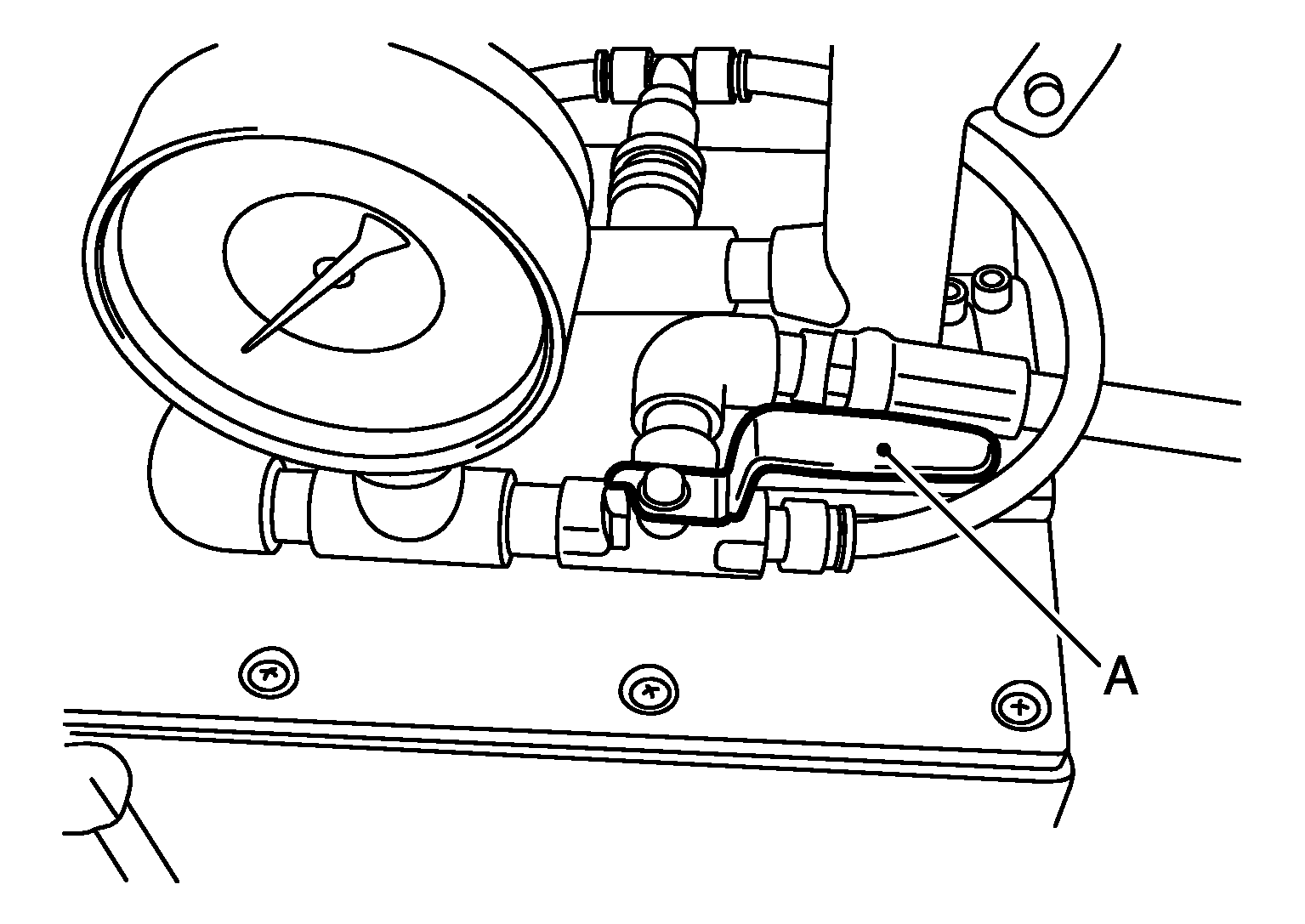

Loosen pressure reducing valve (A) of hose portion of suspension oil pump.

Courtesy of NISSAN NORTH AMERICA, INC.

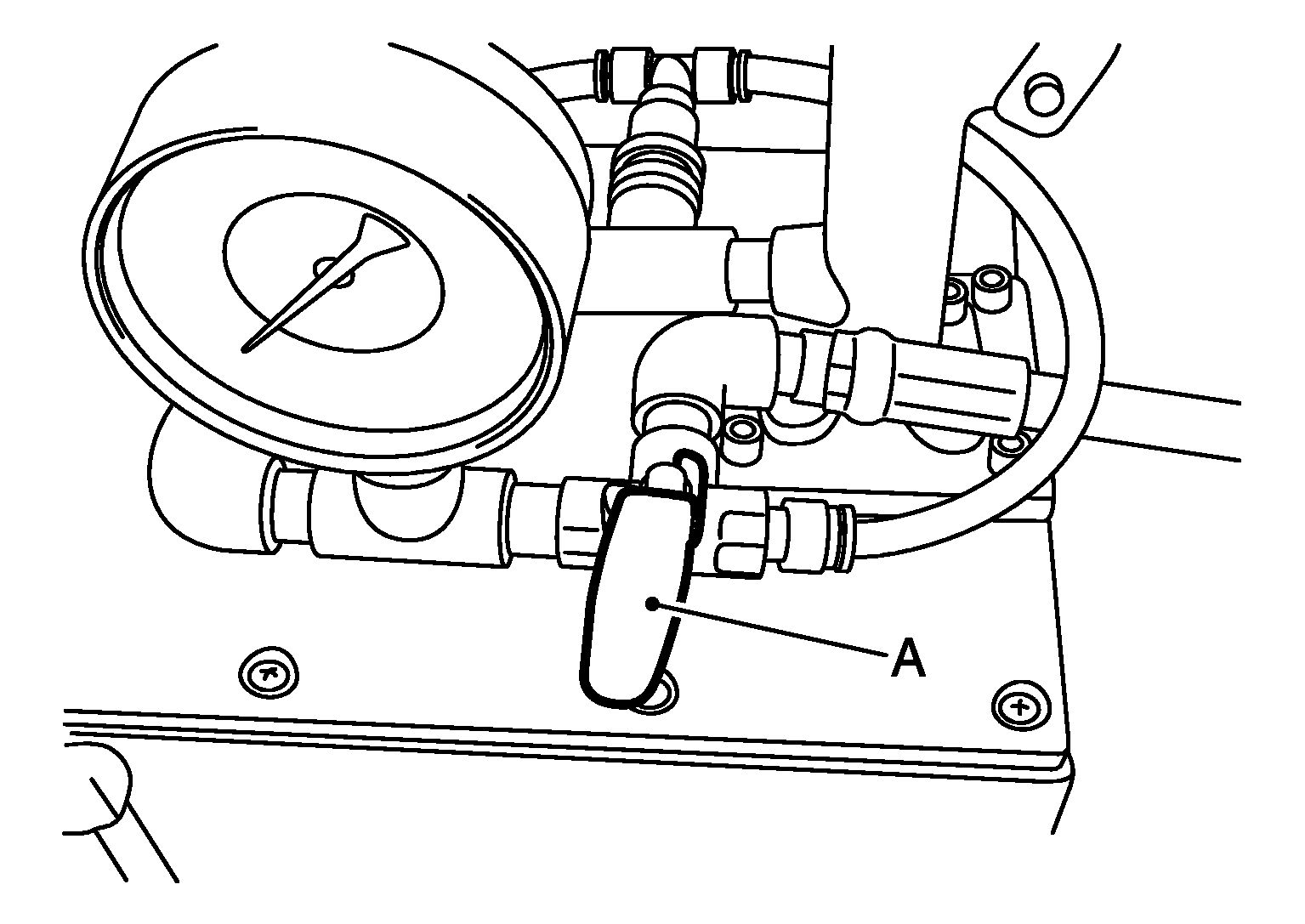

Set knob (A) of suspension oil pump to the direction as shown in the figure.

Courtesy of NISSAN NORTH AMERICA, INC.

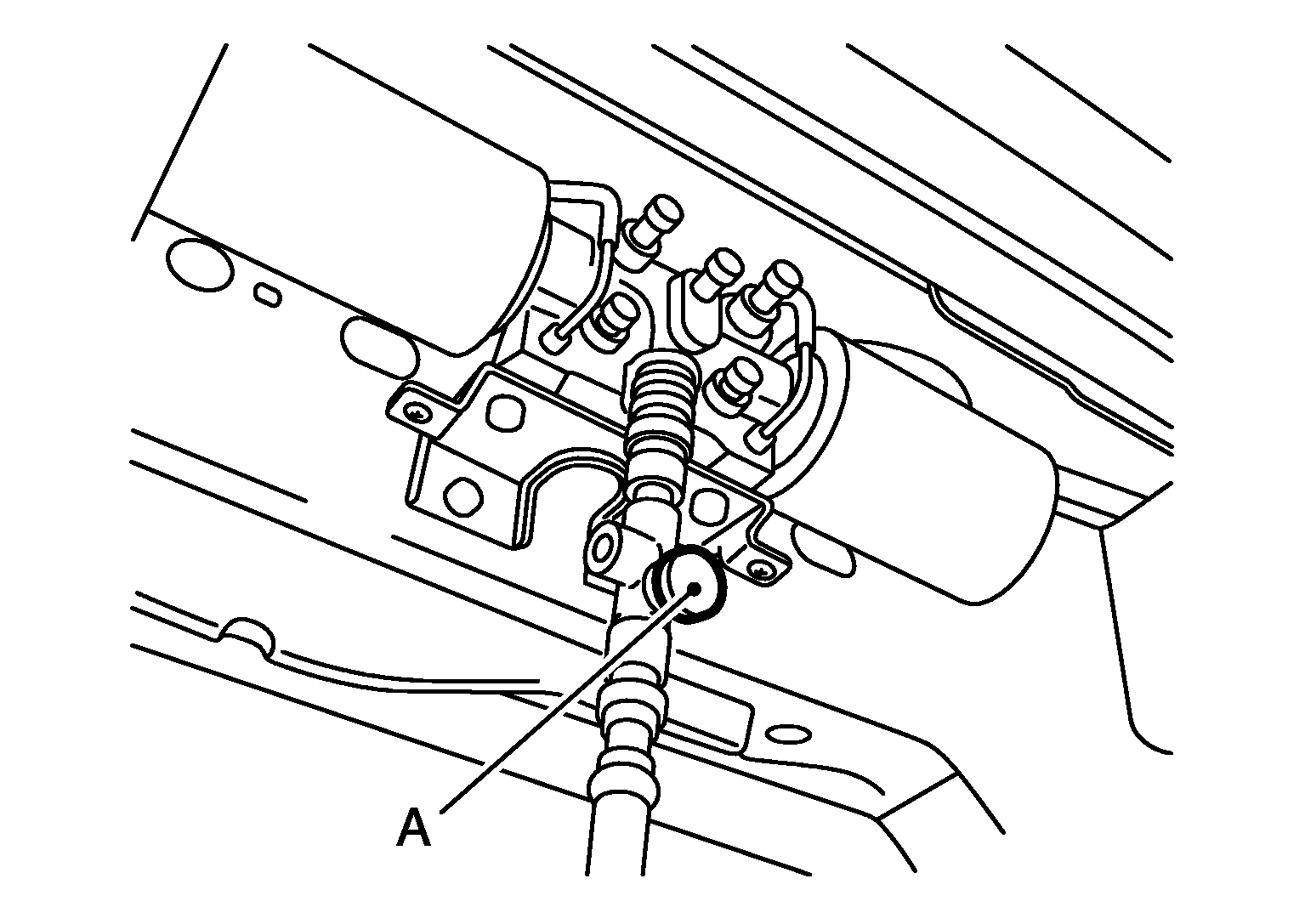

Close pressure reducing valve of hose portion of suspension oil pump while sending oil by applying pressure using suspension oil pump. (Air bleeding in hose is complete.)
Loosen needle valves A, C, and E of PPMU by approximately 2 rotations.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never loosen the needle valve more than required.
Install bleeder tube and drain tank to bleeder valve in upper side of rear shock absorber RH.
Loosen bleeder valve and bleed air while sending oil by applying pressure using suspension oil pump, and then quickly tighten air bleeder.
CAUTION: Be careful that oil in suspension oil pump is not at half or less.
Repeat step 10 until no air appears in bleeder tube.

Tighten bleeder valve to the specified torque. Refer to FRONT TUBE ASSEMBLY : Exploded View . (front shock absorber), refer to REAR SHOCK ABSORBER : Exploded View . (upper side of rear shock absorber).

Lower side of rear shock absorber
Tightening torque		: 8.3 N.m (0.85 kg-m, 73 in-lb)

Perform operation according to steps 9 to 12 in the order of rear shock absorber RH (lower side) -> front shock absorber RH (upper side and lower side) -> rear shock absorber LH (upper side and lower side) -> front shock absorber LH (upper side and lower side).
Repeat steps 9 to 13 (2nd turn).

Refer to the figure and send oil by applying pressure.

Before vehicle identification number:

Destination	Axle	Seat	Before vehicle identification number	Applying pressure
USA and Canada	2WD	7	JN8AZ2NFXL9702543	Courtesy of NISSAN NORTH AMERICA, INC.
		8	JN8AZ2ND9L9860130
	4WD	7	JN8AZ2NE1L9253566
		8	JN8AZ2NC8L9470322
Mexico	4WD	7	JN1AZ28C4L9050003
		8

After vehicle identification number:

Destination	Axle	Seat	After vehicle identification number	Applying pressure
USA and Canada	2WD	7	JN8AZ2NFXL9702544	Courtesy of NISSAN NORTH AMERICA, INC.
		8	JN8AZ2ND9L9860131
	4WD	7	JN8AZ2NE1L9253567
		8	JN8AZ2NC8L9470323
Mexico	4WD	7	JN1AZ28C4L9050004
		8

Tighten needle valves A, C, and E of PPMU to the specified torque.

Tightening torque

: 8.3 N.m (0.85 kg-m, 73 in-lb)

Set knob (A) of suspension oil pump to the direction as shown in the figure and check that reading of pressure gauge is 0 MPa.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove hose of suspension oil pump.
Install cap of oil injection jack.
Install protector of PPMU. Refer to ACCUMULATOR : Exploded View .
