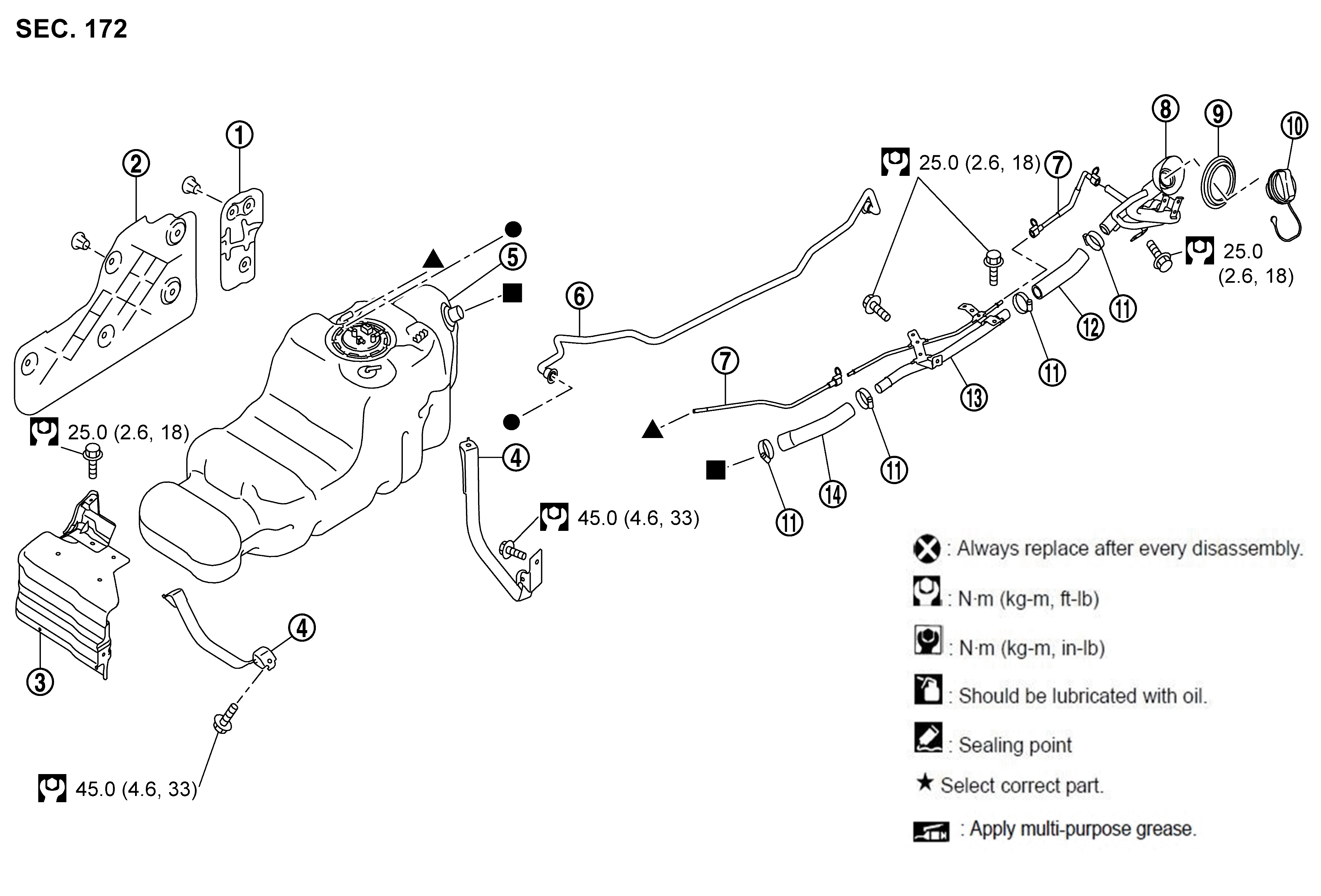

FUEL TANK : Exploded View

1.

Fuel tank side protector

2.

Fuel tank side protector

3.

Fuel tank front protector

4.

Fuel tank mounting band

5.

Fuel tank

6.

Vent hose

7.

EVAP tube

8.

Fuel filler tube

9.

Grommet

10.

Fuel filler cap

11.

Clamp

12.

Fuel filler hose

13.

Fuel filler tube

14.

Fuel filler hose

, , : Indicates that the part is connected at points with same symbol in actual vehicle.

: N.m (kg-m, ft-lb)
