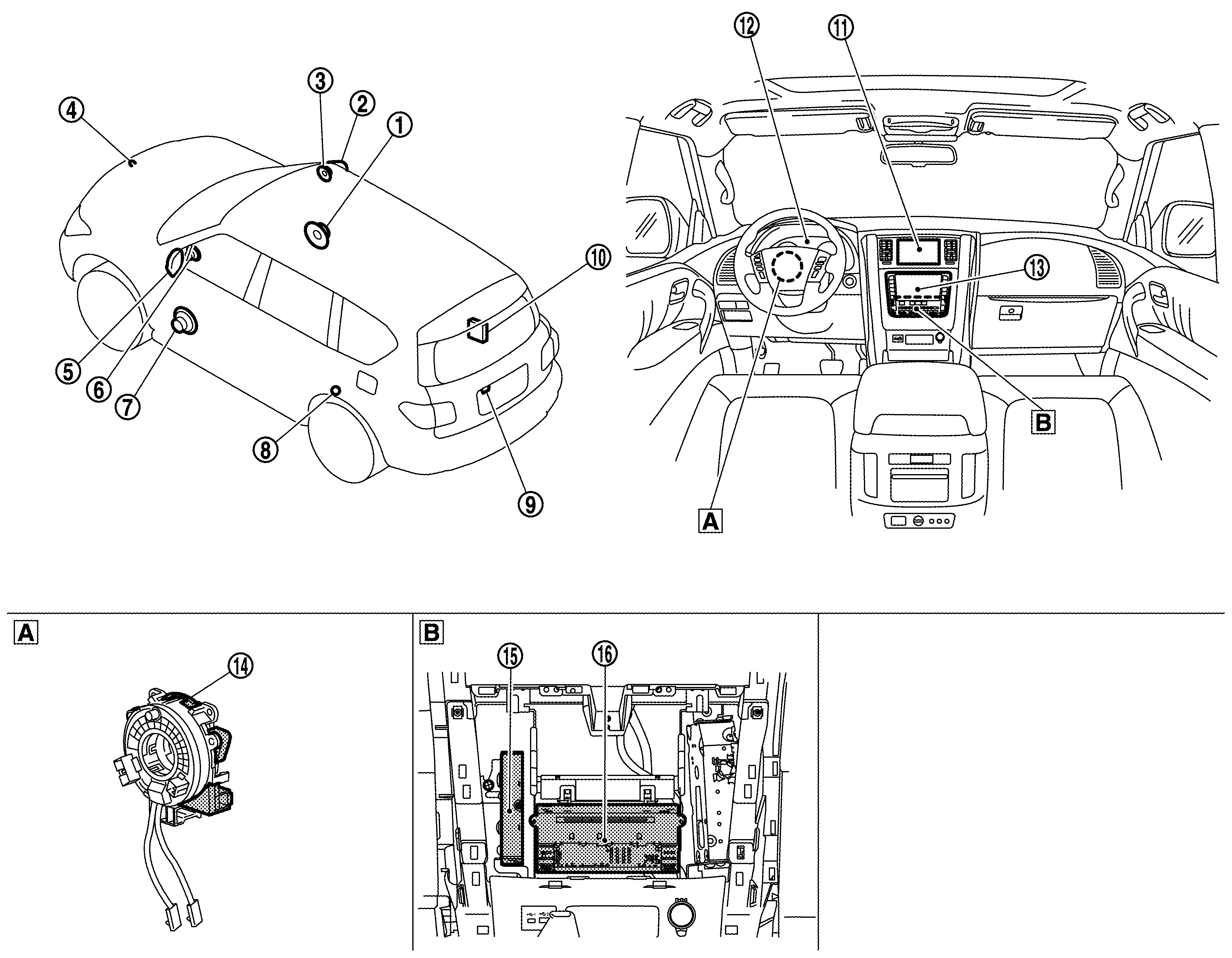

Component Location: Notes
|
1. |
Front door speaker RH |
2. |
Side camera RH |
3. |
Front door tweeter RH |
|
4. |
Front camera |
5. |
Side camera LH |
6. |
Front door tweeter LH |
|
7. |
Front door speaker LH |
8. |
ADAS control unit |
9. |
Rear camera |
|
10. |
BOSE amp. |
11. |
Display unit |
12. |
Combination meter |
|
13. |
Integral switch |
14. |
Steering angle sensor |
15. |
Around view monitor control unit |
|
16. |
AV control unit |
||||
|
A. |
Spiral cable part |
B. |
Cluster lid C removed condition |
