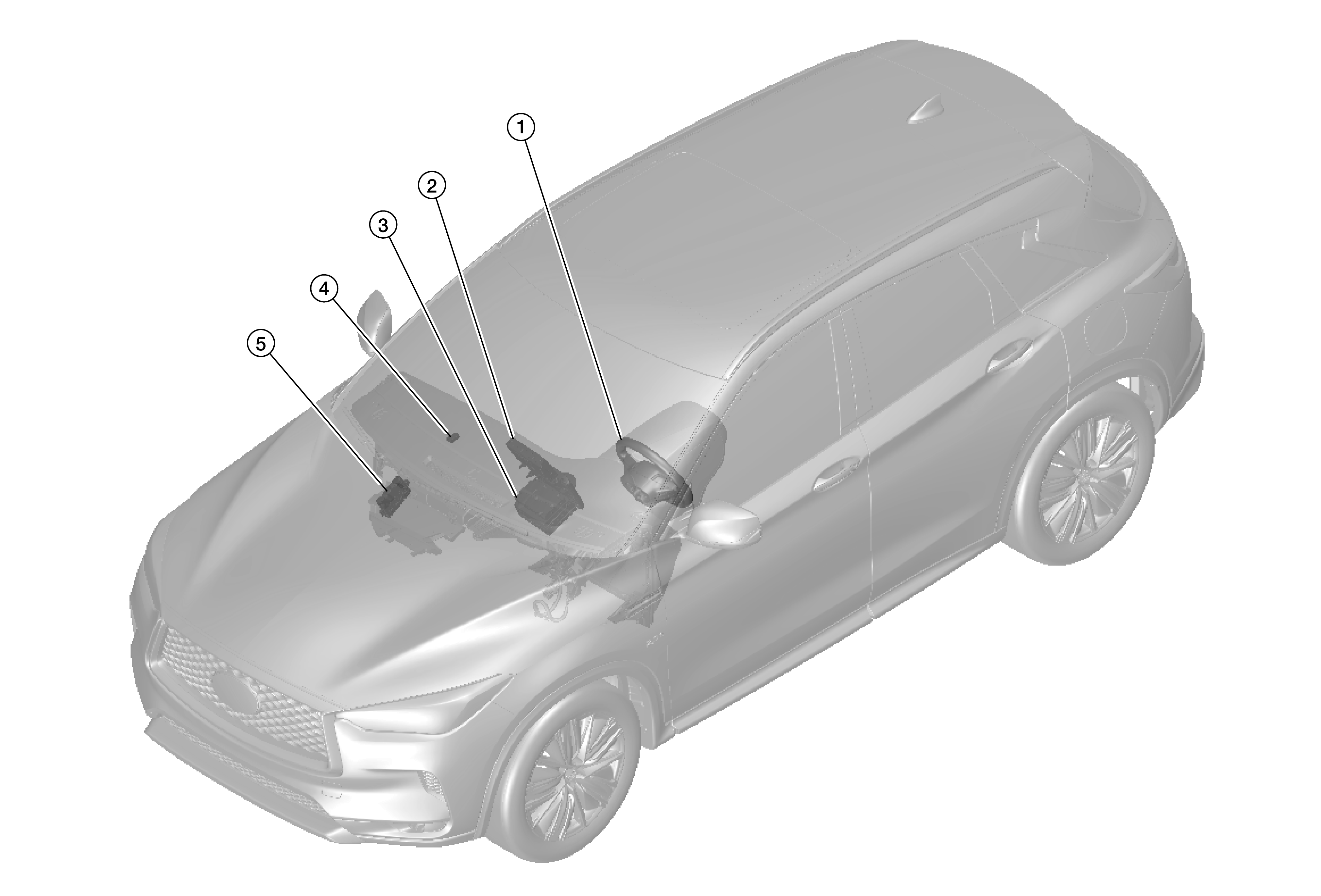

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Heated steering wheel	Heated Steering Wheel
2.	Integral switch	Changes the following settings according to the operation of the display part: Heated steering wheel function ON/OFF Heated steering wheel AUTO function ON/OFF Transmits the following signals to AV control unit via communication line: Heated steering wheel signal Heated steering wheel auto signal Refer to Component Location for detailed component location.
3.	AV control unit	Transmits the following signals received from integral switch to AC auto amp. via CAN communication: Heated steering wheel signal Heated steering wheel auto signal Refer to Component Location for detailed component location.
4.	Heated steering wheel relay	Heated Steering Wheel Relay
5.	A/C auto amp.	For the function, refer to A/C Auto Amp. Refer to Component Location for detailed component location.
