Exploded View

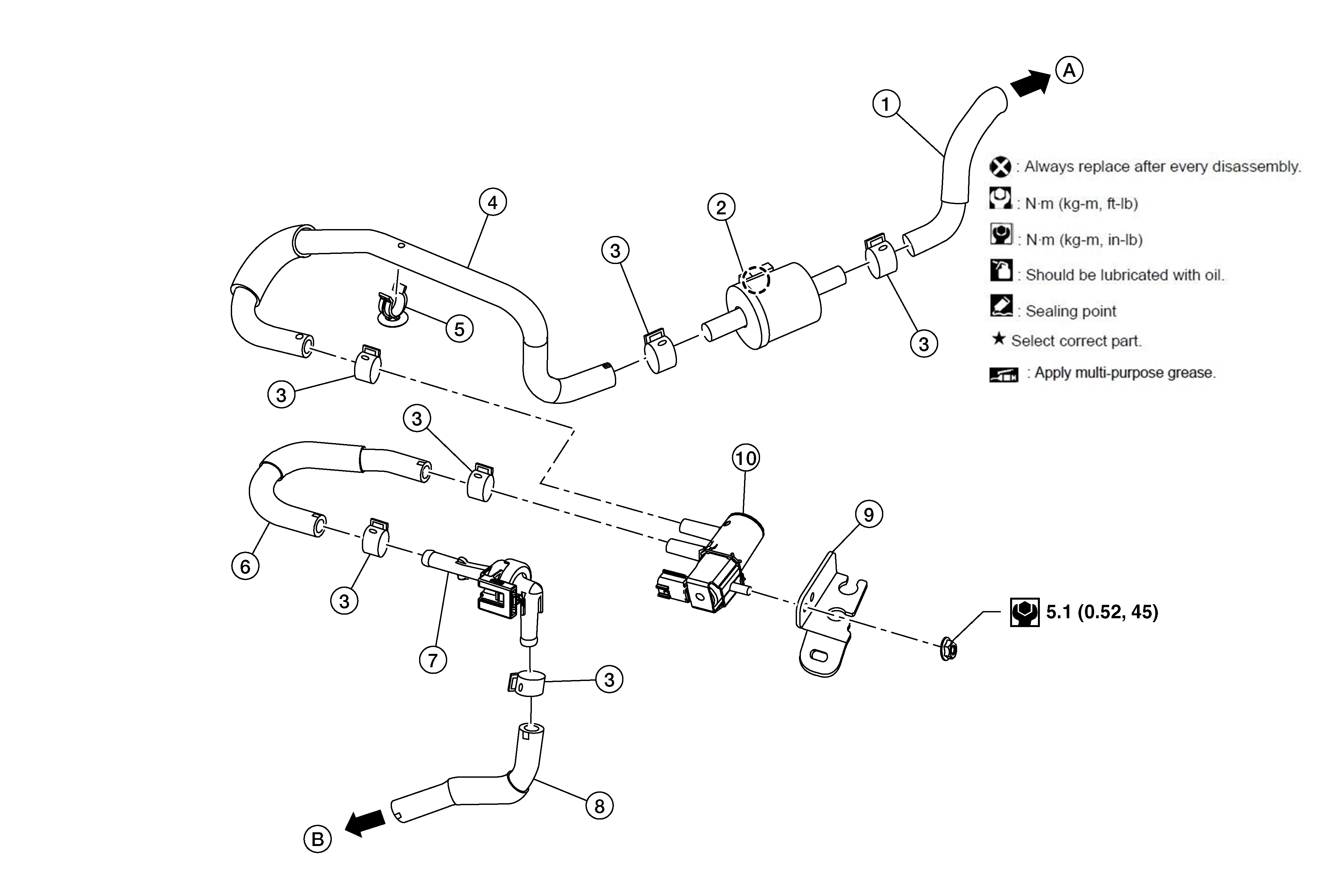

Fig 1: EVAP Canister Purge Volume Control Solenoid Valve With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP hose A	2.	Vacuum delay hose valve connector	3.	Clamp
4.	EVAP hose B	5.	EVAP hose B clip	6.	EVAP hose C
7.	EVAP check valve	8.	EVAP hose D	9.	EVAP canister purge volume control solenoid valve bracket
10.	EVAP canister purge volume control solenoid valve	A.	To EVAP canister. Refer to Exploded View .	B.	To intake manifold fitting. Refer to Exploded View .
