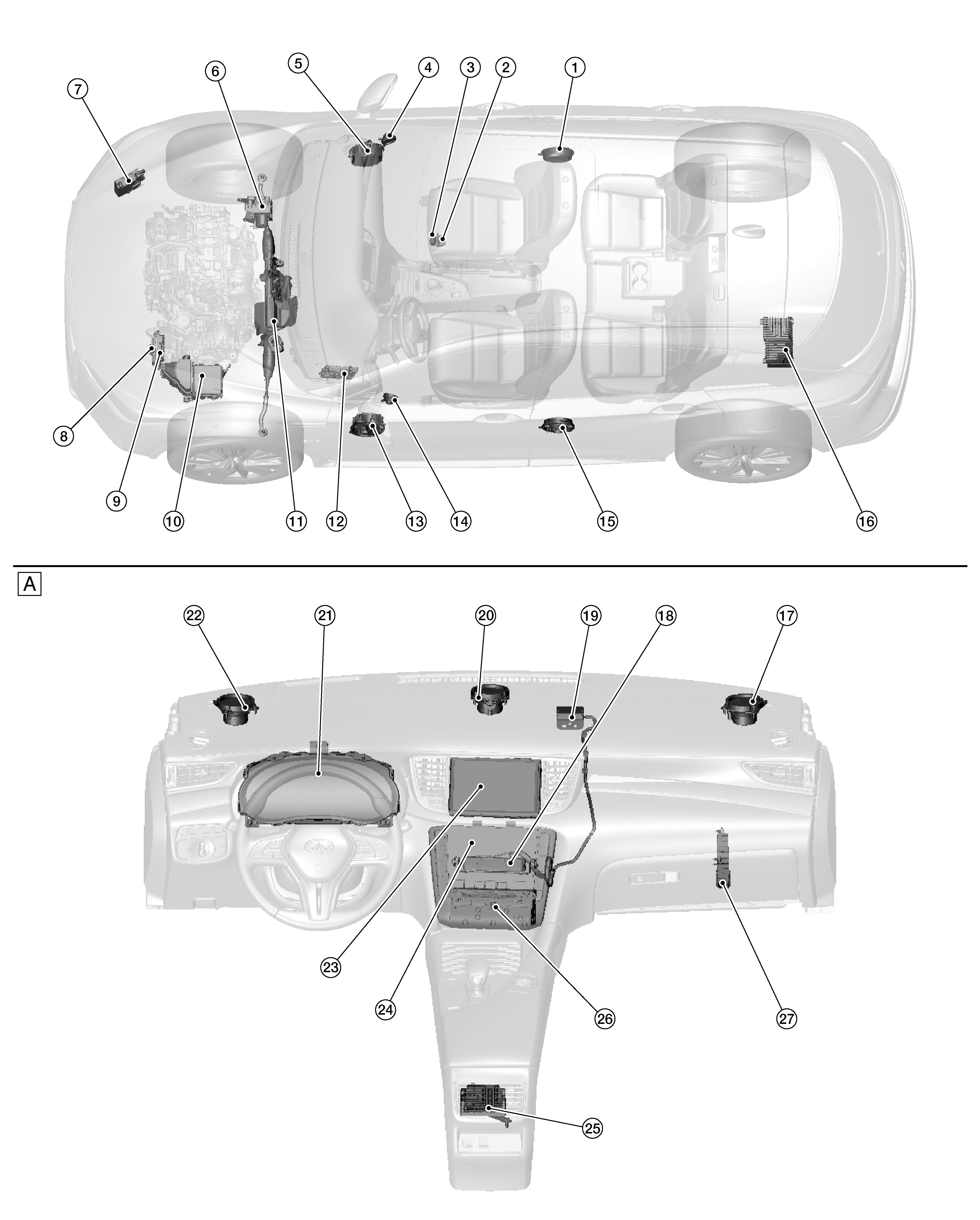

Component Location
|
No. |
Part name |
Description |
|
1. |
Rear door speaker RH |
Refer to Speakers . |
|
2. |
Telematics switch |
Refer to Telematics Switch . |
|
3. |
Microphone |
Refer to Microphone . |
|
4. |
Front door speaker RH upper |
Refer to Speakers . |
|
5 |
Front door speaker RH lower |
|
|
6. |
ABS actuator and electric unit (control unit) |
|
|
7. |
Steering angle main control module (with direct adaptive steering) |
Refer to Steering Angle Main Control Module . |
|
8. |
TCM (Transmission Control Module) |
Refer to TCM . |
|
9. |
ECM (Engine Control Module) |
Refer to ECM . |
|
10. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Refer to Component Location . |
|
11. |
EPS control unit (with electronically controlled power steering) |
Refer to Component Location . |
|
12. |
BCM (Body Control Module) |
Refer to Component Location . |
|
13. |
Front door speaker LH lower |
Refer to Speakers . |
|
14. |
Front door speaker LH upper |
|
|
15. |
Rear door speaker LH |
|
|
16. |
Bose speaker amp. (If equipped) |
Refer to Bose Speaker Amp. . |
|
17. |
Instrument panel speaker RH |
Refer to Speakers . |
|
18. |
TCU |
Refer to TCU . |
|
19. |
Telematics antenna |
Refer to Telematics Antenna . |
|
20. |
Center speaker |
Refer to Speakers . |
|
21. |
Combination meter |
Refer to Combination Meter . |
|
22. |
Instrument panel speaker LH |
Refer to Speakers . |
|
23. |
Display unit |
Refer to Display Unit . |
|
24. |
Integral switch |
Refer to Integral Switch . |
|
25. |
Air bag diagnosis sensor unit |
Refer to Air Bag Diagnosis Sensor Unit . |
|
26. |
AV control unit |
Refer to AV Control Unit . |
|
27. |
A/C auto amp. |
Refer to A/C Auto Amp. . |
