Heated Steering Wheel

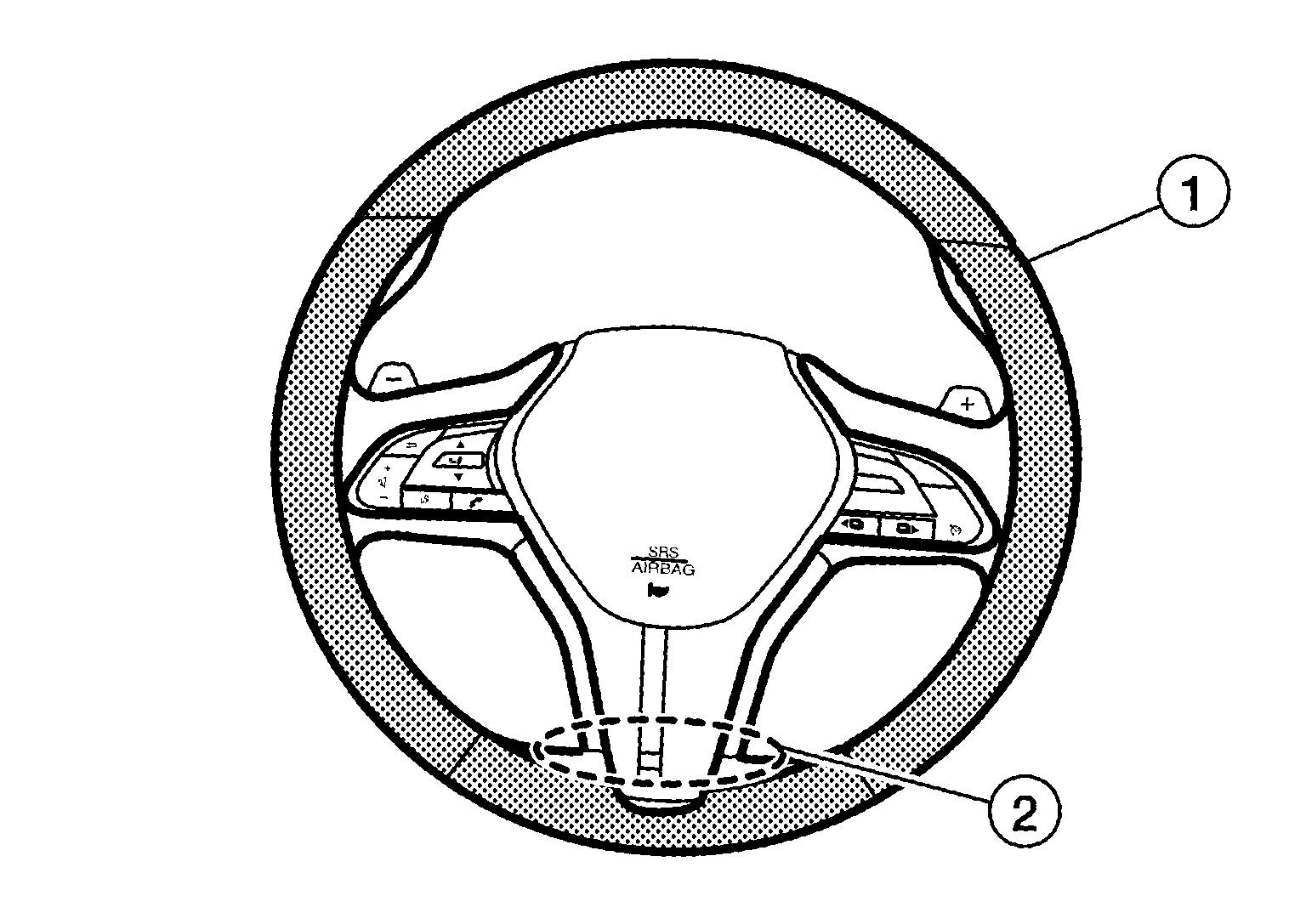

With the power supply from the heated steering wheel relay, the heated steering wheel controls temperature through the heating element 1 and thermostat 2 built into the steering wheel.

Courtesy of NISSAN NORTH AMERICA, INC.

• Heating element: Generates heat by energization.
  NOTE: Heating element is located at the back of the steering wheel leather surface.
• Thermostat: Turns ON/OFF power supply according to the specified temperature.
