Disassembly and Assembly: Disassembly

  1. Remove center console assembly. Refer to Removal and Installation .

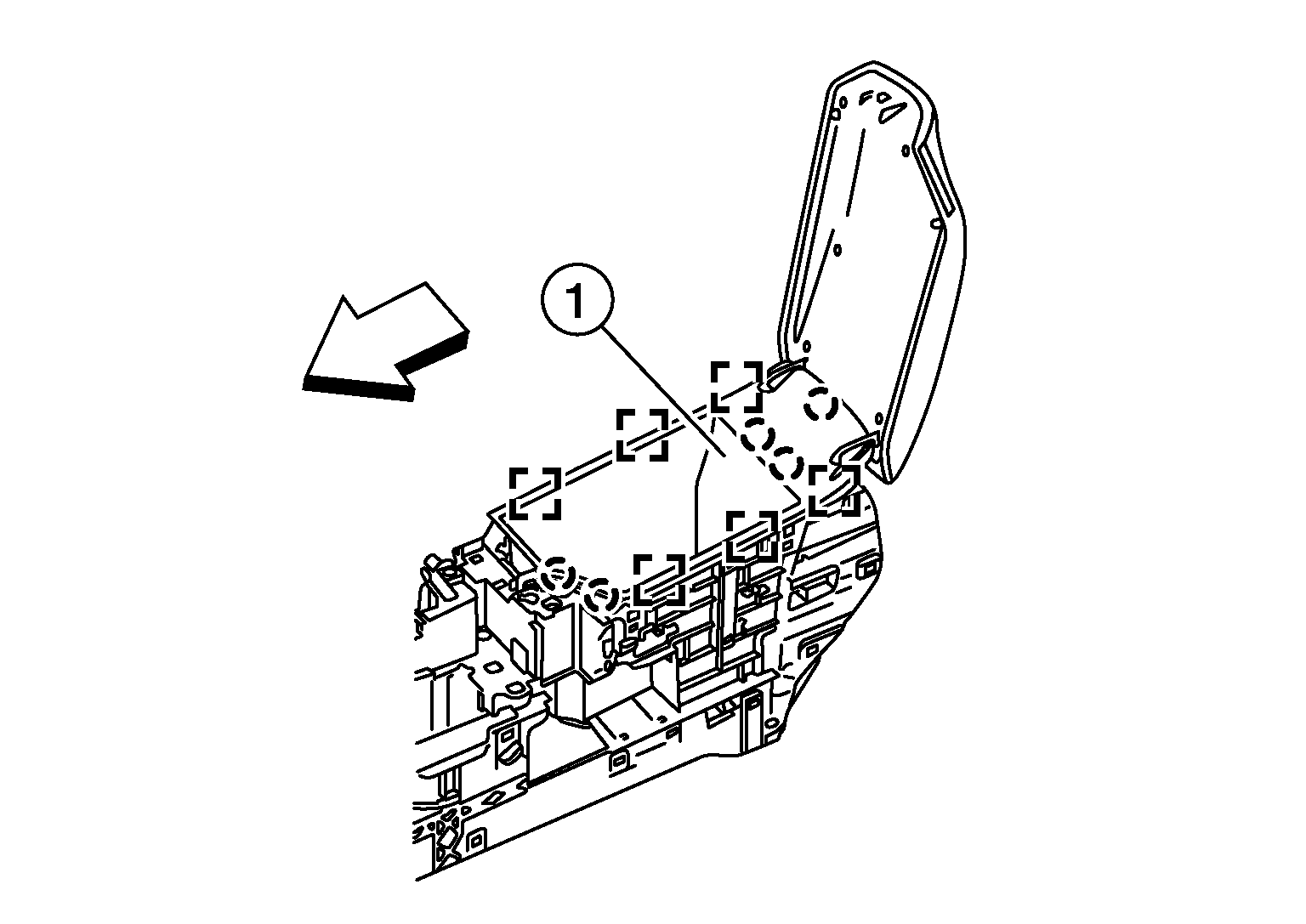

  2. Using a suitable tool, release clips and pawls and remove center console bin (1).
    GNSAWJIA0154Z-154Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl

    SYMBOL

    : Front
  3. Remove front USB charge port from the center console bin (if necessary). Refer to Removal and Installation .
