Exploded View

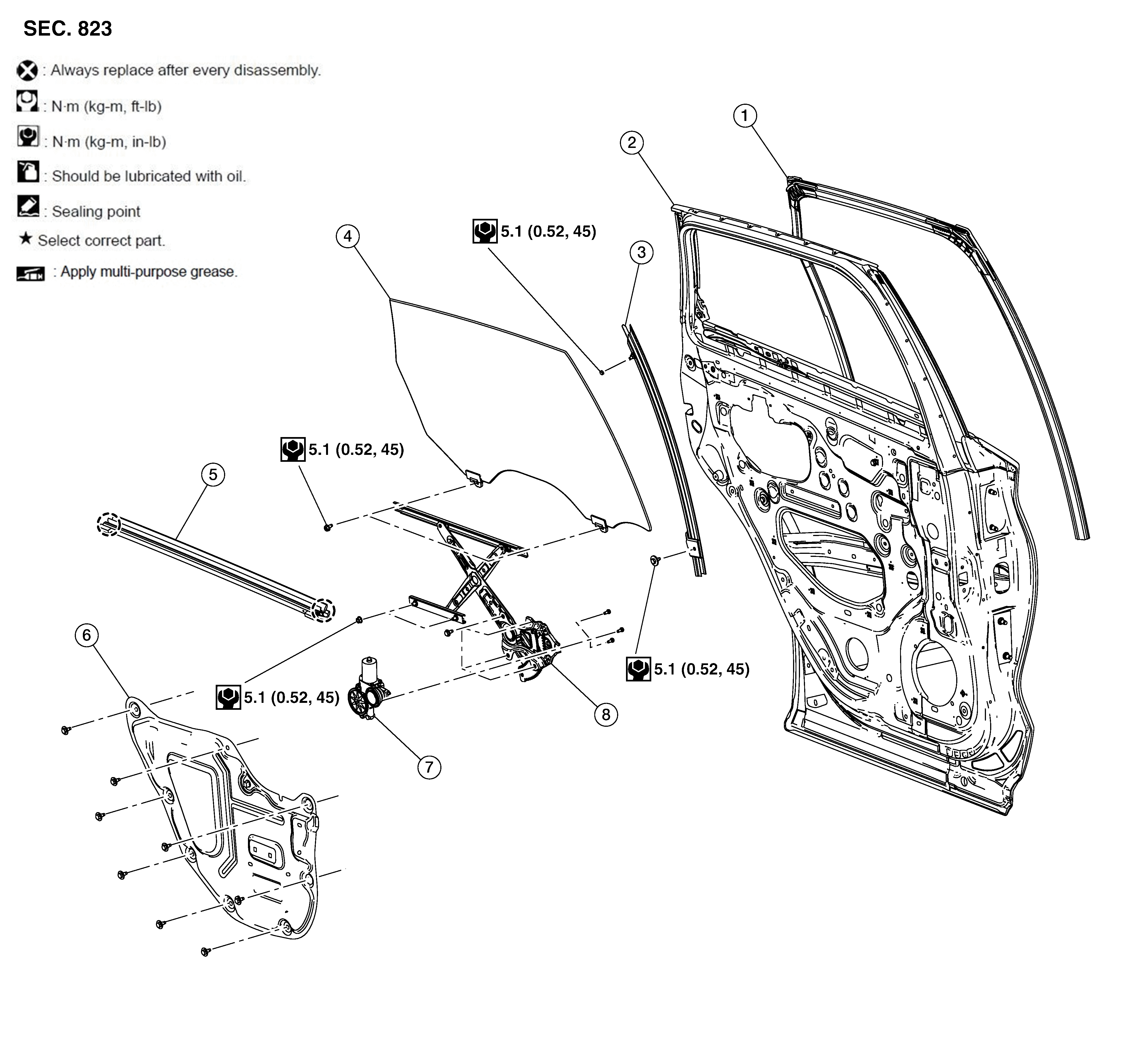

Fig 1: Rear Door Components With Torque Specifications
GNSALKIA0292Z-292Courtesy of NISSAN NORTH AMERICA, INC.

1.

Door glass run rubber

2.

Door panel

3.

Door glass rear run channel

4.

Door glass

5.

Door inside seal

6.

Vapor barrier

7.

Rear power window motor

8.

Door glass regulator
