System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition

Display on ICC system display

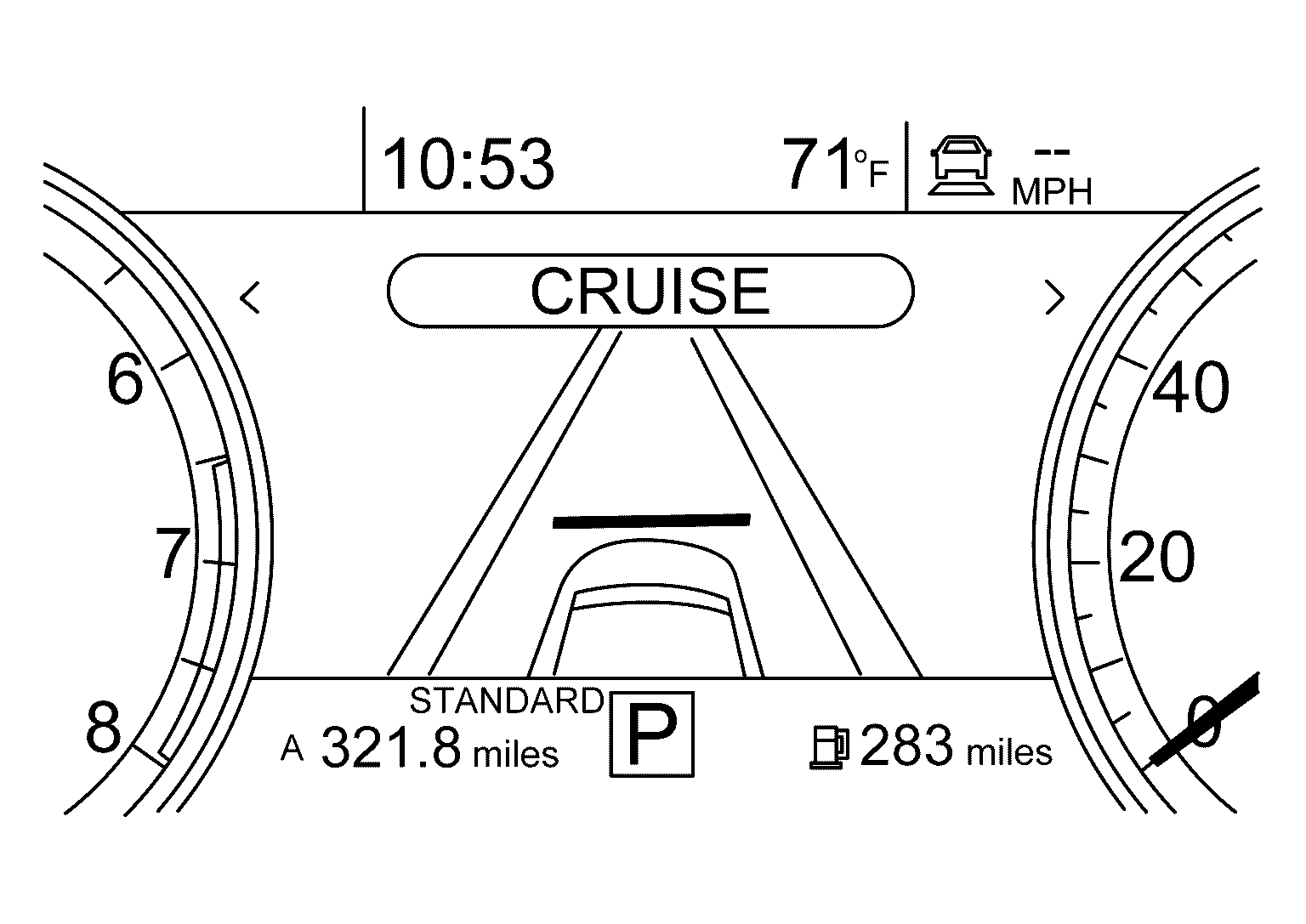

Standby mode

GNSILL0311875-875Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

Without a vehicle ahead

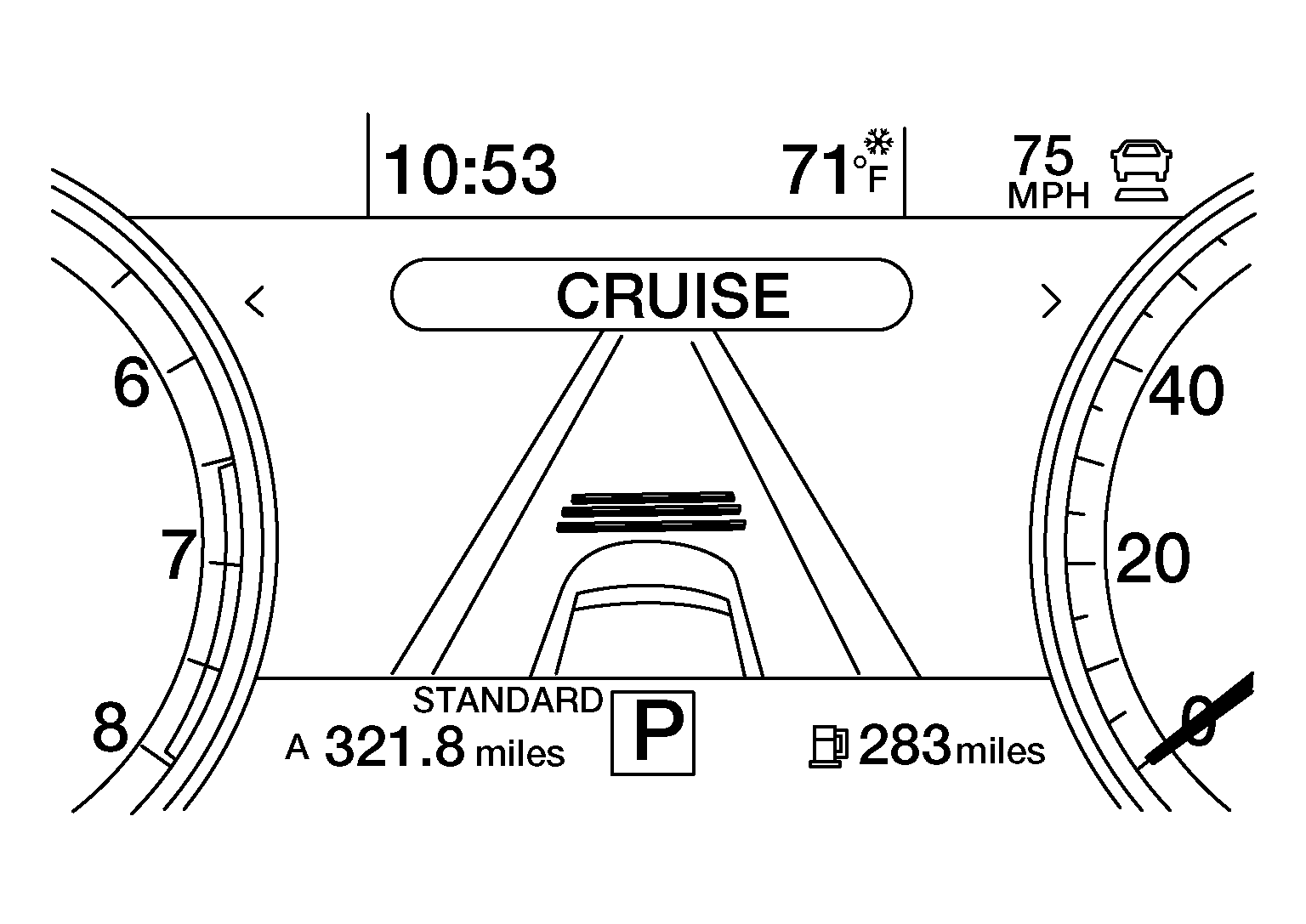

Set vehicle distance (Long)

GNSALOIA0045Z-045Courtesy of NISSAN NORTH AMERICA, INC.

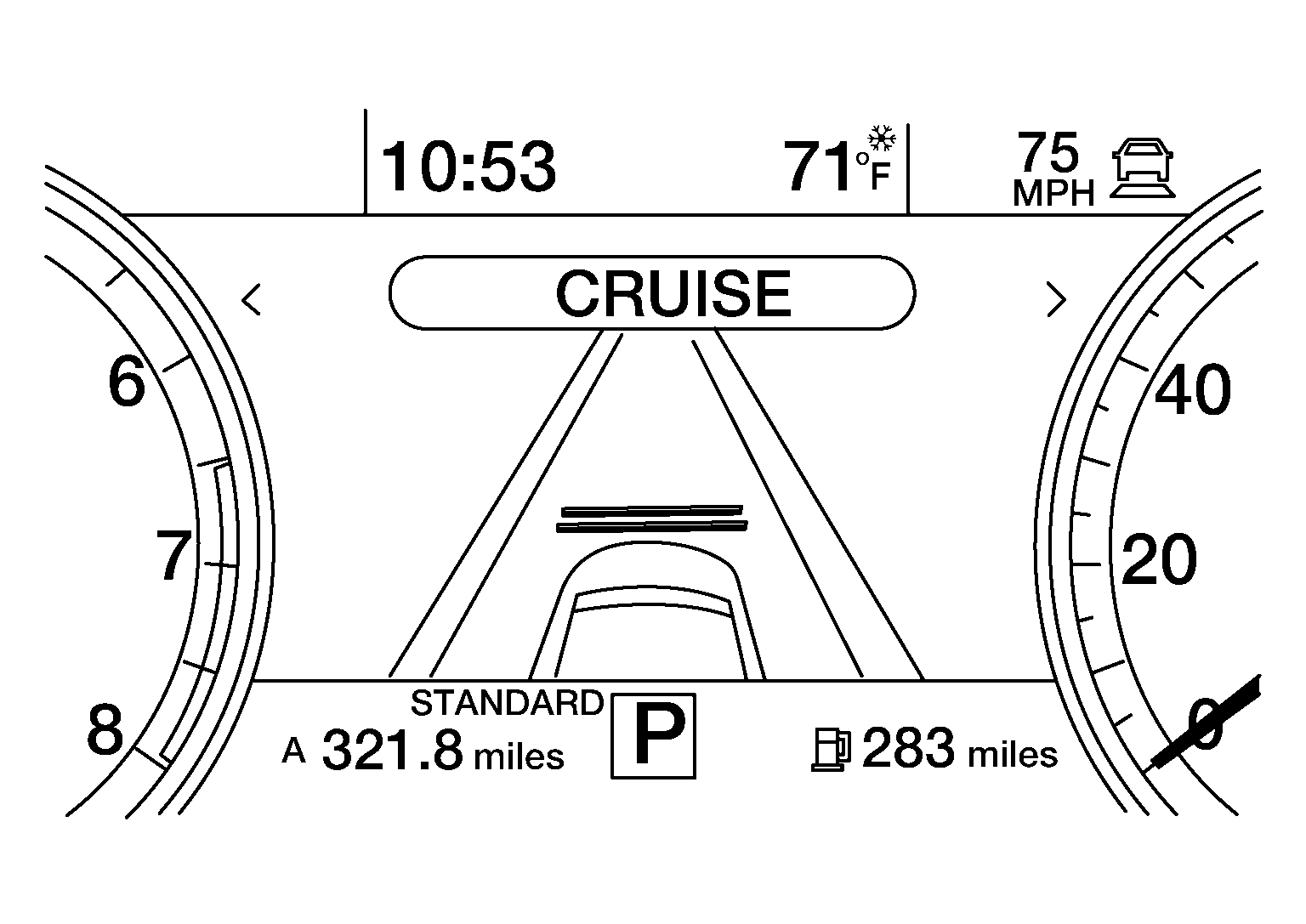

Set vehicle distance (Middle)

GNSALOIA0046Z-046Courtesy of NISSAN NORTH AMERICA, INC.

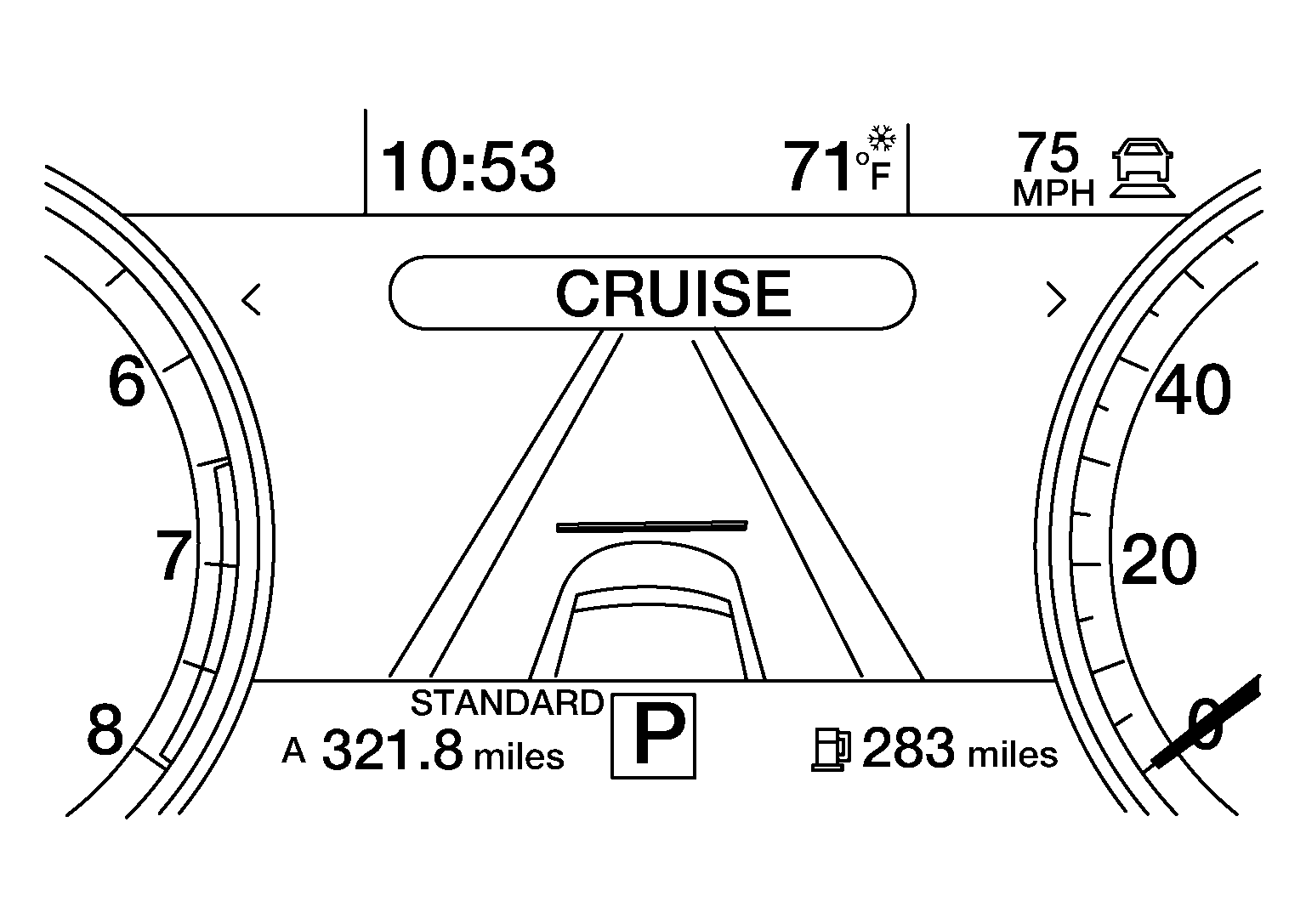

Set vehicle distance (Short)

GNSALOIA0047Z-047Courtesy of NISSAN NORTH AMERICA, INC.

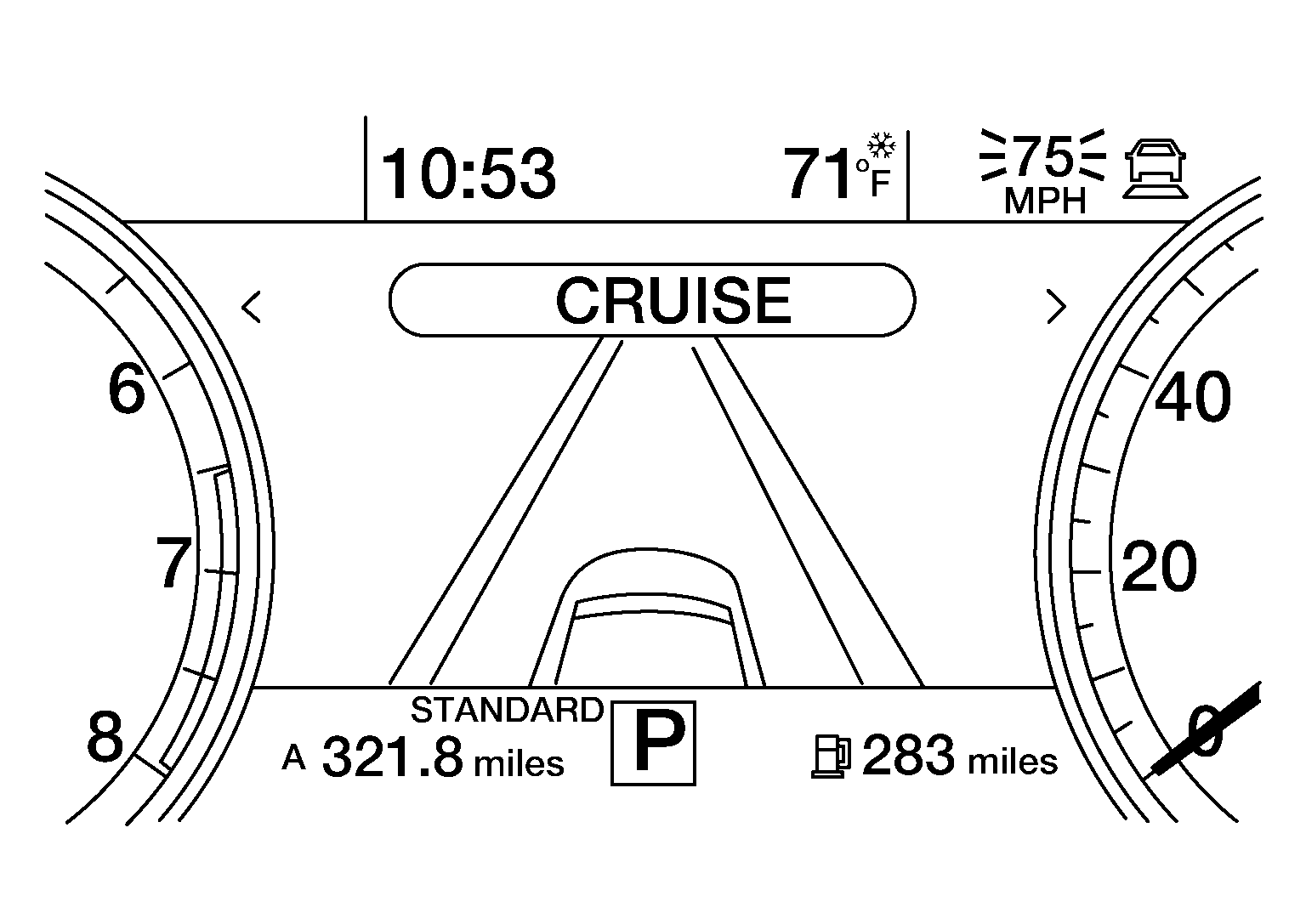

When the vehicle speed exceeds the set speed

GNSALOIA0048Z-048Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

With a vehicle ahead

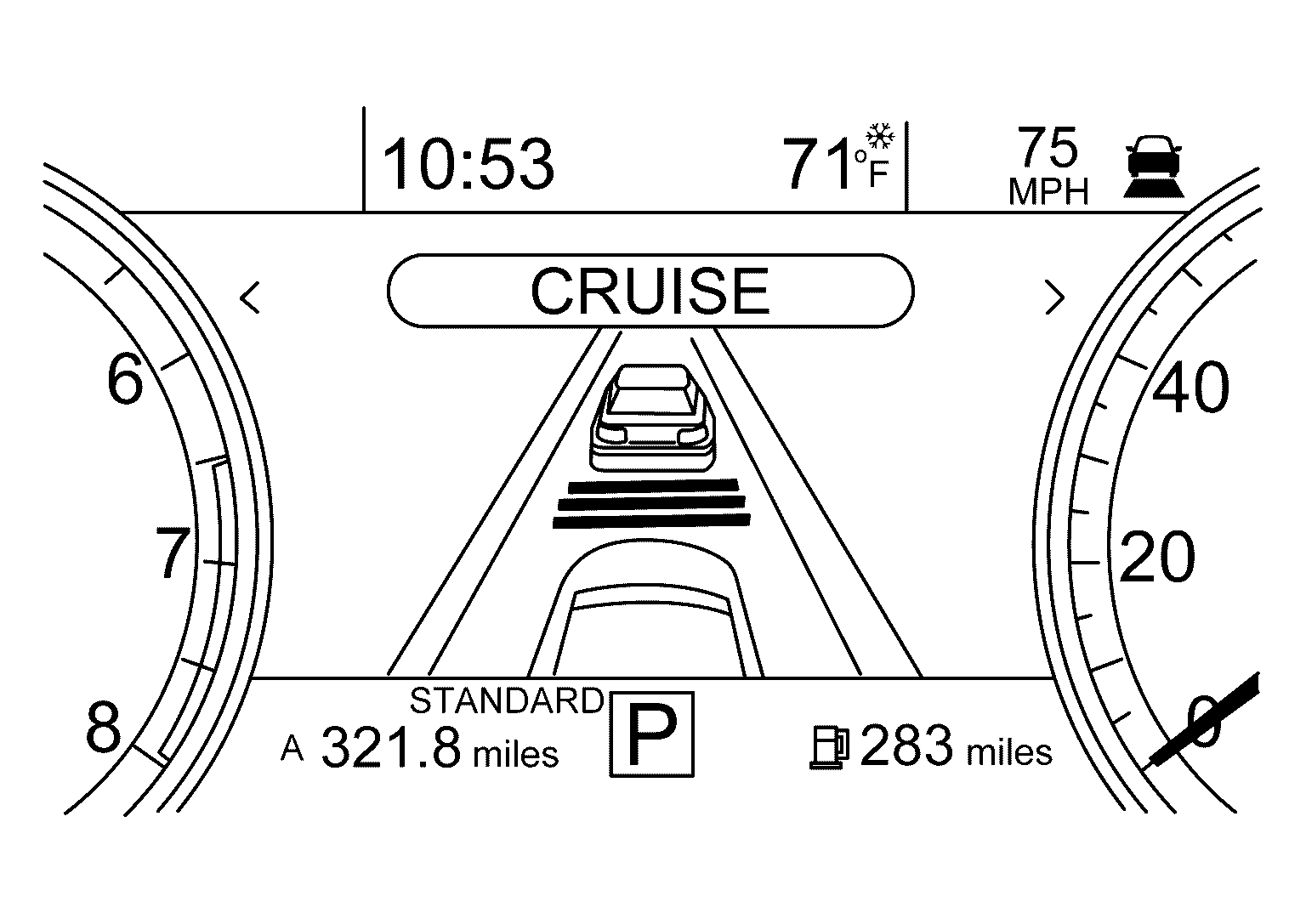

Set vehicle distance (Long)

GNSILL0311876-876Courtesy of NISSAN NORTH AMERICA, INC.

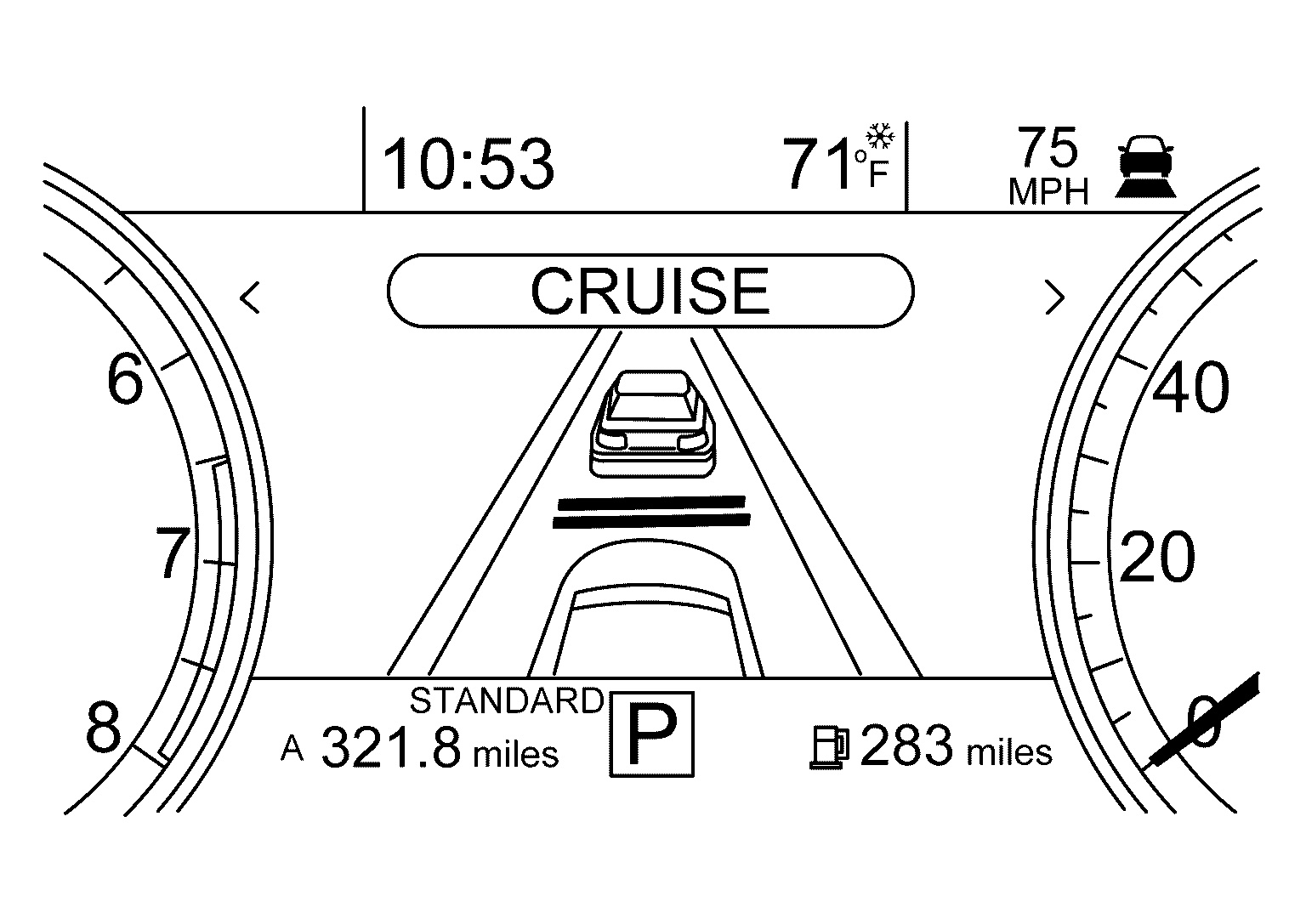

Set vehicle distance (Middle)

GNSILL0311877-877Courtesy of NISSAN NORTH AMERICA, INC.

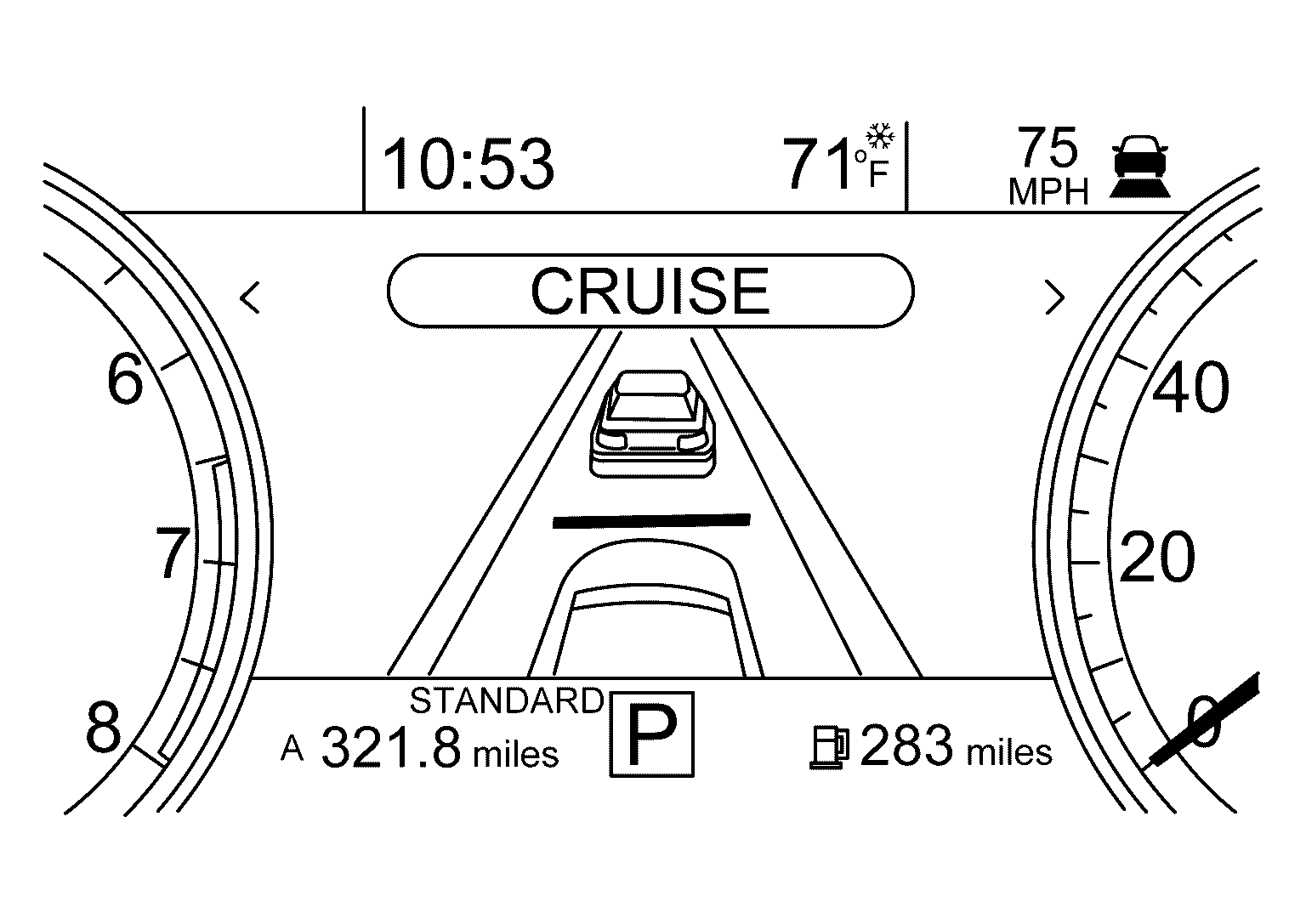

Set vehicle distance (Short)

GNSILL0311878-878Courtesy of NISSAN NORTH AMERICA, INC.

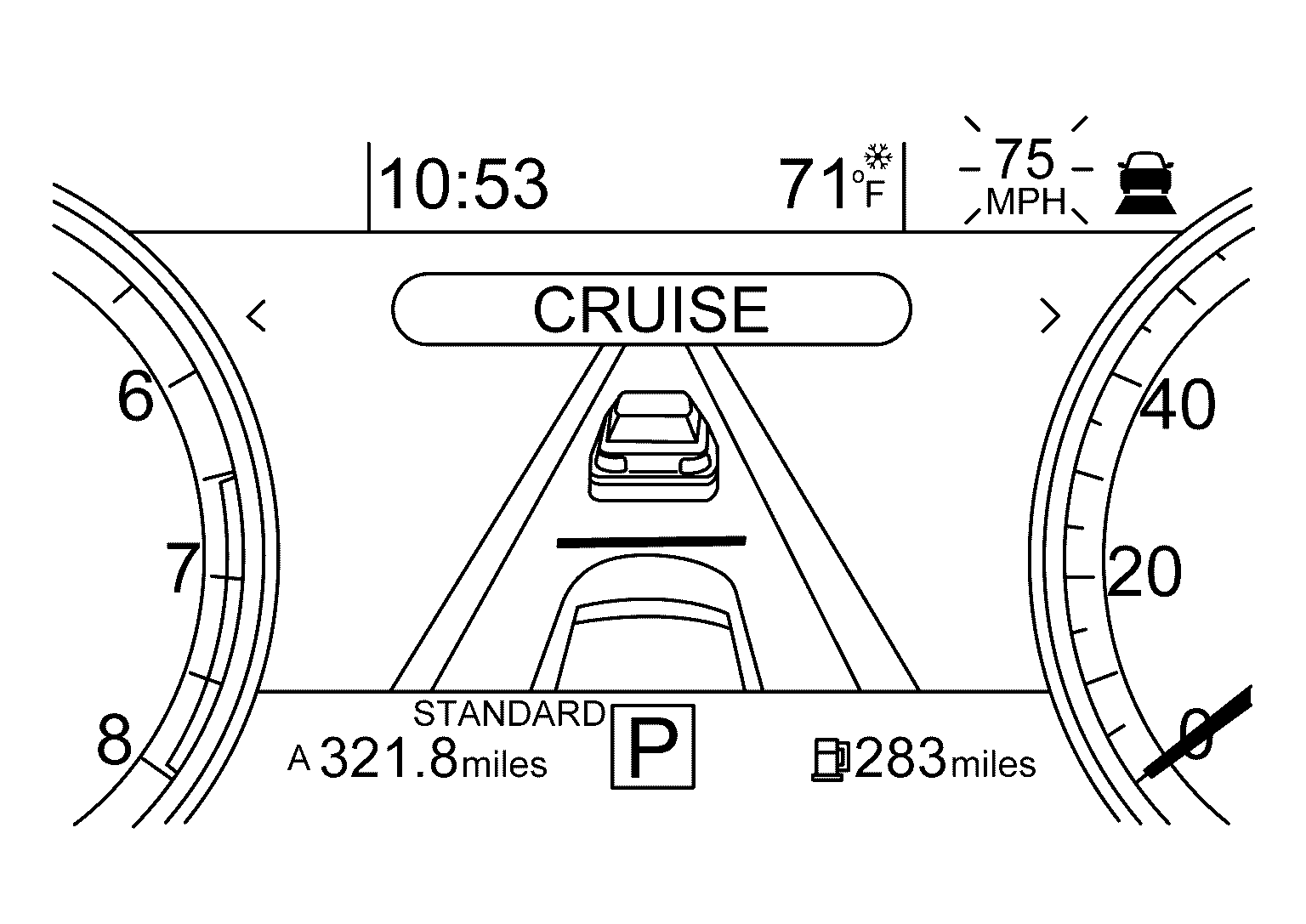

When the vehicle speed exceeds the set speed

GNSILL0311879-879Courtesy of NISSAN NORTH AMERICA, INC.
