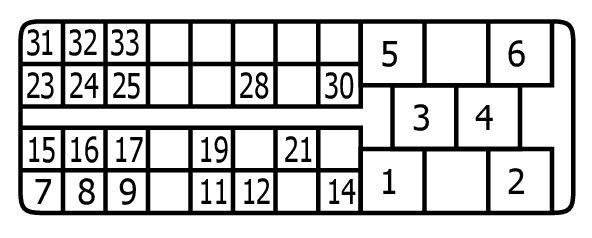

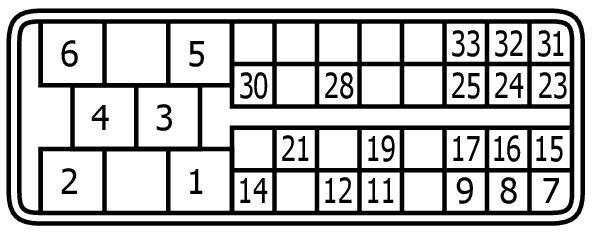

Electric Intake Valve Timing Control Module Connector End View (E153)
Connector Types: AAA32FB-AHY8-LV-RH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | W | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1 PHASE 1 |
| 2 | B | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2 PHASE 1 |
| 3 | R | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1 PHASE 2 |
| 4 | W | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2 PHASE 2 |
| 5 | B | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1 PHASE 3 |
| 6 | R | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2 PHASE 3 |
| 7 | Y | SENSOR POWER SUPPLY |
| 8 | W | HALLSENSOR 1 [ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1] |
| 9 | BG | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1 TEMPERATURE SENSOR |
| 11 | B | SHIELD |
| 12 | L | ENGINE COMMUNICATION LINE-H |
| 14 | Y | INTAKE CAMSHAFT POSITION SENSOR (BANK1) [ELECTRIC INTAKE VALVE TIMING CONTROL SIGNAL] |
| 15 | G | HALLSENSOR 3 [ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1] |
| 16 | R | HALLSENSOR 2 [ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 1] |
| 17 | B | SENSOR GROUND |
| 19 | Y | ENGINE COMMUNICATION LINE-L |
| 21 | L | INTAKE CAMSHAFT POSITION SENSOR (BANK2) [ELECTRIC INTAKE VALVE TIMING CONTROL SIGNAL] |
| 23 | LG | HALLSENSOR 3 [ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2] |
| 24 | BR | HALLSENSOR 2 [ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2] |
| 25 | V | SENSOR GROUND |
| 28 | W | IGNITION SWITCH |
| 30 | G | CRANKSHAFT POSITION SENSOR [ELECTRIC INTAKE VALVE TIMING CONTROL SIGNAL] |
| 31 | GR | SENSOR POWER SUPPLY |
| 32 | L | HALLSENSOR 1 [ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2] |
| 33 | P | ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR 2 TEMPERATURE SENSOR |
