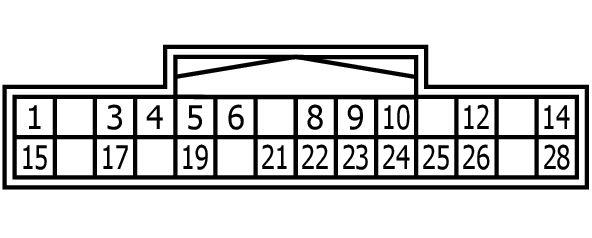

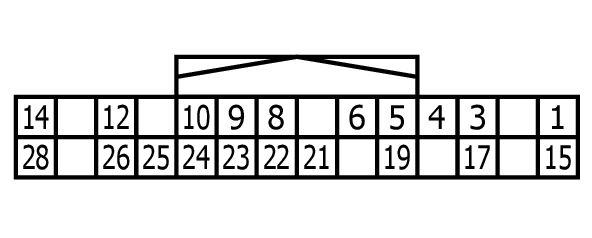

Chassis Control Module Connector End View (E219)
Connector Types: TH28FW
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | LG | ACTUATOR (FL)-L |
| 3 | BR | ACTUATOR (RR)-H |
| 4 | BG | IGNITION POWER SUPPLY |
| 5 | W | CHASSIS COMMUNICATION-L |
| 6 | B | GROUND |
| 8 | BR | CHASSIS COMMUNICATION-H |
| 9 | Y | DRIVE MODE SELECT SW (DOWN) |
| 10 | L | CAN-H |
| 12 | G | ACTUATOR (FR)-H |
| 14 | L | ACTUATOR (RL)-L |
| 15 | Y | ACTUATOR (RR)-L |
| 17 | V | ACTUATOR (FL)-H |
| 19 | L | CHASSIS COMMUNICATION-H |
| 21 | W | CHASSIS COMMUNICATION-L |
| 22 | V | DRIVE MODE SELECT SW (UP) |
| 23 | B | GROUND |
| 24 | R | CAN-L |
| 25 | G | IGNITION POWER SUPPLY |
| 26 | V | ACTUATOR (RL)-H |
| 28 | R | ACTUATOR (FR)-L |
