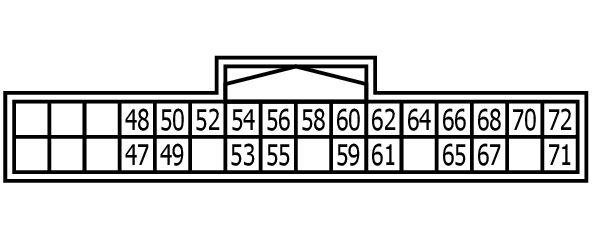

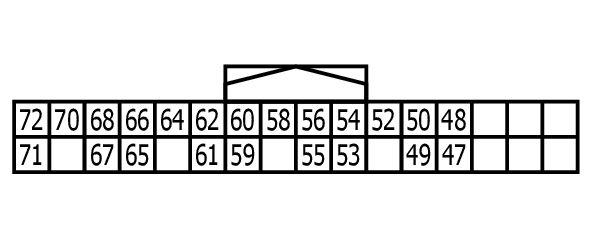

Around View Monitor Control Unit Connector End View (B51)
Connector Types: TH32FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 47 | B | CAMERA IMAGE SIGNAL |
| 48 | SHIELD | CAMERA IMAGE SIGNAL GROUND |
| 49 | W | REAR CAMERA COMMUNICATION SIGNAL |
| 50 | B | REAR CAMERA POWER SUPPLY |
| 52 | R | REAR CAMERA GROUND |
| 53 | G | REAR CAMERA IMAGE SIGNAL (+) |
| 54 | SHIELD | REAR CAMERA IMAGE SIGNAL (-) |
| 55 | GR | SIDE CAMERA DRIVER SIDE COMMUNICATION SIGNAL |
| 56 | V | SIDE CAMERA DRIVER SIDE POWER SUPPLY |
| 58 | P | SIDE CAMERA DRIVER SIDE GROUND |
| 59 | LG | SIDE CAMERA DRIVER SIDE IMAGE SIGNAL (+) |
| 60 | SHIELD | SIDE CAMERA DRIVER SIDE IMAGE SIGNAL (-) |
| 61 | W | SIDE CAMERA PASSENGER SIDE COMMUNICATION SIGNAL |
| 62 | L | SIDE CAMERA PASSENGER SIDE POWER SUPPLY |
| 64 | R | SIDE CAMERA PASSENGER SIDE GROUND |
| 65 | G | SIDE CAMERA PASSENGER SIDE IMAGE SIGNAL (+) |
| 66 | SHIELD | SIDE CAMERA PASSENGER SIDE IMAGE SIGNAL (-) |
| 67 | B | FRONT CAMERA COMMUNICATION SIGNAL |
| 68 | W | FRONT CAMERA POWER SUPPLY |
| 70 | G | FRONT CAMERA GROUND |
| 71 | R | FRONT CAMERA IMAGE SIGNAL (+) |
| 72 | SHIELD | FRONT CAMERA IMAGE SIGNAL (-) |
