Component Description

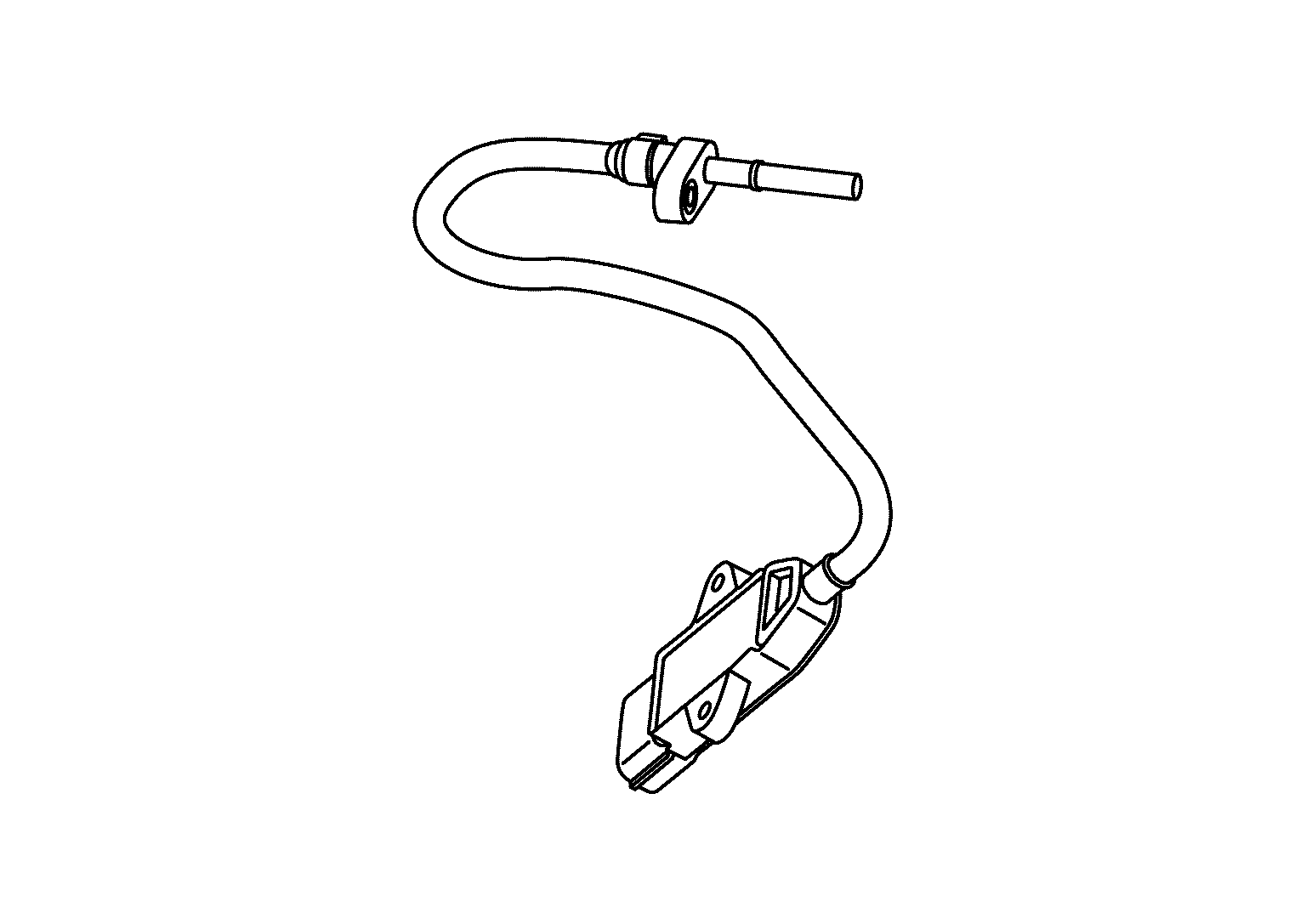

The turbocharger speed sensor is installed to the compressor side of turbocharger and detects revolutions of turbocharger with the compressor wheel blade of turbocharger.

GNSJSBIA9597Z-597Courtesy of NISSAN NORTH AMERICA, INC.

The use of eddy current sensor enables the detection of revolutions of turbocharger at high speed rotation.
