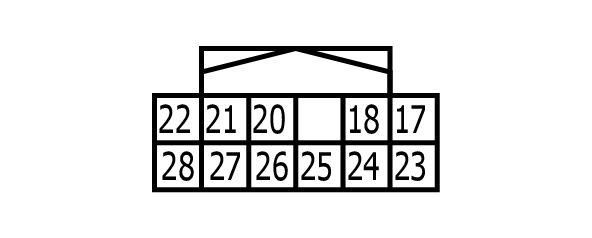

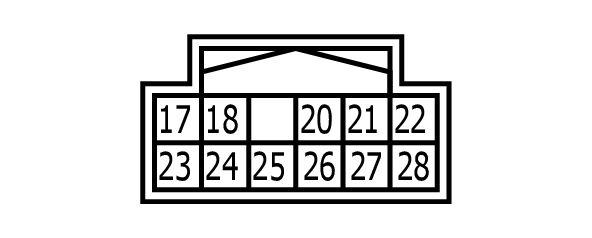

Power Window Main Switch (Door Mirror Remote Control Switch) Connector End View (D55)
Connector Types:
TH12FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 17 |
P |
- |
| 18 |
BG |
- |
| 20 |
SB |
- |
| 21 |
LG |
- |
| 22 |
V |
POWER WINDOW MAIN SWITCH (DOOR MIRROR REMOTE CONTROL SWITCH) POWER SUPPLY |
| 23 |
Y |
- |
| 24 |
GR |
- |
| 25 |
L |
- |
| 26 |
W |
- |
| 27 |
BR |
- |
| 28 |
R |
- |
