Ionizer Connector End View (M136)

Connector Types: JAB03FB

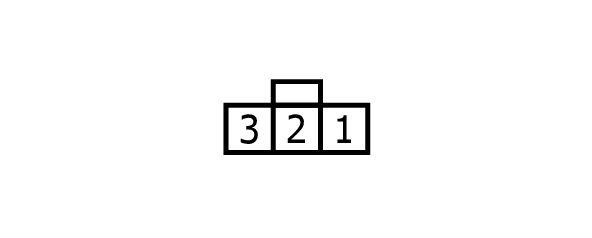

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

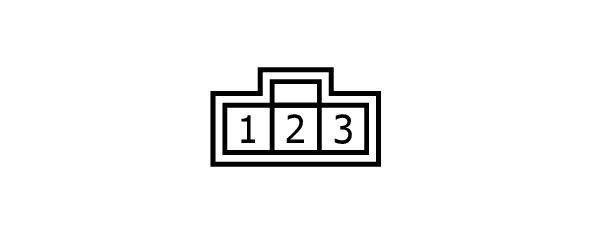

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	IGNITION POWER SUPPLY
2	BG	IONIZER (ON/OFF) CONTROL SIGNAL
3	B	GROUND
