Front Wheel Sensor LH Connector End View (E48)

Connector Types:  RH02FB

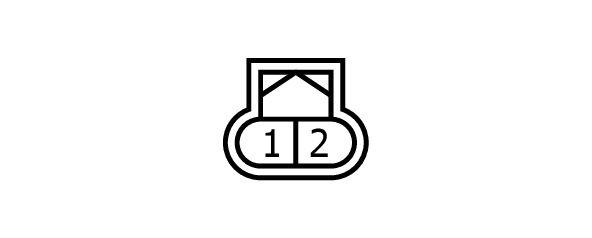

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

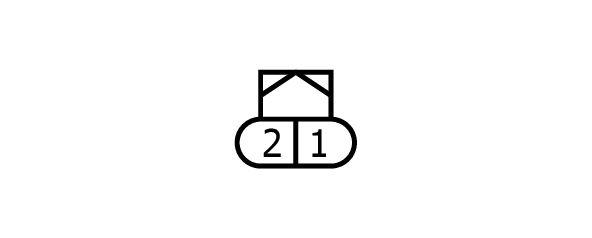

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	SB	FR LH WHEEL SENSOR SIGNAL
2	BG	FR LH WHEEL SENSOR POWER SUPPLY
