Forward Switch Connector End View (B624)

Connector Types:  TK02FW

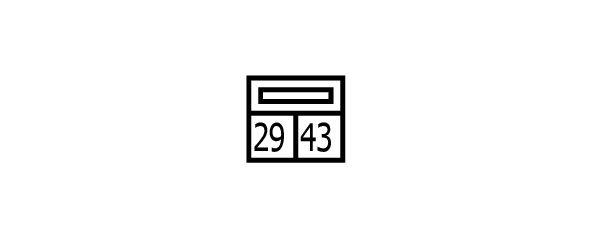

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

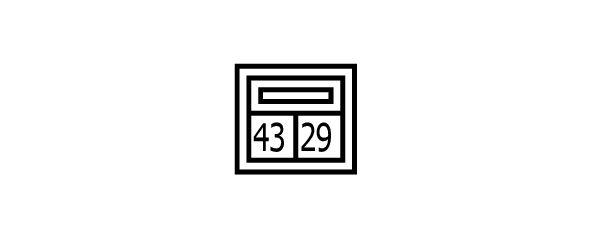

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
29	O	-
43	B	FORWARD SWITCH GROUND
