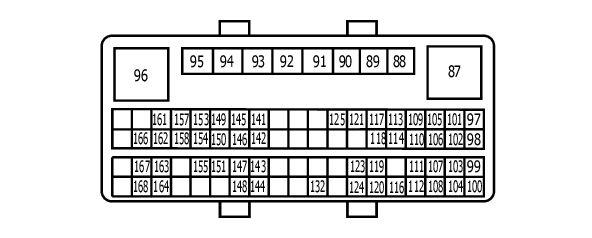

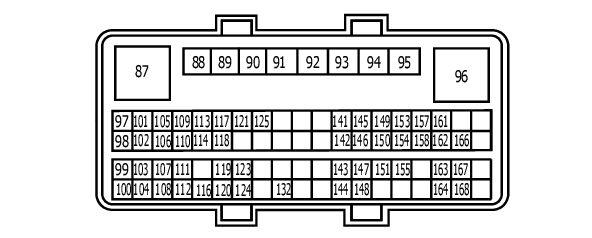

ECM Connector End View (F142)
Connector Types: RH76FGY-RZ8-FHY2-RH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 87 | B | ECM GROUND |
| 88 | B | ECM GROUND |
| 89 | L | ELECTRIC WASTEGATE CONTROL ACTUATOR MOTOR (+) (BANK 2) |
| 90 | G | ELECTRIC WASTEGATE CONTROL ACTUATOR MOTOR (-) (BANK 2) |
| 91 | BG | ELECTRIC WASTEGATE CONTROL ACTUATOR POWER SUPPLY |
| 92 | L | ELECTRIC WASTEGATE CONTROL ACTUATOR MOTOR (+) (BANK 1) |
| 93 | R | ELECTRIC WASTEGATE CONTROL ACTUATOR MOTOR (-) (BANK 1) |
| 94 | W | A/F SENSOR 1 HEATER (BANK 1) |
| 95 | GR | ECM GROUND |
| 96 | R | THROTTLE CONTROL MOTOR POWER SUPPLY |
| 97 | GR | SENSOR GROUND |
| 98 | Y | HEATED OXYGEN SENSOR 2 (BANK 2) |
| 99 | R | SENSOR GROUND |
| 100 | P | SENSOR GROUND |
| 101 | L | A/F SENSOR 1 (BANK 1) |
| 102 | P | A/F SENSOR 1 (BANK 1) |
| 103 | B | A/F SENSOR SHIELD |
| 104 | SB | SENSOR GROUND [THROTTLE POSITION SENSOR1 (BANK 2)] |
| 105 | BR | SENSOR POWER SUPPLY [THROTTLE POSITION SENSOR1 (BANK 2)] |
| 106 | P | THROTTLE POSITION SENSOR1 (BANK 2) |
| 107 | LG | A/F SENSOR 1 (BANK 2) |
| 108 | R | SENSOR POWER SUPPLY |
| 109 | G | SENSOR POWER SUPPLY |
| 110 | W | HEATED OXYGEN SENSOR 2 (BANK 1) |
| 111 | V | A/F SENSOR 1 (BANK 2) |
| 112 | LG | THROTTLE POSITION SENSOR 2 (BANK 2) |
| 113 | Y | MANIFOLD ABSOLUTE PRESSURE SENSOR |
| 114 | G | SENSOR GROUND |
| 116 | L | SENSOR GROUND |
| 117 | LG | CHARGE AIR COOLER COOLING ELECTRIC WATER PUMP 1 |
| 118 | BG | CHARGE AIR COOLER COOLING ELECTRIC WATER PUMP 2 |
| 119 | Y | TURBOCHARGER SPEED SENSOR (BANK 1) |
| 120 | W | TURBOCHARGER SPEED SENSOR (BANK2) |
| 121 | V | PNP SIGNAL |
| 123 | BG | THROTTLE MOTOR RELAY |
| 124 | R | FUEL PUMP RELAY |
| 125 | P | ECM RELAY (SELF SHUT-OFF) |
| 132 | B | SENSOR GROUND |
| 141 | R | MULTI-WAY CONTROL VALVE MOTOR (+) |
| 142 | L | ENGINE OIL PRESSUER CONTROL SOLENOID VALVE |
| 143 | G | CHARGE AIR COOLER COOLING ELECTRIC WATER PUMP 1 |
| 144 | BG | CHARGE AIR COOLER COOLING ELECTRIC WATER PUMP 2 |
| 145 | BG | MULTI-WAY CONTROL VALVE POWER SUPPLY |
| 146 | G | MULTI-WAY CONTROL VALVE MOTOR (-) |
| 147 | W | THROTTLE CONTROL MOTOR (OPEN) (BANK 2) |
| 148 | GR | THROTTLE CONTROL MOTOR (OPEN) (BANK 1) |
| 149 | G | THROTTLE CONTROL MOTOR (CLOSE) (BANK 1) |
| 150 | GR | THROTTLE CONTROL MOTOR (-) (BANK 1) |
| 151 | BR | A/F SENSOR 1 HEATER (BANK 2) |
| 153 | L | IGNITION SIGNAL NO. 3 |
| 154 | SB | IGNITION SIGNAL NO. 6 |
| 155 | GR | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| 157 | W | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE (BANK 1) |
| 158 | G | EXHAUST VALVE TIMING CONTROL SOLENOID VALVE (BANK 2) |
| 161 | Y | IGNITION SIGNAL NO. 1 |
| 162 | GR | IGNITION SIGNAL NO. 4 |
| 163 | SB | HEATED OXYGEN SENSOR HEATER 2 (BANK 2) |
| 164 | G | IGNITION SIGNAL NO. 2 |
| 166 | L | HEATED OXYGEN SENSOR HEATER 2 (BANK 1) |
| 167 | BR | LIN |
| 168 | V | IGNITION SIGNAL NO. 5 |
